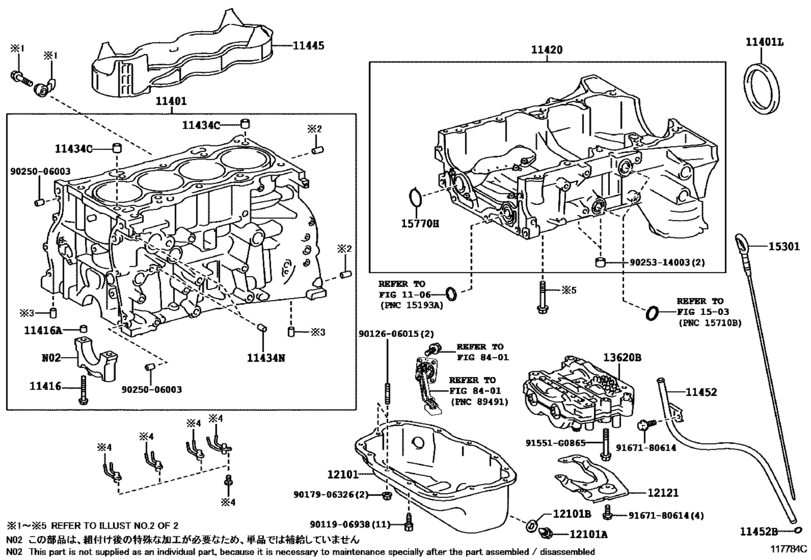

Cylinder Block ([01.2013 - ] (1301- )2ARFSE..AWS210) Diagram Toyota CROWN/ MAJESTA
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- AWS210
- grade
- ROY
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- Model
- CROWN HYBRID
- From
- 01.2013
- No.of Doors
- 4D
- Vehicle Model
- Crown Hybrid
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11410-39145 Block Sub-Assy, Cylinder[01.2013 - 12.2013] 2ARFSE..AWS210 |
11410-39145 |
US $2,446.08 |
||
| replacement | |||||
|
11401
|
11401
11410-39146 Block Sub-Assy, Cylinder[01.2013 - 12.2013] 2ARFSE..AWS210 |
11410-39146 |
US $2,213.12 |
||
|
11401
|
11401
11410-39146 Block Sub-Assy, Cylinder[12.2013 - 09.2015] 2ARFSE..AWS21# |
11410-39146 |
US $2,213.12 |
||
|
11401L
|
11401L
90311-89006
Seal, Engine Rear Oil
[01.2013 - 09.2013] 2ARFSE..AWS210 |
90311-89006 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89015 Seal, Engine Rear Oil[01.2013 - 09.2013] 2ARFSE..AWS210 |
90311-89015 |
from US $20.05 |
||
|
11401L
|
11401L
90311-89013
Seal, Engine Rear Oil
[09.2013 - 08.2014] 2ARFSE..AWS21# |
90311-89013 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89015 Seal, Engine Rear Oil[09.2013 - 08.2014] 2ARFSE..AWS21# |
90311-89015 |
from US $20.05 |
||
|
11401L
|
11401L
90311-89015 Seal, Engine Rear Oil[09.2014 - 09.2015] 2ARFSE..AWS21# |
90311-89015 |
from US $20.05 |
||
|
11416
|
11416
90910-02173 Bolt(For Crankshaft Bearing Cap Set)[01.2013 - 09.2015] 2ARFSE..AWS21# |
90910-02173 |
US $4.30 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[01.2013 - 09.2015] 2ARFSE..AWS21# |
90253-13017 |
from US $1.35 |
||
|
11420
|
11420
11420-36030 Crankcase Assy, Stiffening[01.2013 - 09.2015] 2ARFSE..AWS210 |
11420-36030 |
US $451.36 |
||
|
11434C
|
11434C
90253-15001 Pin, Straight(For Clutch Housing Set)[01.2013 - 09.2015] 2ARFSE..AWS21# 長さ＝１４，外径＝１５ |
90253-15001 |
from US $1.07 |
||
|
11434N
|
11434N
90250-06003 Pin, Straight[01.2013 - 09.2015] 2ARFSE..AWS21# |
90250-06003 |
US $1.61 |
||
|
11445
|
11445
11445-36010 Spacer, Cylinder Block Water Jacket[01.2013 - 09.2015] 2ARFSE..AWS21# |
11445-36010 |
US $22.19 |
||
|
11452
|
11452
11452-36030 Guide, Oil Level Gage[01.2013 - 09.2015] 2ARFSE..AWS210 |
11452-36030 |
US $22.42 |
||
|
11452B
|
11452B
96741-19010 Ring, O(For Oil Level Gage Guide)[01.2013 - 09.2015] 2ARFSE..AWS21# |
96741-19010 |
from US $2.20 |
||
|
12101
|
12101
12101-36060 Pan Sub-Assy, Oil[01.2013 - 09.2015] 2ARFSE..AWS210 |
12101-36060 |
US $148.51 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.2013 - 09.2015] 2ARFSE..AWS21# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[01.2013 - 09.2015] 2ARFSE..AWS21# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.2013 - 09.2015] 2ARFSE..AWS21# |
90430-12031 |
from US $0.84 |
||
|
12121
|
12121
12121-36040 Plate, Oil Pan Baffle, No.1[01.2013 - 09.2015] 2ARFSE..AWS210 |
12121-36040 |
US $17.76 |
||
|
13620B
|
13620B
13620-36030 Balancer Assy, Engine[01.2013 - 09.2015] 2ARFSE..AWS210 |
13620-36030 |
US $420.78 |
||
|
15301
|
15301
15301-36040 Gage Sub-Assy, Oil Level[01.2013 - 12.2013] 2ARFSE..AWS210 |
15301-36040 |
US $11.07 |
||
| replacement | |||||
|
15301
|
15301
15301-36041 Gage Sub-Assy, Oil Level[01.2013 - 12.2013] 2ARFSE..AWS210 |
15301-36041 |
US $9.49 |
||
|
15301
|
15301
15301-36041 Gage Sub-Assy, Oil Level[01.2014 - 09.2015] 2ARFSE..AWS21# |
15301-36041 |
US $9.49 |
||
|
15770H
|
15770H
15157-36010 Gasket(For Oil Pipe)[01.2013 - 09.2015] 2ARFSE..AWS210 |
15157-36010 |
US $4.51 |
||
|
91551G0865
|
91551G0865
91551-G0865 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
91551-G0865 |
US $1.79 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.64 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.23 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
||
|
9025314003
|
9025314003
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set) |
90253-14003 |
from US $1.31 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
