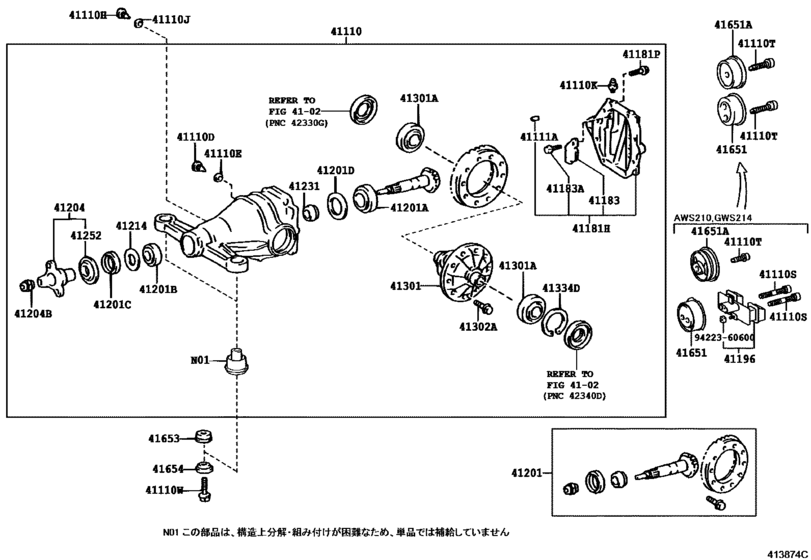

Rear Axle Housing & Differential ([12.2012 - ] (1212- )ARS210,AWS21#,GRS214,GWS214) Diagram Toyota CROWN/ MAJESTA
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- AWS210
- grade
- ROY
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- Model
- CROWN HYBRID
- From
- 01.2013
- No.of Doors
- 4D
- Vehicle Model
- Crown Hybrid
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110
|
41110
41110-30B60 Carrier Assy, Differential, Rear[01.2013 - 09.2015] AWS21# ＊ＦＧＲ＝４７：１６＝２．９３７ |
41110-30B60 |
US $2,052.96 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
90341-18035 |
from US $3.40 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
12157-10010 |
from US $0.74 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
12157-10010 |
from US $0.74 |
||
|
41110K
|
41110K
90930-03077 Plug, Breather (For Automatic Transmission Case)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
90930-03077 |
US $8.06 |
||
|
41110S
|
41110S
90110-14008 Bolt, No.2 (For Rear Differential Carrier Set)[01.2013 - 09.2015] AWS21#,GWS214 |
90110-14008 |
US $5.56 |
||
|
41110T
|
41110T
90110-14007 Bolt, No.1 (For Rear Differential Carrier Set)[01.2013 - 09.2015] AWS21#,GWS214 |
90110-14007 |
from US $1.68 |
||
|
41110W
|
41110W
90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
90109-12081 |
from US $3 |
||
|
41111A
|
41111A
90250-10017 Pin, Straight(For Clutch Housing Set)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90250-10017 |
from US $1.44 |
||
|
41181H
|
41181H
41108-50050 Cover, Rear Differential Carrier[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41108-50050 |
US $155.79 |
||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
90105-10417 |
US $3.05 |
||
|
41183
|
41183
41183-30020 Deflector, Rear Differential Breather Plug Oil[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41183-30020 |
US $3.93 |
||
|
41183A
|
41183A
91651-60614 Bolt[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
91651-60614 |
from US $1.19 |
||
|
41196
|
41196
41196-30010 Damper, Rear Differential Dynamic[01.2013 - 09.2015] AWS21#,GWS214 |
41196-30010 |
US $96.76 |
||
|
41201
|
41201
41201-59275 Final Gear Kit, Differential, Rear[01.2013 - 09.2015] AWS21# ＊ＦＧＲ＝４７：１６＝２．９３７ |
41201-59275 |
US $583.86 |
||
|
41201A
|
41201A
90366-45056
Bearing (For Rear Drive Pinion Rear)
[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90366-45056 |
— | ||
| replacements | |||||
|
41201A
|
41201A
90366-45071 Taper roller bearing[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90366-45071 |
US $46.59 |
||
|
41201A
|
41201A
41231-24020 Spacer[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41231-24020 |
US $12.67 |
||
|
41201B
|
41201B
90366-34024 Bearing (For Rear Drive Pinion Front)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90366-34024 |
US $38.44 |
||
|
41201C
|
41201C
90311-44005 Seal, Oil (For Rear Differential Carrier)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90311-44005 |
from US $10.93 |
||
|
41201D
|
41201D
90201-70002 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．８８，マーク ８８ |
90201-70002 |
from US $4.19 |
||
|
41201D
|
41201D
90201-70004 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．９０，マーク ９０ |
90201-70004 |
US $3.84 |
||
|
41201D
|
41201D
90201-70006 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．９２，マーク ９２ |
90201-70006 |
US $3.84 |
||
|
41201D
|
41201D
90201-70008 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．９４，マーク ９４ |
90201-70008 |
US $4.02 |
||
|
41201D
|
41201D
90201-70010 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．９６，マーク ９６ |
90201-70010 |
US $4.02 |
||
|
41201D
|
41201D
90201-70012 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝１．９８，マーク ９８ |
90201-70012 |
US $4.02 |
||
|
41201D
|
41201D
90201-70014 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．００，マーク ００ |
90201-70014 |
US $4.02 |
||
|
41201D
|
41201D
90201-70016 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．０２，マーク ０２ |
90201-70016 |
US $4.02 |
||
|
41201D
|
41201D
90201-70018 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．０４，マーク ０４ |
90201-70018 |
US $4.02 |
||
|
41201D
|
41201D
90201-70020 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．０６，マーク ０６ |
90201-70020 |
US $4.02 |
||
|
41201D
|
41201D
90201-70022 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．０８，マーク ０８ |
90201-70022 |
US $4.02 |
||
|
41201D
|
41201D
90201-70024 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．１０，マーク １０ |
90201-70024 |
US $4.19 |
||
|
41201D
|
41201D
90201-70026 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．１２，マーク １２ |
90201-70026 |
US $4.19 |
||
|
41201D
|
41201D
90201-70028 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．１４，マーク １４ |
90201-70028 |
US $4.19 |
||
|
41201D
|
41201D
90201-70030 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．１６，マーク １６ |
90201-70030 |
US $4.19 |
||
|
41201D
|
41201D
90201-70032 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．１８，マーク １８ |
90201-70032 |
US $4.19 |
||
|
41201D
|
41201D
90201-70034 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．２０，マーク ２０ |
90201-70034 |
US $4.72 |
||
|
41201D
|
41201D
90201-70036 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．２２，マーク ２２ |
90201-70036 |
US $4.37 |
||
|
41201D
|
41201D
90201-70038 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．２４，マーク ２４ |
90201-70038 |
US $4.37 |
||
|
41201D
|
41201D
90201-70040 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．２６，マーク ２６ |
90201-70040 |
US $4.37 |
||
|
41201D
|
41201D
90201-70042 Washer, Plate (For Rear Differential Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝２．２８，マーク ２８ |
90201-70042 |
US $4.37 |
||
|
41204
|
41204
41204-30040 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41204-30040 |
from US $66.36 |
||
|
41204B
|
41204B
90179-26005 Nut (For Rear Drive Pinion)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 外径＝４０．４ |
90179-26005 |
from US $2.03 |
||
|
41214
|
41214
41214-50010 Slinger, Rear Differential Drive Pinion Oil[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41214-50010 |
US $1.43 |
||
|
41231
|
41231
41231-30050 Spacer, Rear Differential Drive Pinion Bearing[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41231-30050 |
US $18.65 |
||
|
41252
|
41252
41252-24010 Deflector, Dust (For Rear Differential)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41252-24010 |
US $4.66 |
||
|
41301
|
41301
41301-53041 Case Sub-Assy, Rear DifferentialREAR DIFFERENTIAL [12.2012 - 09.2015] AWS21#,GRS214 |
41301-53041 |
US $535.08 |
||
|
41301A
|
41301A
90366-50087 Bearing(For Rear Differential Case)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90366-50087 |
US $44.86 |
||
|
41302A
|
41302A
90105-12219 Bolt(For Rear Differential Case)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
90105-12219 |
US $2.33 |
||
|
41334D
|
41334D
90521-99062 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．６６，マーク ６６ |
90521-99062 |
US $6.64 |
||
|
41334D
|
41334D
90521-99063 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．６８，マーク ６８ |
90521-99063 |
US $6.12 |
||
|
41334D
|
41334D
90521-99064 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．７０，マーク ７０ |
90521-99064 |
US $6.26 |
||
|
41334D
|
41334D
90521-99065 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．７２，マーク ７２ |
90521-99065 |
US $6.26 |
||
|
41334D
|
41334D
90521-99066 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．７４，マーク ７４ |
90521-99066 |
US $6.41 |
||
|
41334D
|
41334D
90521-99067 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．７６，マーク ７６ |
90521-99067 |
US $6.41 |
||
|
41334D
|
41334D
90521-99068 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．７８，マーク ７８ |
90521-99068 |
US $6.29 |
||
|
41334D
|
41334D
90521-99070 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．８０，マーク ８０ |
90521-99070 |
US $6.41 |
||
|
41334D
|
41334D
90521-99071 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．８２，マーク ８２ |
90521-99071 |
US $6.41 |
||
|
41334D
|
41334D
90521-99072 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．８４，マーク ８４ |
90521-99072 |
US $6.41 |
||
|
41334D
|
41334D
90521-99073 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．８６，マーク ８６ |
90521-99073 |
US $6.70 |
||
|
41334D
|
41334D
90521-99074 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．８８，マーク ８８ |
90521-99074 |
US $6.70 |
||
|
41334D
|
41334D
90521-99075 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．９０，マーク ９０ |
90521-99075 |
US $6.70 |
||
|
41334D
|
41334D
90521-99076 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．９２，マーク ９２ |
90521-99076 |
US $6.70 |
||
|
41334D
|
41334D
90521-99077 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．９４，マーク ９４ |
90521-99077 |
US $6.70 |
||
|
41334D
|
41334D
90521-99078 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．９６，マーク ９６ |
90521-99078 |
US $6.70 |
||
|
41334D
|
41334D
90521-99079 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝３．９８，マーク ９８ |
90521-99079 |
US $6.84 |
||
|
41334D
|
41334D
90521-99081 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．００，マーク ００ |
90521-99081 |
US $6.84 |
||
|
41334D
|
41334D
90521-99082 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．０２，マーク ０２ |
90521-99082 |
US $6.84 |
||
|
41334D
|
41334D
90521-99083 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．０４，マーク ０４ |
90521-99083 |
US $6.84 |
||
|
41334D
|
41334D
90521-99084 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．０６，マーク ０６ |
90521-99084 |
US $6.84 |
||
|
41334D
|
41334D
90521-99085 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．０８，マーク ０８ |
90521-99085 |
US $6.84 |
||
|
41334D
|
41334D
90521-99086 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．１０，マーク １０ |
90521-99086 |
US $6.99 |
||
|
41334D
|
41334D
90521-99087 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．１２，マーク １２ |
90521-99087 |
US $6.99 |
||
|
41334D
|
41334D
90521-99088 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．１４，マーク １４ |
90521-99088 |
US $6.99 |
||
|
41334D
|
41334D
90521-99089 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．１６，マーク １６ |
90521-99089 |
US $6.99 |
||
|
41334D
|
41334D
90521-99090 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．１８，マーク １８ |
90521-99090 |
US $6.99 |
||
|
41334D
|
41334D
90521-99091 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．２０，マーク ２０ |
90521-99091 |
US $6.99 |
||
|
41334D
|
41334D
90521-99092 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．２２，マーク ２２ |
90521-99092 |
US $6.99 |
||
|
41334D
|
41334D
90521-99095 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．２４，マーク ２４ |
90521-99095 |
US $6.99 |
||
|
41334D
|
41334D
90521-99096 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．２６，マーク ２６ |
90521-99096 |
US $7.13 |
||
|
41334D
|
41334D
90521-99097 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．２８，マーク ２８ |
90521-99097 |
US $7.13 |
||
|
41334D
|
41334D
90521-99100 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．３０，マーク ３０ |
90521-99100 |
US $7.13 |
||
|
41334D
|
41334D
90521-99101 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．３２，マーク ３２ |
90521-99101 |
US $7.13 |
||
|
41334D
|
41334D
90521-99102 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．３４，マーク ３４ |
90521-99102 |
US $7.13 |
||
|
41334D
|
41334D
90521-99103 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．３６，マーク ３６ |
90521-99103 |
US $7.13 |
||
|
41334D
|
41334D
90521-99104 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．３８，マーク ３８ |
90521-99104 |
US $7.43 |
||
|
41334D
|
41334D
90521-99105 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．４０，マーク ４０ |
90521-99105 |
US $7.43 |
||
|
41334D
|
41334D
90521-99107 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2012 - 09.2015] AWS21#,GRS214,GWS214 厚さ＝４．４２，マーク ４２ |
90521-99107 |
US $7.43 |
||
|
41651
|
41651
41651-30130 Cushion, Rear Differential Mount, No.1[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41651-30130 |
from US $50.52 |
||
|
41651A
|
41651A
41651-30140 Cushion, Rear Differential Mount, No.2[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41651-30140 |
from US $50.97 |
||
|
41653
|
41653
41653-30100 Stopper, Rear Differential Mount, Upper[12.2012 - 09.2015] AWS21#,GRS214,GWS214 |
41653-30100 |
US $11.07 |
||
|
41654
|
41654
41654-50031 Stopper, Rear Differential Mount, Lower[12.2012 - 06.2015] AWS21#,GRS214,GWS214 |
41654-50031 |
US $7.28 |
||
| replacement | |||||
|
41654
|
41654
41654-50033 Stopper, Rear Differential Mount, Lower[12.2012 - 06.2015] AWS21#,GRS214,GWS214 |
41654-50033 |
from US $8.01 |
||
|
41654
|
41654
41654-50032 Stopper, Rear Differential Mount, Lower[07.2015 - 09.2015] AWS21#,GRS214,GWS214 |
41654-50032 |
US $7.28 |
||
| replacement | |||||
|
41654
|
41654
41654-50033 Stopper, Rear Differential Mount, Lower[07.2015 - 09.2015] AWS21#,GRS214,GWS214 |
41654-50033 |
from US $8.01 |
||
|
41654
|
41654
41654-50033 Stopper, Rear Differential Mount, Lower[06.2016 -] ARS210,AWS21#,GRS214,GWS214 |
41654-50033 |
from US $8.01 |
||
|
9422360600
|
9422360600
94223-60600 New Genuine Part |
94223-60600 |
US $0.87 |
||
