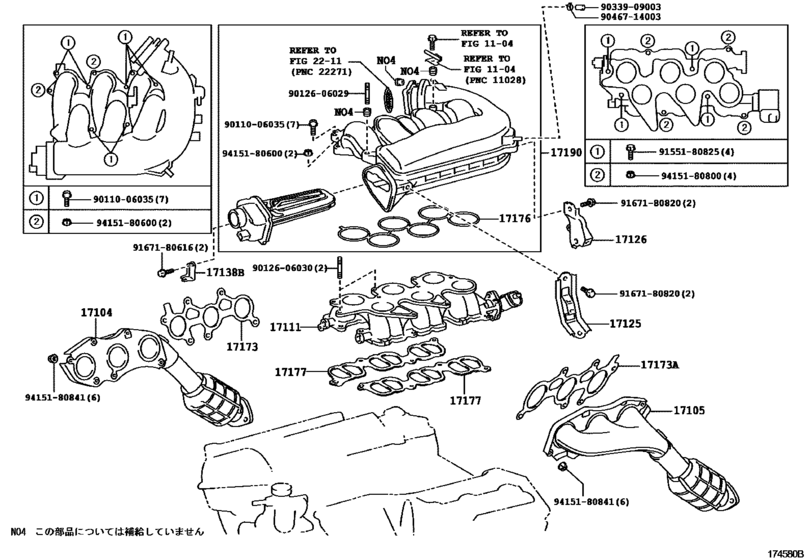

Manifold ([12.2003 - 09.2005] (0312-0509)3GRFSE,4GRFSE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- GRS183
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.2003
- To
- 02.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17140-31040 Manifold Sub-Assy, Exhaust, Rh[12.2003 - 05.2005] 3GRFSE..GRS183 |
17140-31040 |
US $1,017.74 |
||
|
17104
|
17104
17140-31190 Manifold Sub-Assy, Exhaust, Rh[05.2005 - 09.2005] 3GRFSE..GRS183 |
17140-31190 |
US $1,017.74 |
||
|
17105
|
17105
17150-31040 Manifold Sub-Assy, Exhaust, Lh[12.2003 - 05.2005] 3GRFSE..GRS183 |
17150-31040 |
US $1,221.58 |
||
|
17105
|
17105
17150-31190 Manifold Sub-Assy, Exhaust, Lh[05.2005 - 09.2005] 3GRFSE..GRS183 |
17150-31190 |
from US $1,221.58 |
||
|
17111
|
17111
17120-31010 Manifold, Intake[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17120-31010 |
US $681.41 |
||
|
17111
|
17111
17120-31020 Manifold, Intake[09.2005 - 02.2008] 3GRFSE,4GRFSE..GRS180,181,182,183 |
17120-31020 |
US $428.06 |
||
|
17125
|
17125
17125-31020 Stay, Surge Tank, No.1[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17125-31020 |
US $27.81 |
||
|
17126
|
17126
17126-31020 Stay, Surge Tank, No.2[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17126-31020 |
US $9.76 |
||
|
17138B
|
17138B
17138-31010 Stay, Intake Manifold[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17138-31010 |
US $6.12 |
||
|
17173
|
17173
17173-31020 Gasket, Exhaust Manifold To Head[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17173-31020 |
from US $11.72 |
||
|
17173A
|
17173A
17173-31020 Gasket, Exhaust Manifold To Head[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17173-31020 |
from US $11.72 |
||
|
17176
|
17176
17176-31020 Gasket, Air Surge Tank To Intake Manifold[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17176-31020 |
from US $23.34 |
||
|
17176
|
17176
17176-31050 Gasket, Air Surge Tank To Intake Manifold[09.2005 - 02.2008] 3GRFSE,4GRFSE..GRS180,181,182,183 |
17176-31050 |
from US $5.40 |
||
|
17177
|
17177
17177-31020
Gasket, Intake Manifold To Head, No.1
[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17177-31020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-31021 Gasket, Intake Manifold To Head, No.1[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17177-31021 |
from US $6.40 |
||
|
17190
|
17190
17190-31020 Tank Assy, Intake Air Surge[12.2003 - 09.2005] 3GRFSE,4GRFSE..GRS18# |
17190-31020 |
US $812.45 |
||
|
17190
|
17190
17190-31040 Tank Assy, Intake Air Surge[09.2005 - 02.2008] 3GRFSE,4GRFSE..GRS180,181,182,183 |
17190-31040 |
US $614.43 |
||
|
9011006035
|
9011006035
90110-06035 BOLT HEXAGON SOCKET |
90110-06035 |
US $1.43 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.66 |
||
|
9012606030
|
9012606030
90126-06030 New Genuine Part |
90126-06030 |
US $1.08 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.33 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.80 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.78 |
||
