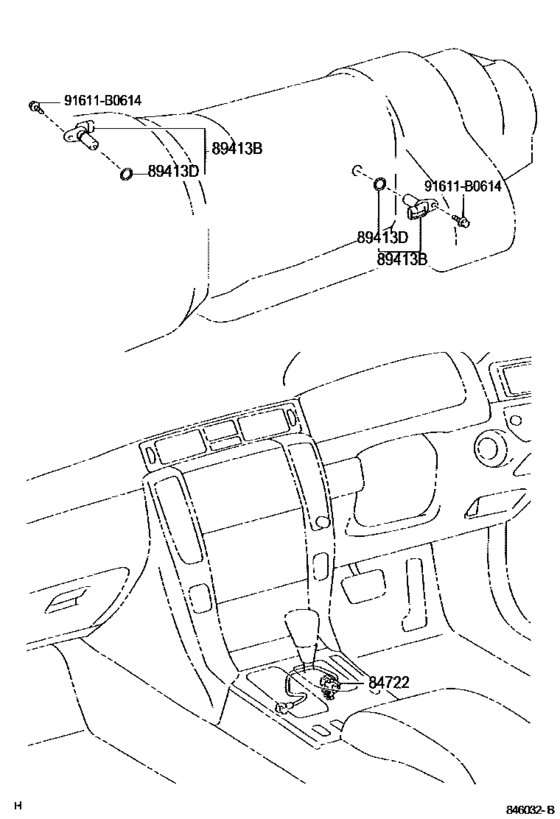

Overdrive & Electronic Controlled Transmission ([12.2003 - ] (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- GRS183
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.2003
- To
- 02.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84722
|
84722
84722-20230 Switch, Transmission Control[12.2003 - 06.2006] GRS182,183,UZS18# |
84722-20230 |
US $29.27 |
||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[12.2003 - 06.2006] GRS180,181..5FC;GRS182,183,UZS18# |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[12.2003 - 06.2006] GRS180,181..5FC;GRS182,183,UZS18# |
89413-32011 |
from US $75.94 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[12.2003 - 09.2005] GRS18# |
90301-11008 |
from US $0.90 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
