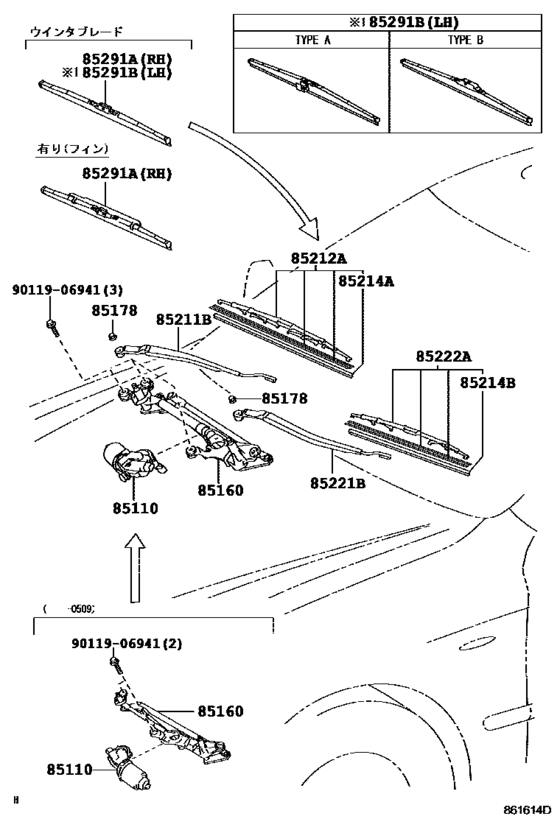

Windshield Wiper ([12.2003 - ] (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- GRS183
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.2003
- To
- 02.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-30480 Motor Assy, Windshield Wiper[12.2003 - 04.2005] GRS18#,UZS18# |
85110-30480 |
US $407.68 |
||
| replacement | |||||
|
85110
|
85110
85110-30492 Motor Assy, Windshield Wiper[12.2003 - 04.2005] GRS18#,UZS18# |
85110-30492 |
US $410.59 |
||
|
85110
|
85110
85110-30481 Motor Assy, Windshield Wiper[05.2005 - 09.2005] GRS18#,UZS18# |
85110-30481 |
US $407.68 |
||
| replacement | |||||
|
85110
|
85110
85110-30492 Motor Assy, Windshield Wiper[05.2005 - 09.2005] GRS18#,UZS18# |
85110-30492 |
US $410.59 |
||
|
85110
|
85110
85110-30490 Motor Assy, Windshield Wiper[12.2003 - 04.2005] GRS18#,UZS18# 寒冷地仕様 |
85110-30490 |
US $410.59 |
||
| replacement | |||||
|
85110
|
85110
85110-30492 Motor Assy, Windshield Wiper[12.2003 - 04.2005] GRS18#,UZS18# 寒冷地仕様 |
85110-30492 |
US $410.59 |
||
|
85110
|
85110
85110-30491 Motor Assy, Windshield Wiper[05.2005 - 09.2005] GRS18#,UZS18# 寒冷地仕様 |
85110-30491 |
US $410.59 |
||
| replacement | |||||
|
85110
|
85110
85110-30492 Motor Assy, Windshield Wiper[05.2005 - 09.2005] GRS18#,UZS18# 寒冷地仕様 |
85110-30492 |
US $410.59 |
||
|
85110
|
85110
85110-30510 Motor Assy, Windshield Wiper[09.2005 - 08.2006] GRS18# |
85110-30510 |
US $410.59 |
||
| replacement | |||||
|
85110
|
85110
85110-30511 Motor Assy, Windshield Wiper[09.2005 - 08.2006] GRS18# |
85110-30511 |
US $340.70 |
||
|
85110
|
85110
85110-30511 Motor Assy, Windshield Wiper[09.2006 - 02.2008] GRS18# |
85110-30511 |
US $340.70 |
||
|
85160
|
85160
85150-30540 Link Assy, Windshield Wiper[12.2003 - 09.2005] GRS18#,UZS18# |
85150-30540 |
US $149.97 |
||
|
85160
|
85160
85150-30550 Link Assy, Windshield Wiper[12.2003 - 09.2005] GRS18#,UZS18# 寒冷地仕様 |
85150-30550 |
US $160.16 |
||
|
85160
|
85160
85150-30610 Link Assy, Windshield Wiper[09.2005 - 08.2006] GRS18# 寒冷地仕様 |
85150-30610 |
US $133.95 |
||
|
85160
|
85160
85150-30620 Link Assy, Windshield Wiper[09.2005 - 08.2006] GRS18# |
85150-30620 |
US $104.83 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[12.2003 - 09.2005] GRS18# |
90176-10005 |
from US $1.05 |
||
|
85211B
|
85211B
85211-30620 Arm, Front Wiper, Rh[12.2003 - 09.2005] GRS18#,UZS18# |
85211-30620 |
US $71.34 |
||
|
85211B
|
85211B
85211-30630 Arm, Front Wiper, Rh[12.2003 - 09.2005] GRS18# 寒冷地仕様 |
85211-30630 |
US $59.40 |
||
|
85211B
|
85211B
85211-30690 Arm, Front Wiper, Rh[09.2005 - 02.2008] GRS18# |
85211-30690 |
US $59.40 |
||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[12.2003 - 09.2005] GRS18# |
85212-30370 |
US $56.45 |
||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[12.2003 - 09.2005] GRS18# |
85214-50100 |
from US $13.07 |
||
|
85214B
|
85214B
85214-46010 Rubber, Wiper, Lh[12.2003 - 09.2005] GRS18#,UZS18# |
85214-46010 |
US $12.81 |
||
| replacement | |||||
|
85214B
|
85214B
85214-46011 Rubber, Wiper, Lh[12.2003 - 09.2005] GRS18#,UZS18# |
85214-46011 |
from US $9.59 |
||
|
85214B
|
85214B
85214-46011 Rubber, Wiper, Lh[09.2005 - 02.2008] GRS18# |
85214-46011 |
from US $9.59 |
||
|
85221B
|
85221B
85221-30520 Arm, Front Wiper, Lh[12.2003 - 09.2005] GRS18# |
85221-30520 |
US $61.59 |
||
|
85221B
|
85221B
85221-30530 Arm, Front Wiper, Lh[12.2003 - 09.2005] GRS18# 寒冷地仕様 |
85221-30530 |
US $61.59 |
||
|
85222A
|
85222A
85222-46010 Blade, Fr Wiper, Lh[12.2003 - 09.2005] GRS18#,UZS18# |
85222-46010 |
US $31.74 |
||
| replacement | |||||
|
85222A
|
85222A
85222-46011 Blade, Fr Wiper, Lh[12.2003 - 09.2005] GRS18#,UZS18# |
85222-46011 |
from US $31.30 |
||
|
85222A
|
85222A
85222-46011 Blade, Fr Wiper, Lh[09.2005 - 02.2008] GRS18# |
85222-46011 |
from US $31.30 |
||
|
85291A
|
85291A
85291-50060 Blade, Front Wiper, Winter, Rh[12.2003 - 05.2005] GRS180,182,183 高速仕様 ウィンタブレード（ＤＯＰ）; GRS180,182,183 |
85291-50060 |
US $93.48 |
||
|
85291A
|
85291A
85291-50070 Blade, Front Wiper, Winter, Rh[12.2003 - 05.2005] GRS180,182,183 高速仕様 ウィンタブレード（ＤＯＰ）,有り（フィン）; GRS180,182,183 有り（フィン） |
85291-50070 |
from US $75.65 |
||
|
85291B
|
85291B
85291-22080 Blade Assy, Windshield Wiper[12.2003 - 05.2005] GRS180,182,183 高速仕様 ウィンタブレード（ＤＯＰ）,ＴＹＰＥ Ａ：イラスト参照; GRS180,182,183 ＴＹＰＥ Ａ：イラスト参照 |
85291-22080 |
US $70.56 |
||
|
85291B
|
85291B
85291-33050 Blade Assy, Windshield Wiper[12.2003 - 05.2005] GRS18# ウィンタブレード（ＤＯＰ）,ＴＹＰＥ Ｂ：イラスト参照; GRS18# ＴＹＰＥ Ｂ：イラスト参照 |
85291-33050 |
from US $70.56 |
||
|
9011906941
|
9011906941
90119-06941 BOLT WWASHER |
90119-06941 |
US $0.96 |
||
