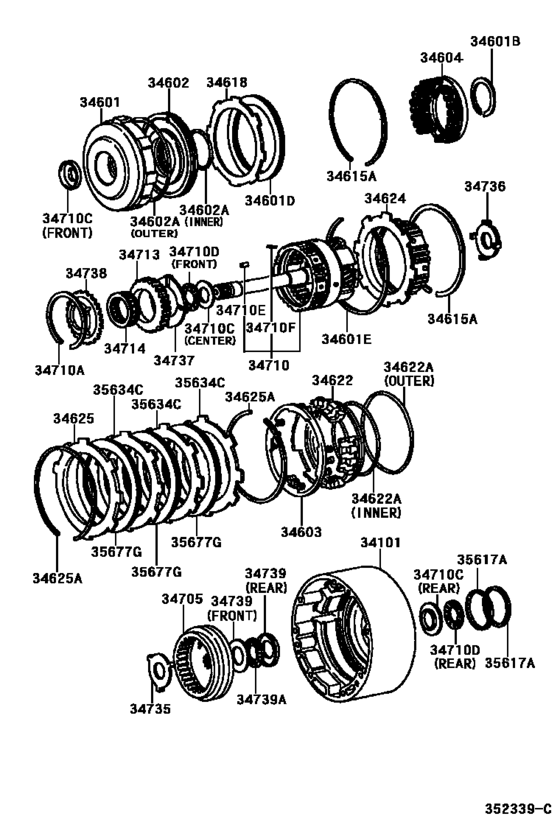

Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34101
|
34101
34101-22020
Case Sub-Assy, Overdrive
[08.2001 - 12.2003] GS171 |
34101-22020 |
— | ||
|
34601
|
34601
34601-30022 Drum Sub-Assy, Overdrive Direct Clutch[08.2001 - 12.2003] GS171 |
34601-30022 |
US $476.11 |
||
|
34601B
|
34601B
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.2001 - 12.2003] GS171 |
90520-52262 |
US $2.80 |
||
|
34601D
|
34601D
35677-30140 Disc, Clutch (For Overdrive)[08.2001 - 12.2003] GS171 |
35677-30140 |
US $28.65 |
||
|
34601E
|
34601E
90521-99146
Ring, Hole Snap, No.1 (For Overdrive)
[08.2001 - 12.2003] GS171 |
90521-99146 |
— | ||
|
34602
|
34602
34602-22010 Piston Sub-Assy, Overdrive Direct Clutch[08.2001 - 12.2003] GS171 |
34602-22010 |
US $26.06 |
||
|
34602A
|
34602A
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2001 - 12.2003] GS171 内側 |
90301-56007 |
US $3.05 |
||
|
34602A
|
34602A
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[08.2001 - 12.2003] GS171 外側 |
90301-99058 |
US $3.58 |
||
|
34603
|
34603
34603-22010 Spring Sub-Assy, Overdrive Brake Return[08.2001 - 12.2003] GS171 |
34603-22010 |
US $10.48 |
||
|
34604
|
34604
34604-22010
Spring Sub-Assy, Overdrive Clutch Return
[08.2001 - 12.2003] GS171 |
34604-22010 |
— | ||
|
34615A
|
34615A
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[08.2001 - 06.2007] JZS173..ROYEX;JKS175,JZS171,175,179; JZS173..ATH;GS171,JZS177,UZS17# |
90521-99001 |
US $4.54 |
||
|
34618
|
34618
34618-30010
Plate, Clutch (For Overdrive)
[08.2001 - 12.2003] GS171 |
34618-30010 |
— | ||
|
34622
|
34622
34622-22020 Piston, Overdrive Brake[08.2001 - 12.2003] GS171 |
34622-22020 |
US $28.68 |
||
|
34622A
|
34622A
90301-99103 Ring, O (For Overdrive Brake Piston)[08.2001 - 12.2003] GS171 内側 |
90301-99103 |
from US $2.62 |
||
|
34622A
|
34622A
90301-99111 Ring, O (For Overdrive Brake Piston)[08.2001 - 12.2003] GS171 外側 |
90301-99111 |
US $2.62 |
||
|
34624
|
34624
34624-26010
Hub, Overdrive Brake
[08.2001 - 12.2003] GS171 |
34624-26010 |
— | ||
|
34625
|
34625
34625-22020 Flange, Overdrive Brake, No.1[08.2001 - 12.2003] GS171 厚さ＝４．０ |
34625-22020 |
US $48.22 |
||
|
34625A
|
34625A
90521-99004 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)[08.2001 - 12.2003] GS171 |
90521-99004 |
US $5.77 |
||
|
34705
|
34705
34705-30021
Gear Sub-Assy, Overdrive Planetary Ring
[08.2001 - 12.2003] GS171 |
34705-30021 |
— | ||
|
34710
|
34710
34710-22040 Gear Assy, Overdrive Planetary[08.2001 - 12.2003] GS171 |
34710-22040 |
US $690.14 |
||
|
34710A
|
34710A
90521-99003
Ring, Hole Snap(For Overdrive Planetary Gear)
[08.2001 - 12.2003] GS171 |
90521-99003 |
— | ||
|
34710C
|
34710C
34739-30031 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 センタ |
34739-30031 |
US $6.41 |
||
|
34710C
|
34710C
34739-30041 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 フロント |
34739-30041 |
US $6.46 |
||
|
34710C
|
34710C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 リヤ |
35789-22010 |
US $6.99 |
||
|
34710D
|
34710D
90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 リヤ |
90374-23012 |
from US $5.42 |
||
|
34710D
|
34710D
90374-24001 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 フロント |
90374-24001 |
US $8.44 |
||
|
34710E
|
34710E
90334-03001 Plug, Straight(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 |
90334-03001 |
US $1.89 |
||
|
34710F
|
34710F
90250-03024 Pin, Straight(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 |
90250-03024 |
US $0.87 |
||
|
34713
|
34713
34713-30020 Race, 1 Way Clutch Outer (For Overdrive)[08.2001 - 12.2003] GS171 |
34713-30020 |
US $147.06 |
||
|
34714
|
34714
35791-30030 Clutch, 1Way, No.1(For Overdrive)[08.2001 - 12.2003] GS171 |
35791-30030 |
US $147.06 |
||
|
34735
|
34735
34735-30020
Washer, Overdrive Planetary Gear Thrust, No.1
[08.2001 - 12.2003] GS171 |
34735-30020 |
— | ||
|
34736
|
34736
34736-30010 Washer, Overdrive Planetary Gear Thrust, No.2[08.2001 - 12.2003] GS171 |
34736-30010 |
US $15.55 |
||
|
34737
|
34737
34737-30020 Washer, Overdrive Planetary Gear Thrust, No.3[08.2001 - 12.2003] GS171 |
34737-30020 |
US $22.13 |
||
|
34738
|
34738
34738-30020 Washer, Overdrive Planetary Gear Thrust, No.4[08.2001 - 12.2003] GS171 |
34738-30020 |
US $10.05 |
||
|
34739
|
34739
34739-30020 Race, Thrust Bearing(For Overdrive)[08.2001 - 12.2003] GS171 フロント |
34739-30020 |
US $6.99 |
||
|
34739
|
34739
35789-22030 Race, Thrust Bearing(For Overdrive)[08.2001 - 12.2003] GS171 リヤ |
35789-22030 |
US $8.21 |
||
|
34739A
|
34739A
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[08.2001 - 12.2003] GS171 |
90374-28014 |
US $4.89 |
||
|
35617A
|
35617A
35617-43010 Ring, Clutch Drum Oil Seal (For Overdrive)[08.2001 - 12.2003] GS171 |
35617-43010 |
US $6.99 |
||
|
35634C
|
35634C
34634-30010
Plate, Clutch (For Overdrive)
[08.2001 - 12.2003] GS171 厚さ＝２．２５−２．３５ |
34634-30010 |
— | ||
|
35634C
|
35634C
35634-30080 Flange, Overdrive Brake, No.1[08.2001 - 12.2003] GS171 厚さ＝１．９５−２．０５ |
35634-30080 |
US $22.13 |
||
|
35677G
|
35677G
35677-43010 Disc, Clutch (For Overdrive)[08.2001 - 12.2003] GS171 |
35677-43010 |
US $27.08 |
