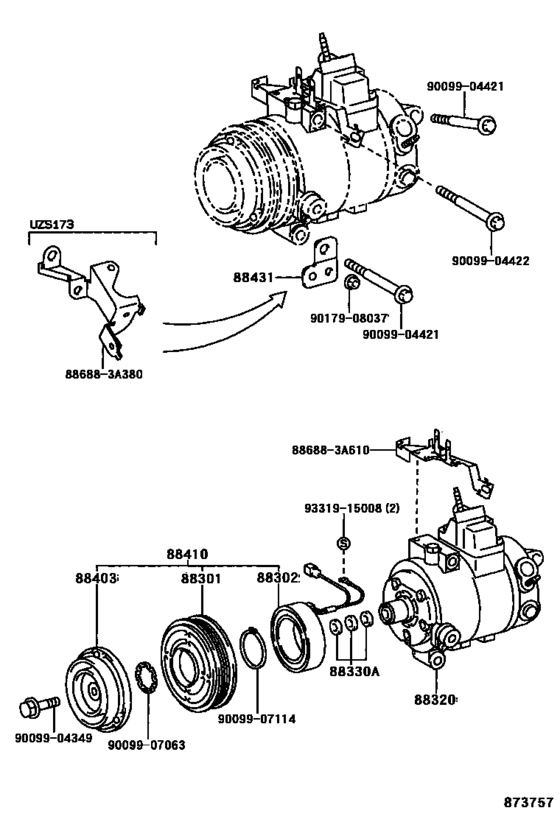

Heating & Air Conditioning - Compressor ([09.1999 - 08.2001] (9909-0108)UZS17#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- UZS173
- grade
- C
- body
- SED
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 06.2004
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-3A050
Rotor Sub-Assy, Magnet Clutch
[09.1999 - 08.2001] UZS17# |
88412-3A050 |
— | ||
|
88302
|
88302
88411-26060
Stator Sub-Assy, Magnet Clutch
[09.1999 - 08.2001] UZS17# |
88411-26060 |
— | ||
|
88320
|
88320
88320-3A220
Compressor Assy, Cooler
[09.1999 - 08.2000] UZS17# |
88320-3A220 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50100
Compressor Assy, Cooler
[09.1999 - 08.2000] UZS17# |
88320-50100 |
— | ||
|
88320
|
88320
88320-50100
Compressor Assy, Cooler
[08.2000 - 08.2001] UZS17# |
88320-50100 |
— | ||
|
88320
|
88320
88320-50101
Compressor Assy, Cooler
[09.2001 - 06.2004] UZS17# |
88320-50101 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50102 Compressor Assy, Cooler[09.2001 - 06.2004] UZS17# |
88320-50102 |
US $1,852.03 |
||
|
88330A
|
88330A
88318-87704
Washer (For Magnet Clutch)
[08.2001 - 06.2004] UZS17# 厚さ＝０．１ |
88318-87704 |
— | ||
|
88330A
|
88330A
88318-87705
Washer (For Magnet Clutch)
[08.2001 - 06.2004] UZS17# 厚さ＝０．３ |
88318-87705 |
— | ||
|
88330A
|
88330A
88318-87706
Washer (For Magnet Clutch)
[08.2001 - 06.2004] UZS17# 厚さ＝０．５ |
88318-87706 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-3A100
Hub Sub-Assy, Magnet Clutch
[09.1999 - 08.2001] JZS17#,UZS17# |
88403-3A100 |
— | ||
|
88410
|
88410
88410-3A260 Clutch Assy, Magnet[09.1999 - 08.2001] UZS17# |
88410-3A260 |
from US $585.31 |
||
|
886883A380
|
886883A380
88688-3A380
Bracket, Cooler Compressor
|
88688-3A380 |
— | ||
|
886883A610
|
886883A610
88688-3A610
Bracket, Cooler Compressor
|
88688-3A610 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $0.95 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9017908037
|
9017908037
90179-08037 New Genuine Part |
90179-08037 |
US $1.89 |
||
| replacement | |||||
|
9017908037
|
9017908037
90179-08096 NUT |
90179-08096 |
from US $1.35 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.34 |
||
