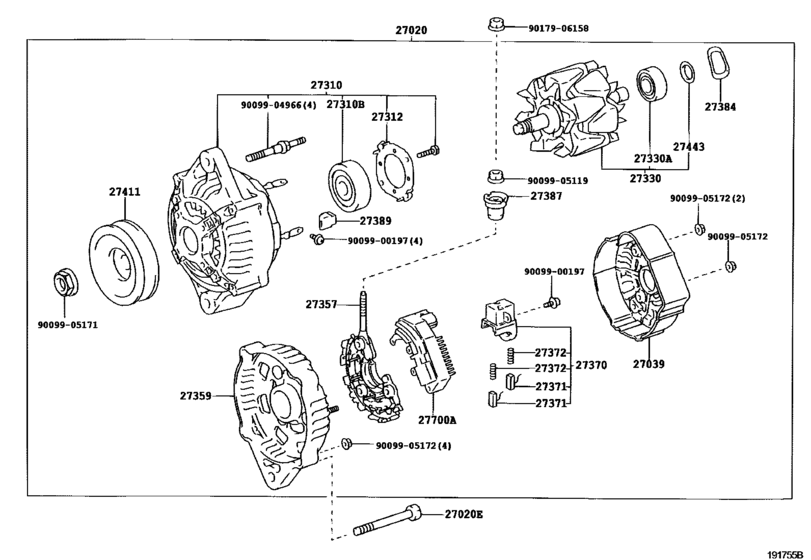

Alternator ([09.2002 - ] 24V 30A (0209- )14B) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-58460 Alternator Assy[09.2002 - 03.2006] 14B..BU303,343 24V 30A |
27060-58460 |
US $1,485.12 |
||
| replacement | |||||
|
27020
|
27020
27060-58480 Alternator Assy[09.2002 - 03.2006] 14B..BU303,343 24V 30A |
27060-58480 |
US $1,485.12 |
||
|
27020
|
27020
27060-58480 Alternator Assy[04.2006 - 10.2006] 14B..BU303,343..GEN 24V 30A |
27060-58480 |
US $1,485.12 |
||
|
27020E
|
27020E
90148-10001 Bolt(For Alternator)[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
90148-10001 |
US $0.79 |
||
|
27039
|
27039
27039-70470
Cover, Alternator Rear End
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27039-70470 |
— | ||
|
27310
|
27310
27310-58480
Frame Assy, Drive End, Alternator
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27310-58480 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[04.2006 - 10.2006] 14B..BU303,343..GEN |
90099-10192 |
from US $13.63 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27312-42010 |
— | ||
|
27330
|
27330
27330-58480
Rotor Assy, Alternator
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27330-58480 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[04.2006 - 10.2006] 14B..BU303,343..GEN |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-55080 Holder, Alternator, W/rectifier[04.2006 - 10.2006] 14B..BU303,343..GEN |
27357-55080 |
from US $74.08 |
||
|
27359
|
27359
27359-72280
Frame, Alternator Rectifier End
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27359-72280 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[04.2006 - 10.2006] 14B..BU303,343..GEN |
27370-75060 |
from US $15.72 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[09.2002 - 10.2006] 14B..BU303,343..GEN |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[09.2002 - 10.2006] 14B..BU303,343..GEN |
27372-87501 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[04.2006 - 10.2006] 14B..BU303,343..GEN |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42021
Insulator, Terminal
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27387-42021 |
— | ||
|
27389
|
27389
27389-42010
Insulator, Terminal
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27389-42010 |
— | ||
|
27411
|
27411
27411-58360
Pulley, Alternator
[04.2006 - 10.2006] 14B..BU303,343..GEN |
27411-58360 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[04.2006 - 10.2006] 14B..BU303,343..GEN |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
27700-58060 |
from US $130.71 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
