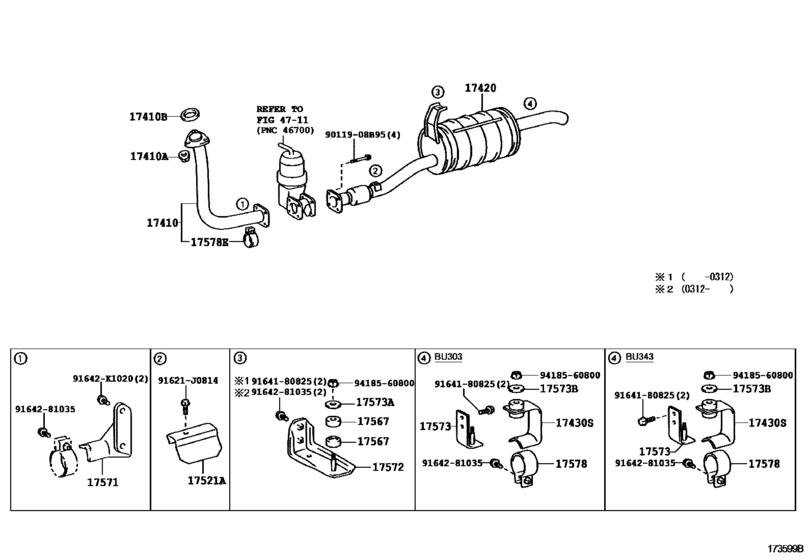

Exhaust Pipe ([12.2002 - 10.2006] (0212-0610)14B..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58320 Pipe Assy, Exhaust, Front[12.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
17401-58320 |
US $230.05 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[09.2002 - 10.2006] N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[09.2002 - 10.2006] N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06067 Gasket, Exhaust Pipe[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
90917-06067 |
from US $5.28 |
||
|
17420
|
17420
17403-78450
Pipe Assy, Exhaust, Center
[12.2002 - 10.2006] W04D,14B..BU303,343,WU300,340..GCC,GEN |
17403-78450 |
— | ||
|
17430S
|
17430S
17455-78080 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [12.2002 - 10.2006] N04C,W04D,14B..BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
17455-78080 |
US $30.14 |
||
|
17521A
|
17521A
17521-78010 Protector, Exhaust Pipe, Upper No.1[12.2002 - 10.2006] W04D,14B..BU303,343,WU300,340..GCC,GEN |
17521-78010 |
US $11.79 |
||
|
17567
|
17567
17567-78010 Cushion, Exhaust Pipe Support[09.2002 - 10.2006] N04C,W04D,14B..BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
17567-78010 |
from US $2.98 |
||
|
17571
|
17571
17571-58380 Bracket, Exhaust Pipe Support, No.1[09.2002 - 10.2006] 14B..BU303,343..GEN |
17571-58380 |
US $26.79 |
||
|
17572
|
17572
17572-78021 Bracket, Exhaust Pipe No.1 Support[12.2002 - 12.2003] W04D,14B..BU303,343,WU300,340..GCC,GEN,SA |
17572-78021 |
US $33.26 |
||
|
17572
|
17572
17572-78260 Bracket, Exhaust Pipe No.1 Support[12.2003 - 10.2006] N04C,W04D,14B..BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
17572-78260 |
US $15.29 |
||
|
17573
|
17573
17573-78090 Bracket, Exhaust Pipe No.1 Support, Lower[12.2002 - 10.2006] W04D,14B..BU303,WU300..ST..TS |
17573-78090 |
US $12.81 |
||
|
17573A
|
17573A
16721-78010 Plate, Holder[09.2002 - 10.2006] N04C,W04D,14B..BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
16721-78010 |
US $6.63 |
||
|
17573B
|
17573B
16721-78010 Plate, Holder[09.2002 - 10.2006] N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
16721-78010 |
US $6.63 |
||
|
17578
|
17578
17578-78010 Clamp, Pipe(For Front Exhaust Pipe)[09.2002 - 10.2006] N04C,W04D,14B..BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
17578-78010 |
US $31.25 |
||
|
17578E
|
17578E
17578-78010 Clamp, Pipe(For Front Exhaust Pipe)[12.2002 - 10.2006] N04C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
17578-78010 |
US $31.25 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91642K1020
|
91642K1020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9011908B95
|
9011908B95
90119-08B95 BOLTWWASHER |
90119-08B95 |
from US $0.92 |
||
|
9164180825
|
9164180825
91641-80825 BOLT WWASHER |
91641-80825 |
US $2.33 |
||
|
9164281035
|
9164281035
91642-81035 BOLT WWASHER |
91642-81035 |
US $4.30 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
