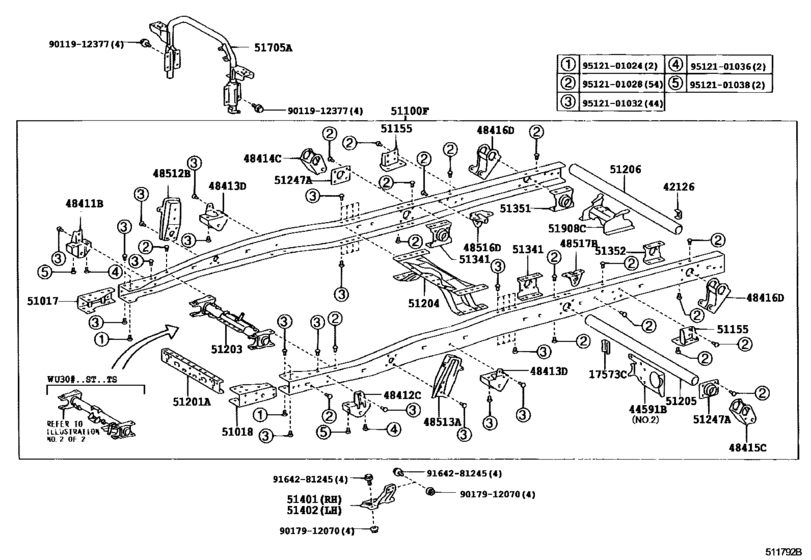

Frame ([12.2002 - ] (0212- )ST..TS) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17573C
|
17573C
17573-78020 Bracket, Exhaust Pipe Support, No.3[12.2002 - 06.2005] W04D,14B..BU303,WU300..ST..TS |
17573-78020 |
US $11.65 |
||
|
42126
|
42126
42126-37020 Attachment, Brake 3 Way[12.2002 - 10.2006] BU303,WU300..ST..TS |
42126-37020 |
US $11.07 |
||
|
44591B
|
44591B
44591-37030 Bracket, Brake Actuator[12.2002 - 06.2005] BU303,WU300..ST..TS |
44591-37030 |
US $53.87 |
||
|
48411B
|
48411B
48411-37070 Bracket, Spring, No.1 Rh[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
48411-37070 |
US $45.28 |
||
|
48412C
|
48412C
48412-37060 Bracket, Spring, No.1 Lh[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
48412-37060 |
US $45.28 |
||
|
48413D
|
48413D
48413-37060 Bracket, Spring, No.2[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
48413-37060 |
US $27.37 |
||
|
48414C
|
48414C
48414-37120 Bracket, Spring, No.3 Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
48414-37120 |
US $40.19 |
||
|
48415C
|
48415C
48415-37030 Bracket, Spring, No.3 Lh[12.2002 - 10.2006] BU303,WU300..ST..TS |
48415-37030 |
US $40.19 |
||
|
48416D
|
48416D
48416-37090 Bracket, Spring, No.4 Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
48416-37090 |
US $51.40 |
||
|
48512B
|
48512B
48512-37050 Bracket, Front Shock Absorber, Upper Rh[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
48512-37050 |
US $55.04 |
||
|
48513A
|
48513A
48512-37050 Bracket, Front Shock Absorber, Upper Rh[12.2002 - 09.2003] BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
48512-37050 |
US $55.04 |
||
|
48513A
|
48513A
48512-37130 Bracket, Front Shock Absorber, Upper Lh[09.2003 - 10.2006] BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
48512-37130 |
US $55.04 |
||
|
48516D
|
48516D
48516-37020 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
48516-37020 |
US $24.46 |
||
|
48517B
|
48517B
48516-37020 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
48516-37020 |
US $24.46 |
||
|
51017
|
51017
51017-37070 Reinforcement Sub-Assy, Side Rail, No.1 RhSIDE RAIL, NO.1 RH [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD |
51017-37070 |
US $136.86 |
||
|
51018
|
51018
51018-37060 Reinforcement Sub-Assy, Side Rail, No.1 LhSIDE RAIL, NO.1 LH [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD |
51018-37060 |
US $154.34 |
||
|
51100F
|
51100F
51002-3V580 Frame Sub-Assy[12.2002 - 04.2004] BU303,WU300..LHD..ST |
51002-3V580 |
US $3,902.08 |
||
|
51100F
|
51100F
51002-3V581
Frame Sub-Assy
[04.2004 - 06.2005] BU303,WU300..LHD..ST |
51002-3V581 |
— | ||
|
51100F
|
51100F
51002-3V582
Frame Sub-Assy
[06.2005 - 10.2006] BU303,WU300..LHD..ST |
51002-3V582 |
— | ||
|
51155
|
51155
51155-37070 Stiffener, Frame Side Rail, Rear Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
51155-37070 |
US $37.27 |
||
|
51201A
|
51201A
51211-37090 Crossmember Sub-Assy, Frame, Front[06.2005 - 10.2006] XZU300,330,340;BU303,343..RHD..GEN;BU303,WU300..LHD..ST |
51211-37090 |
US $60.12 |
||
|
51203
|
51203
51202-37170 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
51202-37170 |
US $244.61 |
||
| replacement | |||||
|
51203
|
51203
51202-37120 Crossmember Sub-Assy, Frame, No.2[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
51202-37120 |
US $230.05 |
||
|
51204
|
51204
51203-37210 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [12.2002 - 10.2006] BU303,WU300..ST..TS |
51203-37210 |
US $435.34 |
||
| replacement | |||||
|
51204
|
51204
51203-37121 Crossmember Sub-Assy, Frame, No.3[12.2002 - 10.2006] BU303,WU300..ST..TS |
51203-37121 |
US $320.32 |
||
|
51205
|
51205
51241-37040 Crossmember Sub-Assy, Frame, No.4[12.2002 - 10.2006] BU303,WU300..ST..TS |
51241-37040 |
US $264.99 |
||
|
51206
|
51206
51241-37040 Crossmember Sub-Assy, Frame, No.4[12.2002 - 10.2006] BU303,WU300..ST..TS |
51241-37040 |
US $264.99 |
||
|
51247A
|
51247A
51247-37010 Reinforcement, Frame No.4 Crossmember[09.2002 - 10.2006] BU303,WU300..ST..TS |
51247-37010 |
US $22.42 |
||
|
51341
|
51341
51341-37030 Gusset, Frame No.4 Crossmember, Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
51341-37030 |
US $37.27 |
||
|
51351
|
51351
51351-37060 Gusset, Crossmember, No.5 Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
51351-37060 |
US $36.55 |
||
|
51352
|
51352
51351-37060 Gusset, Crossmember, No.5 Rh[12.2002 - 10.2006] BU303,WU300..ST..TS |
51351-37060 |
US $36.55 |
||
|
51401
|
51401
51421-37050 Bracket Sub-Assy, Engine Front Mounting, Rh[12.2002 - 10.2006] XZU300,330..55T,65T;BU303,WU300..ST..TS |
51421-37050 |
US $91.73 |
||
|
51402
|
51402
51422-37110 Bracket Sub-Assy, Engine Front Mounting, Lh[12.2002 - 10.2006] XZU300,330..55T,65T;BU303,WU300..ST..TS |
51422-37110 |
US $91.73 |
||
|
51705A
|
51705A
51705-37080 Bracket Sub-Assy, Cab Mounting, No.3[12.2002 - 09.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,SA,TAIW |
51705-37080 |
US $687.23 |
||
| replacements | |||||
|
51705A
|
51705A
51705-37081 Bracket, Rear Body Mounting, No.5[12.2002 - 09.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,SA,TAIW |
51705-37081 |
US $687.23 |
||
|
51705A
|
51705A
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)[12.2002 - 09.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,SA,TAIW |
91551-80820 |
from US $0.78 |
||
|
51705A
|
51705A
91551-80840 Bolt(For Head To Camshaft Bearing Cap)[12.2002 - 09.2006] BU303,343,WU300,340,XZU300,330,340..GCC,GEN,SA,TAIW |
91551-80840 |
US $2.15 |
||
|
51908C
|
51908C
51908-37150 Bracket Sub-Assy, Spare Wheel Carrier[12.2002 - 04.2004] BU303,WU300..ST..TS |
51908-37150 |
US $196.56 |
||
|
51908C
|
51908C
51908-37250 Bracket Sub-Assy, Spare Wheel Carrier[04.2004 - 10.2006] BU303,WU300..ST..TS |
51908-37250 |
US $122.30 |
||
|
9011912377
|
9011912377
90119-12377 New Genuine Part |
90119-12377 |
US $3.40 |
||
|
9017912070
|
9017912070
90179-12070 Nut (For Front Lower Ball Joint Setting) |
90179-12070 |
from US $1.87 |
||
|
9164281245
|
9164281245
91642-81245 New Genuine Part |
91642-81245 |
US $2.48 |
||
|
9512101024
|
9512101024
95121-01024 New Genuine Part |
95121-01024 |
US $4.95 |
||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.67 |
||
|
9512101032
|
9512101032
95121-01032 RIVET |
95121-01032 |
US $4.30 |
||
|
9512101036
|
9512101036
95121-01036 RIVET |
95121-01036 |
US $4.08 |
||
|
9512101038
|
9512101038
95121-01038 New Genuine Part |
95121-01038 |
US $3.20 |
||
