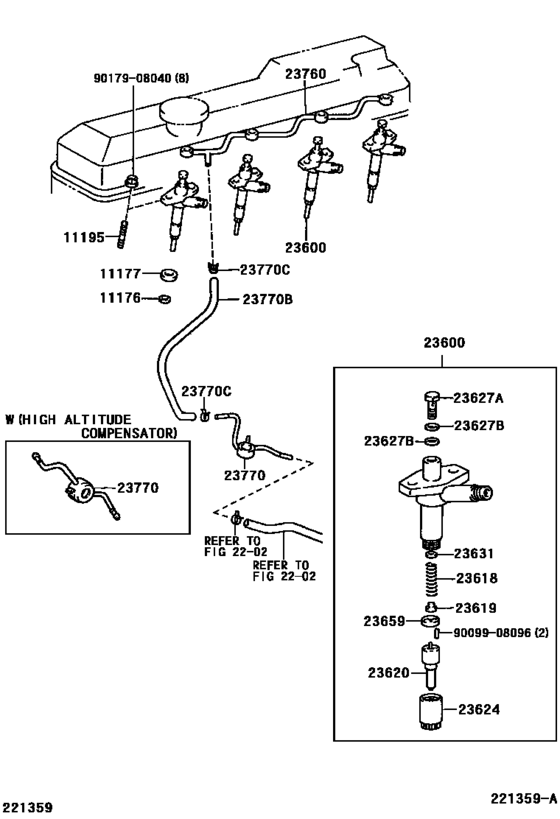

Injection Nozzle ([09.2002 - ] (0209- )14B) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-56030
Seat, Injection Nozzle
[09.2002 - 12.2006] 14B..BU303,343 |
11176-56030 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-56031 Seat, Injection NozzleINJECTION NOZZLE [09.2002 - 12.2006] 14B..BU303,343 |
11176-56031 |
from US $1.54 |
||
|
11177
|
11177
90430-17003 Gasket, Injection Nozzle Seat[09.2002 - 12.2006] 14B..BU303,343 |
90430-17003 |
from US $0.88 |
||
|
11195
|
11195
90116-08271 Bolt, Nozzle Set, Stud[09.2002 - 12.2006] 14B..BU303,343 |
90116-08271 |
US $1.75 |
||
|
23600
|
23600
23600-58030
Holder & Nozzle Set, Nozzle
[09.2002 - 05.2005] 14B..BU303,343 |
23600-58030 |
— | ||
| replacement | |||||
|
23600
|
23600
23600-59415 Holder & Nozzle Set, Nozzle[09.2002 - 05.2005] 14B..BU303,343 |
23600-59415 |
from US $272.56 |
||
|
23600
|
23600
23600-59415 Holder & Nozzle Set, Nozzle[05.2005 - 12.2006] 14B..BU303,343 |
23600-59415 |
from US $272.56 |
||
|
23618
|
23618
23618-58030 Spring, Nozzle Holder Pressure[09.2002 - 12.2006] 14B..BU303,343 |
23618-58030 |
US $2.62 |
||
|
23619
|
23619
23619-58030
Pin, Nozzle Holder Pressure
[09.2002 - 12.2006] 14B..BU303,343 |
23619-58030 |
— | ||
|
23620
|
23620
23620-58030 Nozzle Assy[09.2002 - 12.2006] 14B..BU303,343 |
23620-58030 |
from US $92.60 |
||
|
23624
|
23624
23624-58010
Nut, Nozzle Retaining
[09.2002 - 12.2006] 14B..BU303,343 |
23624-58010 |
— | ||
|
23627A
|
23627A
23625-58230 Screw, Follow(For Nozzle)[09.2002 - 12.2006] 14B..BU303,343 |
23625-58230 |
US $8.23 |
||
|
23627B
|
23627B
90201-08106 Washer(For Cap Nut)[09.2002 - 12.2006] 14B..BU303,343 |
90201-08106 |
from US $0.78 |
||
|
23631
|
23631
23631-58010
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.000 |
23631-58010 |
— | ||
|
23631
|
23631
23631-58011
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.050 |
23631-58011 |
— | ||
|
23631
|
23631
23631-58012
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.100 |
23631-58012 |
— | ||
|
23631
|
23631
23631-58013
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.150 |
23631-58013 |
— | ||
|
23631
|
23631
23631-58014
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.200 |
23631-58014 |
— | ||
|
23631
|
23631
23631-58015
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.250 |
23631-58015 |
— | ||
|
23631
|
23631
23631-58016
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.300 |
23631-58016 |
— | ||
|
23631
|
23631
23631-58017
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.350 |
23631-58017 |
— | ||
|
23631
|
23631
23631-58018
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.400 |
23631-58018 |
— | ||
|
23631
|
23631
23631-58019
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.450 |
23631-58019 |
— | ||
|
23631
|
23631
23632-58010
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.500 |
23632-58010 |
— | ||
|
23631
|
23631
23632-58011
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.550 |
23632-58011 |
— | ||
|
23631
|
23631
23632-58012
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.600 |
23632-58012 |
— | ||
|
23631
|
23631
23632-58013
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.650 |
23632-58013 |
— | ||
|
23631
|
23631
23632-58014
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.700 |
23632-58014 |
— | ||
|
23631
|
23631
23632-58015
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.750 |
23632-58015 |
— | ||
|
23631
|
23631
23632-58016
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.800 |
23632-58016 |
— | ||
|
23631
|
23631
23632-58017
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.275 |
23632-58017 |
— | ||
|
23631
|
23631
23632-58018
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.325 |
23632-58018 |
— | ||
|
23631
|
23631
23632-58019
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.375 |
23632-58019 |
— | ||
|
23631
|
23631
23633-58010
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.425 |
23633-58010 |
— | ||
|
23631
|
23631
23633-58011
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.475 |
23633-58011 |
— | ||
|
23631
|
23631
23633-58012
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.950 |
23633-58012 |
— | ||
|
23631
|
23631
23633-58013
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.700 |
23633-58013 |
— | ||
|
23631
|
23631
23633-58014
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.750 |
23633-58014 |
— | ||
|
23631
|
23631
23633-58015
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.800 |
23633-58015 |
— | ||
|
23631
|
23631
23633-58016
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.850 |
23633-58016 |
— | ||
|
23631
|
23631
23633-58017
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.900 |
23633-58017 |
— | ||
|
23631
|
23631
23633-58018
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=0.975 |
23633-58018 |
— | ||
|
23631
|
23631
23633-58019
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.025 |
23633-58019 |
— | ||
|
23631
|
23631
23634-58010
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.075 |
23634-58010 |
— | ||
|
23631
|
23631
23634-58011
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.125 |
23634-58011 |
— | ||
|
23631
|
23631
23634-58012
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.175 |
23634-58012 |
— | ||
|
23631
|
23631
23634-58013
Washer(For Nozzle Holder Pressure Spring)
[09.2002 - 12.2006] 14B..BU303,343 T=1.225 |
23634-58013 |
— | ||
|
23659
|
23659
23659-58030
Packing, Tip(For Nozzle)
[09.2002 - 12.2006] 14B..BU303,343 |
23659-58030 |
— | ||
|
23760
|
23760
23760-56060 Pipe Assy, Nozzle Leakage[09.2002 - 12.2006] 14B..BU303,343 |
23760-56060 |
US $25.63 |
||
|
23770
|
23770
23770-56090 Pipe Assy, Nozzle Leakage, No.2[09.2002 - 12.2006] 14B..BU303,343 |
23770-56090 |
from US $16.45 |
||
|
23770
|
23770
23770-56100 Pipe Assy, Nozzle Leakage, No.2NOZZLE LEAKAGE, NO.2 [12.2002 - 10.2006] 14B..BU303,343..GEN W(HIGH ALTITUDE COMPENSATOR) |
23770-56100 |
US $16.45 |
||
|
23770B
|
23770B
90447-11027 Hose, Fuel[09.2002 - 12.2006] 14B..BU303,343 |
90447-11027 |
US $6.46 |
||
|
23770C
|
23770C
96132-41000 Clip, No.1(For Idle-Up Hose)[09.2002 - 12.2006] 14B..BU303,343 |
96132-41000 |
from US $1.43 |
||
|
9009908096
|
9009908096
90099-08096
New Genuine Part
|
90099-08096 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
