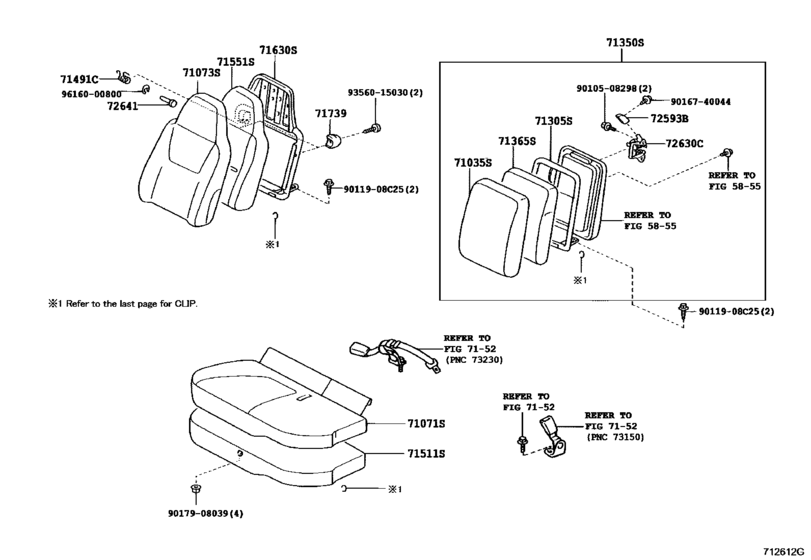

Seat & Seat Track ([12.2002 - 06.2004] PASSENGER SIDE W(SEAT BACK CONSOLE) (0212-0406)LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71035S
|
71035S
71095-37190-B1 Cover, Front Seat Back, CenterFRONT SEAT BACK, CENTER [12.2002 - 06.2004] BU303,343,WU300,340,XZU300,330,340..LHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
71095-37190-B1 |
US $154.34 |
||
|
71035S
|
71035S
71095-37250-B1 Cover, Front Seat Back, CenterFRONT SEAT BACK, CENTER [12.2002 - 10.2006] BU303,343,WU300,340,XZU320..LHD SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71095-37250-B1 |
US $90.27 |
||
|
71035S
|
71035S
71095-37430-B1 Cover, Front Seat Back, CenterFRONT SEAT BACK, CENTER [06.2004 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
71095-37430-B1 |
US $154.34 |
||
|
71071S
|
71071S
71071-37650-B0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [12.2002 - 06.2004] BU303,343,WU300,340,XZU300,330,340..LHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
71071-37650-B0 |
US $299.94 |
||
|
71071S
|
71071S
71071-37660-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[12.2002 - 10.2006] BU303,343,WU300,340,XZU320..LHD SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71071-37660-B0 |
— | ||
|
71071S
|
71071S
71071-37710-B1 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [06.2004 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1# |
71071-37710-B1 |
US $267.90 |
||
|
71073S
|
71073S
71027-37010-B1 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [06.2004 - 10.2006] BU303,343,WU300,340..LHD SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1# |
71027-37010-B1 |
US $323.23 |
||
|
71073S
|
71073S
71027-37200-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 06.2004] BU303,343,WU300,340..LHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
71027-37200-B0 |
US $323.23 |
||
|
71073S
|
71073S
71027-37210-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 10.2006] BU303,343,WU300,340..LHD SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71027-37210-B0 |
US $230.05 |
||
|
71073S
|
71073S
71073-37770-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 06.2004] BU303,343,WU300,340,XZU300,330,340..LHD W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
71073-37770-B0 |
US $231.50 |
||
|
71073S
|
71073S
71073-37780-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 10.2006] XZU320 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#; BU303,343,WU300,340..LHD W(SEAT BACK CONSOLE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71073-37780-B0 |
US $138.32 |
||
|
71073S
|
71073S
71073-37890-B1 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [06.2004 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1# |
71073-37890-B1 |
US $231.50 |
||
|
71305S
|
71305S
71305-37100 Frame Sub-Assy, Center Seat BackCENTER SEAT BACK [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
71305-37100 |
US $186.37 |
||
| replacement | |||||
|
71305S
|
71305S
71305-37030 Frame Sub-Assy, Center Seat BackCENTER SEAT BACK [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
71305-37030 |
US $115.02 |
||
|
71350S
|
71350S
71350-37360
Back Assy, Front Seat, Center
[12.2002 - 06.2004] BU303,343,WU300,340,XZU300,330,340..LHD *** |
71350-37360 |
— | ||
|
71365S
|
71365S
71365-37070 Pad, Center Seat BackCENTER SEAT BACK [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
71365-37070 |
US $78.62 |
||
|
71491C
|
71491C
71491-37010 Spring, Rear Seat SetREAR SEAT SET [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD W(SEAT BACK CONSOLE) |
71491-37010 |
US $0.87 |
||
|
71491C
|
71491C
71491-89101 Spring, Rear Seat Back Lock Hook[03.2005 - 10.2006] BU303,343,WU300,340..LHD |
71491-89101 |
US $3.32 |
||
|
71511S
|
71511S
71501-37040
Pad, Front Seat Cushion, Rh(For Separate Type)
[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
71501-37040 |
— | ||
|
71551S
|
71551S
71551-25020 Pad, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 10.2006] BU303,343,WU300,340..LHD |
71551-25020 |
US $157.25 |
||
|
71551S
|
71551S
71552-37100 Pad, Front Seat Back, Lh(For Separate Type)[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD W(SEAT BACK CONSOLE) |
71552-37100 |
US $122.30 |
||
|
71630S
|
71630S
71013-37100 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD W(SEAT BACK CONSOLE) |
71013-37100 |
US $174.72 |
||
| replacement | |||||
|
71630S
|
71630S
71013-37090 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD W(SEAT BACK CONSOLE) |
71013-37090 |
US $174.72 |
||
|
71630S
|
71630S
71630-25010 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [12.2002 - 03.2005] BU303,343,WU300,340..LHD |
71630-25010 |
US $291.20 |
||
| replacements | |||||
|
71630S
|
71630S
71491-89101 Spring, Rear Seat Back Lock Hook[12.2002 - 03.2005] BU303,343,WU300,340..LHD |
71491-89101 |
US $3.32 |
||
|
71630S
|
71630S
71630-25011
Spring Assy, Front Seat Back, Rh(For Separate Type)
[12.2002 - 03.2005] BU303,343,WU300,340..LHD |
71630-25011 |
— | ||
|
71630S
|
71630S
71630-25011
Spring Assy, Front Seat Back, Rh(For Separate Type)
[03.2005 - 10.2006] BU303,343,WU300,340..LHD |
71630-25011 |
— | ||
|
71739
|
71739
71739-37010 Cushion, Seat Support[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
71739-37010 |
US $11.79 |
||
|
72593B
|
72593B
72594-37020-B0 Knob, Reclining Remote Control Lever, RhRECLINING REMOTE CONTROL LEVER, RH [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD MD.CHARCOAL,TRIM1# |
72594-37020-B0 |
US $5.53 |
||
|
72630C
|
72630C
72640-37020 Lock Assy, Rear Seat Back, RhREAR SEAT BACK, RH [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
72640-37020 |
US $29.41 |
||
|
72641
|
72641
72641-37010 Pin, Rear Seat Back Lock[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
72641-37010 |
US $2.91 |
||
|
9011908C25
|
9011908C25
90119-08C25 BOLT WWASHER |
90119-08C25 |
from US $0.86 |
||
|
9010508298
|
9010508298
90105-08298 New Genuine Part |
90105-08298 |
US $0.87 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9017908039
|
9017908039
90179-08039 New Genuine Part |
90179-08039 |
US $1.16 |
||
|
9356015030
|
9356015030
93560-15030 New Genuine Part |
93560-15030 |
US $1.02 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.88 |
||
