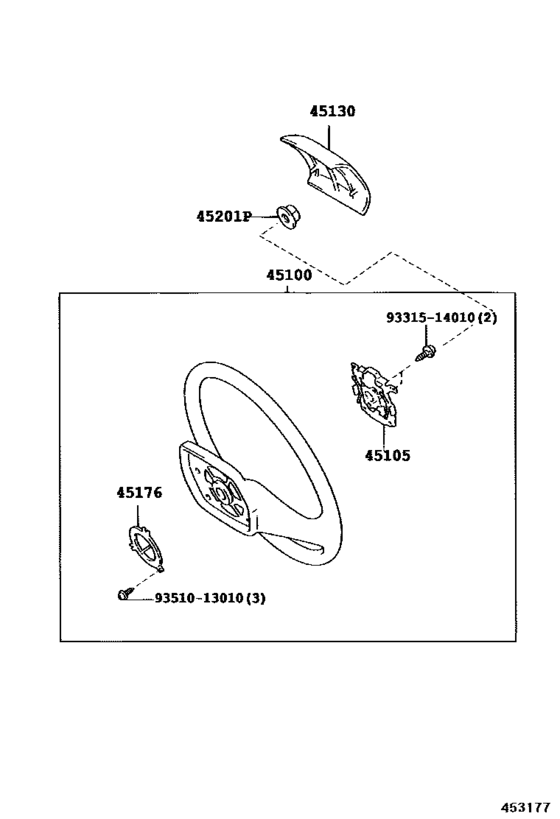

Steering Wheel ([09.2002 - 12.2006] 2-SPOKE POLYPROPYLEN (0209-0612)BU303,343 ; (0209-0612)WU300,340..GCC ,IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-36110-B2 Wheel Assy, SteeringSTEERING [09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN 2-SPOKE,POLYPROPYLENE,MD.CHARCOAL,TRIM1# |
45100-36110-B2 |
US $203.84 |
||
|
45100
|
45100
45100-36140-B0 Wheel Assy, Steering[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1# |
45100-36140-B0 |
US $375.65 |
||
|
45105
|
45105
45105-36010 Plate Sub-Assy, Horn Button Contact, No.1[09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN |
45105-36010 |
from US $15.13 |
||
|
45105
|
45105
45105-36030 Plate Sub-Assy, Horn Button Contact, No.1[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW W(URETHANE STEERING WHEEL) |
45105-36030 |
US $42 |
||
|
45130
|
45130
45130-36090-B2 Button Assy, HornHORN [09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN MD.CHARCOAL,TRIM1# |
45130-36090-B2 |
US $46.01 |
||
|
45130
|
45130
45130-36120-B0 Button Assy, Horn[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW URETHANE,MD.CHARCOAL,TRIM1# |
45130-36120-B0 |
US $134.48 |
||
|
45176
|
45176
45176-36010 Ring, Horn Contact[09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN |
45176-36010 |
from US $3.84 |
||
|
45176
|
45176
45176-36020 Ring, Horn Contact[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW URETHANE |
45176-36020 |
US $19.32 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90179-12071 |
from US $1.52 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.97 |
