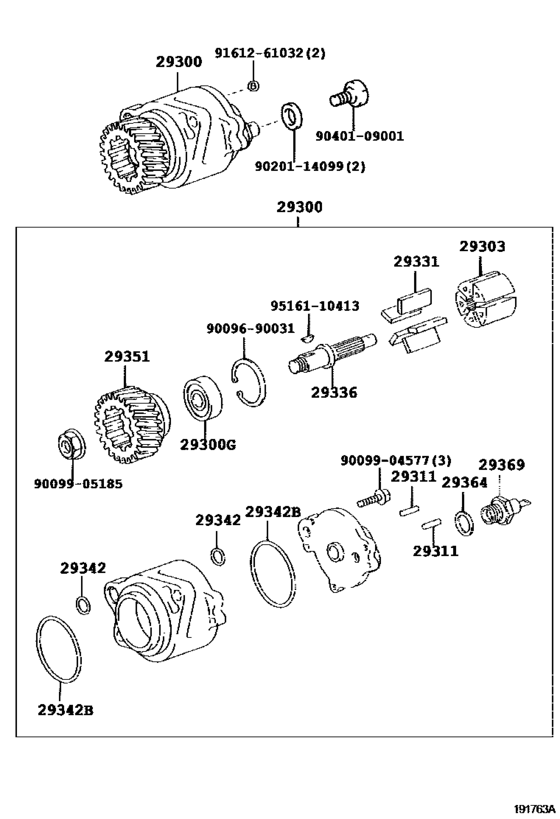

Vacuum Pump ([09.2002 - 12.2006] (0209-0612)14B,15BFTE) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-58060 Pump Assy, Vacuum[09.2002 - 12.2006] 14B..BU303,343 |
29300-58060 |
US $444.08 |
||
|
29300G
|
29300G
90099-10185 Bearing, Ball[09.2002 - 10.2006] N04C,14B,15BFTE..BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW |
90099-10185 |
US $7.69 |
||
|
29303
|
29303
29337-27010
Rotor Sub-Assy, Vacuum Pump
[09.2002 - 10.2006] 14B..BU303,343..GEN |
29337-27010 |
— | ||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[09.2002 - 10.2006] N04C,14B,15BFTE..BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW |
29311-76010 |
US $1.92 |
||
|
29331
|
29331
29331-27010
Blade, Vacuum Pump, A
[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#,XZU300,320,330,340 |
29331-27010 |
— | ||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
29336-58040 |
— | ||
|
29342
|
29342
29342-64010 Packing, Vacuum Pump[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#,XZU300,320,330,340 |
29342-64010 |
from US $2.30 |
||
|
29342B
|
29342B
29342-58010 Packing, Vacuum Pump[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#,XZU300,320,330,340 |
29342-58010 |
from US $3.84 |
||
|
29351
|
29351
29351-58050
Gear, Vacuum Pump
[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
29351-58050 |
— | ||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[09.2002 - 10.2006] 14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
29364-66010 |
US $3.23 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#,XZU300,320,330,340 |
29369-64030 |
US $23.76 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.50 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.81 |
||
|
9161261032
|
9161261032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
