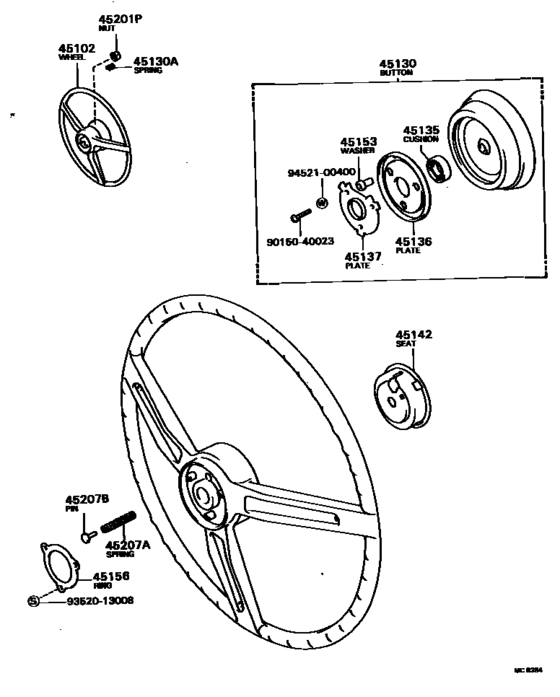

Steering Wheel ([04.1982 - 08.1984] (8204-8408)BU40,HU40,50,WU40,50) Diagram Toyota DYNA/ TOYOACE
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- BU40
- body
- TR
- ENGINE
- 3B
- DESTINATION
- GEN
- From
- 02.1983
- To
- 08.1984
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- IV3
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45102
|
45102
45100-36090 Wheel Sub-Assy, SteeringSTEERING [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45100-36090 |
US $334.88 |
||
| replacement | |||||
|
45102
|
45102
45100-36091-B0 Wheel Assy, SteeringSTEERING [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45100-36091-B0 |
US $331.97 |
||
|
45130
|
45130
45130-36070 Button Assy, HornHORN [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45130-36070 |
US $84.45 |
||
| replacement | |||||
|
45130
|
45130
45130-36070-B0 Button Assy, HornHORN [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45130-36070-B0 |
US $84.45 |
||
|
45130A
|
45130A
90501-20499 Spring, Compression(For Horn Button)COMPRESSION(FOR HORN BUTTON) [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
90501-20499 |
US $1.89 |
||
|
45135
|
45135
45135-30010 Cushion, Horn ButtonHORN BUTTON [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45135-30010 |
US $2.33 |
||
|
45136
|
45136
45136-36020 Plate, Horn Button ContactHORN BUTTON CONTACT [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45136-36020 |
US $19.66 |
||
|
45137
|
45137
45137-37010 Plate, Horn Button StopHORN BUTTON STOP [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45137-37010 |
US $7.86 |
||
|
45142
|
45142
45142-36020 Seat, Horn Button Contact, No.1HORN BUTTON CONTACT, NO.1 [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45142-36020 |
US $16.60 |
||
|
45153
|
45153
45153-12010 Washer, Horn Button SetHORN BUTTON SET [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45153-12010 |
US $2.48 |
||
|
45156
|
45156
45262-37010 Seat, Horn Lead SpringHORN LEAD SPRING [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
45262-37010 |
US $7.86 |
||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[08.1977 - 11.1984] BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
90179-12086 |
US $5.38 |
||
|
45207A
|
45207A
90501-06339 Spring, Compression(For Horn Earth)COMPRESSION(FOR HORN EARTH) [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
90501-06339 |
US $3.35 |
||
| replacement | |||||
|
45207A
|
45207A
90501-08113 Spring, Compression(For Horn Earth)[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
90501-08113 |
US $3.20 |
||
|
45207B
|
45207B
90241-02030 Pin, W/head(For Horn Earth)W/HEAD(FOR HORN EARTH) [04.1982 - 04.1983] BU40,HU40,50 |
90241-02030 |
US $3.06 |
||
|
45207B
|
45207B
90241-02040 Pin, W/head(For Horn Earth)W/HEAD(FOR HORN EARTH) [04.1983 - 08.1984] BU40,HU40,50,WU40,50 |
90241-02040 |
US $1.89 |
||
|
9015040023
|
9015040023
90150-40023
New Genuine Part
|
90150-40023 |
— | ||
|
9352013008
|
9352013008
93520-13008 New Genuine Part |
93520-13008 |
US $0.52 |
||
|
9452100400
|
9452100400
94521-00400 New Genuine Part |
94521-00400 |
US $2.33 |
||
