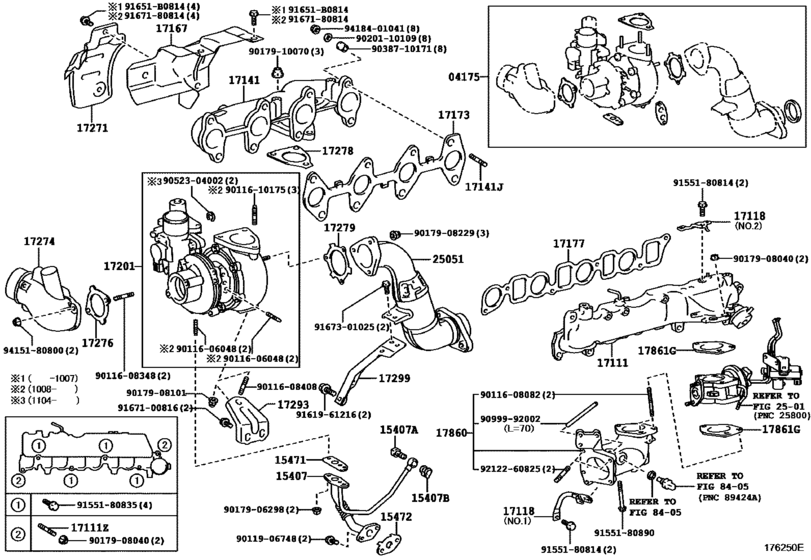

Manifold ([05.2009 - 09.2011] (0905-1109)1KDFTV..EUR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 125T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-30120
Gasket Kit, Turbocharger
[09.2006 - 12.2008] 1KDFTV..KDY221,231,251,261 |
04175-30120 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-30121
Gasket Kit, Turbocharger
[09.2006 - 12.2008] 1KDFTV..KDY221,231,251,261 |
04175-30121 |
— | ||
|
04175
|
04175
04175-30121
Gasket Kit, Turbocharger
[12.2008 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
04175-30121 |
— | ||
|
04175
|
04175
04175-30190
Gasket Kit, Turbocharger
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
04175-30190 |
— | ||
|
04175
|
04175
04175-30220 Gasket Kit, Turbocharger[09.2011 - 04.2014] 1KDFTV..KDY221,231,251,261..EUR |
04175-30220 |
US $37.56 |
||
| replacement | |||||
|
04175
|
04175
04175-30223 Gasket Kit, Turbocharger[09.2011 - 04.2014] 1KDFTV..KDY221,231,251,261..EUR |
04175-30223 |
US $46.87 |
||
|
04175
|
04175
04175-30221 Gasket Kit, Turbocharger[04.2014 - 10.2014] 1KDFTV..KDY221,231,251,261 |
04175-30221 |
US $37.56 |
||
| replacement | |||||
|
04175
|
04175
04175-30223 Gasket Kit, Turbocharger[04.2014 - 10.2014] 1KDFTV..KDY221,231,251,261 |
04175-30223 |
US $46.87 |
||
|
04175
|
04175
04175-30222 Gasket Kit, Turbocharger[10.2014 - 06.2015] 1KDFTV..KDY221,231,251,261 |
04175-30222 |
US $37.56 |
||
| replacement | |||||
|
04175
|
04175
04175-30223 Gasket Kit, Turbocharger[10.2014 - 06.2015] 1KDFTV..KDY221,231,251,261 |
04175-30223 |
US $46.87 |
||
|
15407
|
15407
15407-30070 Pipe Sub-Assy, Turbo Oil Inlet[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
15407-30070 |
US $70.06 |
||
|
15407
|
15407
15407-30110 Pipe Sub-Assy, Turbo Oil InletTURBO OIL INLET [05.2009 -] 1KDFTV..KDY221,231,251,261..EUR |
15407-30110 |
US $45.02 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90401-12097 |
from US $2.94 |
||
|
15407B
|
15407B
90904-30004 Gasket(For Turbo Oil Inlet Pipe)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90904-30004 |
from US $5.38 |
||
|
15471
|
15471
15471-30010
Gasket, Turbo Oil Inlet
[08.2001 - 12.2008] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
15471-30010 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-30011 Gasket, Turbo Oil InletTURBO OIL INLET [08.2001 - 12.2008] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
15471-30011 |
from US $2.63 |
||
|
15471
|
15471
15471-30011 Gasket, Turbo Oil InletTURBO OIL INLET [12.2008 -] 1KDFTV..KDY221,231,251,261 |
15471-30011 |
from US $2.63 |
||
|
15472
|
15472
15472-30010 Gasket, Turbo Oil Outlet, No.1[05.2010 -] 1KDFTV..KDY221,231,251,261 |
15472-30010 |
from US $2.01 |
||
|
15472
|
15472
15472-67010
Gasket, Turbo Oil Outlet, No.1
[08.2001 - 05.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
15472-67010 |
— | ||
| replacement | |||||
|
15472
|
15472
15472-30010 Gasket, Turbo Oil Outlet, No.1[08.2001 - 05.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
15472-30010 |
from US $2.01 |
||
|
17111
|
17111
17101-30060
Manifold, Intake
[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17101-30060 |
— | ||
|
17111
|
17111
17101-30100
Manifold, Intake
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
17101-30100 |
— | ||
|
17111
|
17111
17101-30110 Manifold, Intake[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
17101-30110 |
US $365.04 |
||
|
17111Z
|
17111Z
92122-80822 Bolt, Stud(For Water Outlet)[08.2001 - 02.2016] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
92122-80822 |
from US $1.03 |
||
|
17118
|
17118
17118-30040 Stay, Manifold[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR NO.1 |
17118-30040 |
US $24.17 |
||
|
17118
|
17118
17118-30060 Stay, Manifold[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR NO.1 |
17118-30060 |
US $26.64 |
||
|
17118
|
17118
17118-30120
Stay, Manifold
[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR NO.2 |
17118-30120 |
— | ||
|
17118
|
17118
17118-30130 Stay, Manifold[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR NO.2 |
17118-30130 |
US $5.97 |
||
|
17141
|
17141
17141-30080
Manifold, Exhaust
[09.2006 - 03.2007] 1KDFTV..KDY221,231,251,261 |
17141-30080 |
— | ||
|
17141
|
17141
17141-30081 Manifold, Exhaust[03.2007 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
17141-30081 |
US $294.11 |
||
|
17141
|
17141
17141-30090 Manifold, Exhaust[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
17141-30090 |
US $294.11 |
||
|
17141J
|
17141J
90126-10034 Bolt, Stud(For Exhaust Manifold, Rh)[09.2006 -] 1KDFTV..KDY221,231,251,261 |
90126-10034 |
US $2.15 |
||
|
17167
|
17167
17167-30030
Insulator, Exhaust Manifold Heat, No.1
[09.2006 - 03.2007] 1KDFTV..KDY221,231,251,261 |
17167-30030 |
— | ||
|
17167
|
17167
17167-30031 Insulator, Exhaust Manifold Heat, No.1[03.2007 -] 1KDFTV..KDY221,231,251,261 |
17167-30031 |
US $67.87 |
||
|
17173
|
17173
17173-30020 Gasket, Exhaust Manifold To Head[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
17173-30020 |
from US $15.31 |
||
|
17177
|
17177
17177-30011 Gasket, Intake Manifold To Head, No.1[05.2004 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
17177-30011 |
from US $6.69 |
||
|
17201
|
17201
17201-0L060
Turbocharger Sub-Assy
[05.2009 - 08.2010] 1KDFTV..KDY221,231,251,261..EUR |
17201-0L060 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0L061
Turbocharger Sub-Assy
[05.2009 - 08.2010] 1KDFTV..KDY221,231,251,261..EUR |
17201-0L061 |
— | ||
|
17201
|
17201
17201-0L061
Turbocharger Sub-Assy
[04.2014 -] 1KDFTV..KDY221,231,251,261 (L) |
17201-0L061 |
— | ||
|
17201
|
17201
17201-30150 Turbocharger Sub-Assy[09.2006 - 04.2009] 1KDFTV..KDY221,231,251,261 |
17201-30150 |
US $2,780.96 |
||
| replacement | |||||
|
17201
|
17201
17201-30181 Turbocharger Sub-Assy[09.2006 - 04.2009] 1KDFTV..KDY221,231,251,261 |
17201-30181 |
US $3,063.60 |
||
|
17201
|
17201
17201-30180 Turbocharger Sub-Assy[04.2009 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17201-30180 |
US $2,315.04 |
||
| replacement | |||||
|
17201
|
17201
17201-30181 Turbocharger Sub-Assy[04.2009 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17201-30181 |
US $3,063.60 |
||
|
17201
|
17201
17201-30200
Turbocharger Sub-Assy
[08.2010 - 03.2014] 1KDFTV..KDY221,231,251,261..EUR |
17201-30200 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-30201 Turbocharger Sub-Assy[08.2010 - 03.2014] 1KDFTV..KDY221,231,251,261..EUR |
17201-30201 |
US $1,976 |
||
|
17201
|
17201
17201-30201 Turbocharger Sub-Assy[04.2014 -] 1KDFTV..KDY221,231,251,261 (J) |
17201-30201 |
US $1,976 |
||
|
17271
|
17271
17271-0L020 Insulator, Turbo, No.1TURBO, NO.1 [05.2009 -] 1KDFTV..KDY221,231,251,261..EUR |
17271-0L020 |
US $37.71 |
||
|
17271
|
17271
17271-30030 Insulator, Turbo, No.1[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17271-30030 |
US $56.43 |
||
|
17274
|
17274
17274-30050
Elbow, Compressor Inlet
[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
17274-30050 |
— | ||
|
17274
|
17274
17274-30060
Elbow, Compressor Inlet
[09.2006 - 09.2007] 1KDFTV..KDY221,231,251,261 |
17274-30060 |
— | ||
| replacements | |||||
|
17274
|
17274
12229-30100 Pipe, Ventilation[09.2006 - 09.2007] 1KDFTV..KDY221,231,251,261 |
12229-30100 |
US $28.90 |
||
|
17274
|
17274
12262-30060 Hose, Ventilation, No.2[09.2006 - 09.2007] 1KDFTV..KDY221,231,251,261 |
12262-30060 |
from US $9.03 |
||
|
17274
|
17274
17274-30061
Elbow, Compressor Inlet
[09.2006 - 09.2007] 1KDFTV..KDY221,231,251,261 |
17274-30061 |
— | ||
|
17274
|
17274
17274-30061
Elbow, Compressor Inlet
[09.2007 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17274-30061 |
— | ||
|
17274
|
17274
17274-30100
Elbow, Compressor Inlet
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
17274-30100 |
— | ||
|
17276
|
17276
17276-67010 Gasket, Compressor Inlet[09.2006 -] 1KDFTV..KDY221,231,251,261 |
17276-67010 |
from US $2.09 |
||
|
17278
|
17278
17278-67010 Gasket, Turbo To Exhaust Manifold[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
17278-67010 |
from US $8.79 |
||
|
17279
|
17279
17279-30030
Gasket, Turbine Outlet Elbow
[09.2006 - 10.2014] 1KDFTV..KDY221,231,251,261 |
17279-30030 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[09.2006 - 10.2014] 1KDFTV..KDY221,231,251,261 |
17279-30031 |
from US $3.55 |
||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[11.2014 -] 1KDFTV..KDY221,231,251,261 |
17279-30031 |
from US $3.55 |
||
|
17293
|
17293
17293-30060 Stay, Turbocharger[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17293-30060 |
US $17.33 |
||
|
17293
|
17293
17293-30100 Stay, TurbochargerTURBOCHARGER [05.2009 -] 1KDFTV..KDY221,231,251,261..EUR |
17293-30100 |
US $15.72 |
||
|
17299
|
17299
17299-30060
Stay, Turbine Outlet Elbow
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
17299-30060 |
— | ||
|
17299
|
17299
17299-30080 Stay, Turbine Outlet Elbow[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
17299-30080 |
US $48.89 |
||
|
17860
|
17860
17860-30060 Connector Assy, Intake Air[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
17860-30060 |
US $104.83 |
||
|
17860
|
17860
17860-30090 Connector Assy, Intake Air[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
17860-30090 |
US $204.80 |
||
|
17860
|
17860
17861-30120 Connector Assy, Intake Air[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
17861-30120 |
US $159.08 |
||
|
17861G
|
17861G
25627-30040 Gasket, Intake Air Connector[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25627-30040 |
US $3.76 |
||
|
17861G
|
17861G
26171-30030 Gasket, Intake Air Connector[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
26171-30030 |
from US $3.22 |
||
|
25051
|
25051
25051-30060
Converter Sub-Assy, Exhaust Manifold
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/30060/Y |
25051-30060 |
— | ||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.66 |
||
|
9011608082
|
9011608082
90116-08082 Bolt, Stud(For Rocker Support) |
90116-08082 |
US $1.31 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011608408
|
9011608408
90116-08408 BOLT STUD |
90116-08408 |
US $1.25 |
||
|
9011610175
|
9011610175
90116-10175 Bolt, Stud(For Turbine Housing) |
90116-10175 |
from US $1.21 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908229
|
9017908229
90179-08229 NUT |
90179-08229 |
from US $1.19 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9020110109
|
9020110109
90201-10109 WASHER PLATE |
90201-10109 |
US $1.97 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9052304002
|
9052304002
90523-04002 RING |
90523-04002 |
US $1.43 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155180890
|
9155180890
91551-80890 BOLT FLANGE |
91551-80890 |
US $2.15 |
||
|
9161961216
|
9161961216
91619-61216 New Genuine Part |
91619-61216 |
US $2.15 |
||
|
9167100816
|
9167100816
91671-00816 New Genuine Part |
91671-00816 |
US $1.97 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
|
9167301025
|
9167301025
91673-01025 New Genuine Part |
91673-01025 |
US $2.15 |
||
|
9212260825
|
9212260825
92122-60825 Bolt, Stud(For Manifold To Carburetor) |
92122-60825 |
US $1.31 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9418401041
|
9418401041
94184-01041 Nut |
94184-01041 |
from US $0.78 |
||
