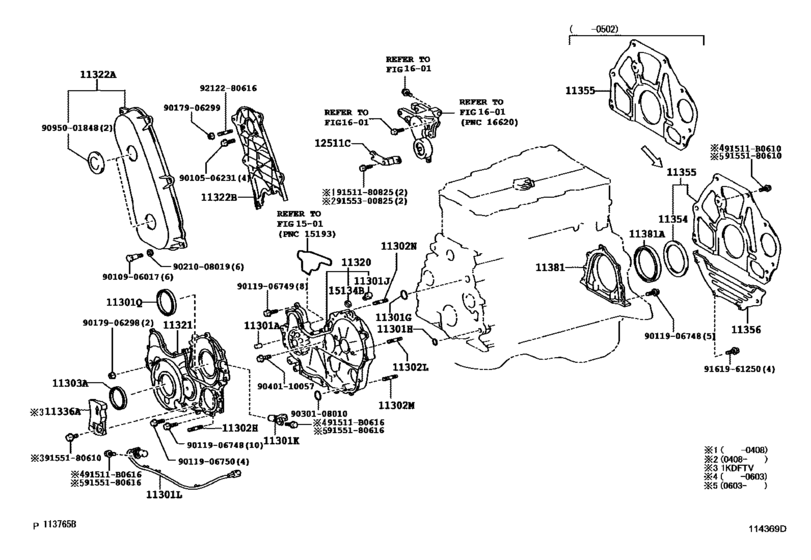

Timing Gear Cover & Rear End Plate ([09.2006 - 09.2011] (0406-0610)2KDFTV ; (0609-1109)1KDFTV ; (1109-13 10)1KDFTV..KDY221,231..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 125T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301A
|
11301A
90250-08120 Pin, Straight, No.1[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11301G
|
11301G
90301-22007 Ring, O(For Timing Gear Case, Upper)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90301-22007 |
from US $2.52 |
||
|
11301H
|
11301H
90301-09018 Ring, O(For Timing Gear Case, Lower)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90301-09018 |
from US $2.18 |
||
|
11301J
|
11301J
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90341-18015 |
US $2.62 |
||
|
11301K
|
11301K
90919-05052
Sensor, Crank Position
[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90919-05052 |
— | ||
| replacement | |||||
|
11301K
|
11301K
90919-05025 Sensor, Crank Position[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90919-05025 |
from US $65.02 |
||
|
11301L
|
11301L
90919-05066
Sensor, Crank Position No.2
[07.2004 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
90919-05066 |
— | ||
| replacement | |||||
|
11301L
|
11301L
90919-05050 Sensor, Crank Position No.2[07.2004 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
90919-05050 |
from US $65.02 |
||
|
11301L
|
11301L
90919-05078
Sensor, Crank Position No.2
[09.2011 - 04.2013] 1KDFTV..KDY221,231,251,261..EUR MARK=90919-05078 |
90919-05078 |
— | ||
| replacements | |||||
|
11301L
|
11301L
19529-30060 Clamp[09.2011 - 04.2013] 1KDFTV..KDY221,231,251,261..EUR MARK=90919-05078 |
19529-30060 |
US $4.84 |
||
|
11301L
|
11301L
90919-05085 Sensor, Crank Position No.2[09.2011 - 04.2013] 1KDFTV..KDY221,231,251,261..EUR MARK=90919-05078 |
90919-05085 |
US $76.44 |
||
|
11301L
|
11301L
91671-80612 Bolt[09.2011 - 04.2013] 1KDFTV..KDY221,231,251,261..EUR MARK=90919-05078 |
91671-80612 |
from US $0.66 |
||
|
11301L
|
11301L
90919-05085 Sensor, Crank Position No.2[04.2013 -] 1KDFTV..KDY221,231,251,261..EUR MARK=90919-05085 |
90919-05085 |
US $76.44 |
||
|
11301Q
|
11301Q
90311-65003 Seal, Type T Oil(For Injection Pump)[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90311-65003 |
from US $13.80 |
||
|
11301Q
|
11301Q
90311-65004 Seal, Type T Oil(For Injection Pump)[08.2010 -] 1KDFTV..KDY221,231,251,261 |
90311-65004 |
from US $13.80 |
||
|
11302H
|
11302H
90116-08374 Bolt, Stud(For Timing Gear Cover)[07.2006 - 01.2009] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90116-08374 |
US $0.87 |
||
|
11302H
|
11302H
90116-08377 Bolt, Stud(For Timing Gear Cover)[01.2009 -] 1KDFTV..KDY221,231,251,261 |
90116-08377 |
US $1.97 |
||
|
11302L
|
11302L
90116-08374 Bolt, Stud(For Timing Gear Cover)[08.2001 - 01.2009] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90116-08374 |
US $0.87 |
||
|
11302L
|
11302L
90116-08377 Bolt, Stud(For Timing Gear Cover)[01.2009 -] 1KDFTV..KDY221,231,251,261 |
90116-08377 |
US $1.97 |
||
|
11302M
|
11302M
90116-10160 Bolt,stud(For Timing Gear Case)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90116-10160 |
from US $1.42 |
||
|
11302N
|
11302N
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[08.2009 -] 1KDFTV..KDY221,231,251,261 |
90126-06029 |
from US $0.66 |
||
|
11302N
|
11302N
92112-60614
Bolt, Stud(For Vacuum Transmitting Pipe)
[08.2001 - 08.2009] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
92112-60614 |
— | ||
| replacement | |||||
|
11302N
|
11302N
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[08.2001 - 08.2009] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90126-06029 |
from US $0.66 |
||
|
11303A
|
11303A
90311-50017
Seal, Oil(For Timing Chain Or Belt Cover)
[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90311-50017 |
— | ||
| replacement | |||||
|
11303A
|
11303A
90311-50051 Seal, Oil(For Crankshaft Front)[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90311-50051 |
from US $10.39 |
||
|
11303A
|
11303A
90311-50043 Seal, Oil(For Crankshaft Front)[08.2010 - 02.2012] 1KDFTV..KDY221,231,251,261 |
90311-50043 |
US $8.44 |
||
| replacement | |||||
|
11303A
|
11303A
90311-50051 Seal, Oil(For Crankshaft Front)[08.2010 - 02.2012] 1KDFTV..KDY221,231,251,261 |
90311-50051 |
from US $10.39 |
||
|
11303A
|
11303A
90311-50051 Seal, Oil(For Crankshaft Front)[02.2012 -] 1KDFTV..KDY221,231,251,261 |
90311-50051 |
from US $10.39 |
||
|
11320
|
11320
11320-30030
Case Assy, Timing Gear
[09.2006 - 05.2007] 1KDFTV..KDY221,231,251,261 |
11320-30030 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-30032 Case Assy, Timing Gear[09.2006 - 05.2007] 1KDFTV..KDY221,231,251,261 |
11320-30032 |
from US $202.14 |
||
|
11320
|
11320
11320-30032 Case Assy, Timing Gear[05.2007 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
11320-30032 |
from US $202.14 |
||
|
11320
|
11320
11320-30090 Case Assy, Timing Gear[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
11320-30090 |
from US $248.66 |
||
|
11321
|
11321
11302-30030 Case, Timing Gear[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
11302-30030 |
US $142.68 |
||
|
11321
|
11321
11321-30020 Case, Timing Gear[08.2001 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
11321-30020 |
from US $121.06 |
||
|
11322A
|
11322A
11332-30011 Cover, Timing Belt, No.1[06.2004 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
11332-30011 |
from US $52.61 |
||
|
11322A
|
11322A
11332-30040 Cover, Timing Belt, No.1[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
11332-30040 |
US $149.24 |
||
|
11322B
|
11322B
11322-30010 Cover, Timing Belt, No.2[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
11322-30010 |
from US $48.44 |
||
|
11336A
|
11336A
11336-30010 Insulator, Timing Gear Cover[09.2006 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
11336-30010 |
US $12.72 |
||
|
11354
|
11354
11354-30010 Seal, Flywheel Housing Dust[02.2005 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
11354-30010 |
from US $1.46 |
||
|
11355
|
11355
11355-67011 Plate, Rear End[02.2005 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
11355-67011 |
US $61.32 |
||
|
11356
|
11356
11356-67030 Plate, Rear End, No.2[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
11356-67030 |
US $34.59 |
||
|
11381
|
11381
11381-0K010 Retainer, Engine Rear Oil SealENGINE REAR OIL SEAL [09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
11381-0K010 |
US $50.52 |
||
|
11381
|
11381
11381-67020 Retainer, Engine Rear Oil Seal[08.2001 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
11381-67020 |
from US $35.41 |
||
|
11381A
|
11381A
90311-95008 Seal, Engine Rear Oil[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
90311-95008 |
from US $27.72 |
||
|
11381A
|
11381A
90311-95014
Seal, Engine Rear Oil
[08.2010 - 09.2012] 1KDFTV..KDY221,231,251,261 |
90311-95014 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-95015 Seal, Engine Rear Oil[08.2010 - 09.2012] 1KDFTV..KDY221,231,251,261 |
90311-95015 |
from US $27.72 |
||
|
11381A
|
11381A
90311-95015 Seal, Engine Rear Oil[09.2012 -] 1KDFTV..KDY221,231,251,261 |
90311-95015 |
from US $27.72 |
||
|
12511C
|
12511C
12511-30031 Bracket, Alternator[08.2004 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
12511-30031 |
US $16.49 |
||
|
15134B
|
15134B
15134-67010 Gasket, Oil Pump Relief Valve[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
15134-67010 |
from US $1.70 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9010506231
|
9010506231
90105-06231 BOLT WASHER BASED |
90105-06231 |
US $1.97 |
||
|
9010906017
|
9010906017
90109-06017 BOLT |
90109-06017 |
from US $0.92 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9011906749
|
9011906749
90119-06749 BOLT WWASHER |
90119-06749 |
US $1.61 |
||
|
9011906750
|
9011906750
90119-06750
New Genuine Part
|
90119-06750 |
— | ||
| replacement | |||||
|
9011906750
|
9011906750
91551-80660 BOLT FLANGE |
91551-80660 |
US $1.43 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9021008019
|
9021008019
90210-08019 WASHER |
90210-08019 |
from US $1.85 |
||
| replacement | |||||
|
9021008019
|
9021008019
90080-21002
WASHER
|
90080-21002 |
— | ||
|
9030108010
|
9030108010
90301-08010 RING |
90301-08010 |
US $3.40 |
||
|
9040110057
|
9040110057
90401-10057 BOLT UNION |
90401-10057 |
US $4.80 |
||
|
9095001848
|
9095001848
90950-01848 New Genuine Part |
90950-01848 |
US $8.60 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.40 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155300825
|
9155300825
91553-00825 New Genuine Part |
91553-00825 |
US $1.43 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9212280616
|
9212280616
92122-80616 Bolt, Stud(For Head To Cylinder Head Cover) |
92122-80616 |
US $1.43 |
||
