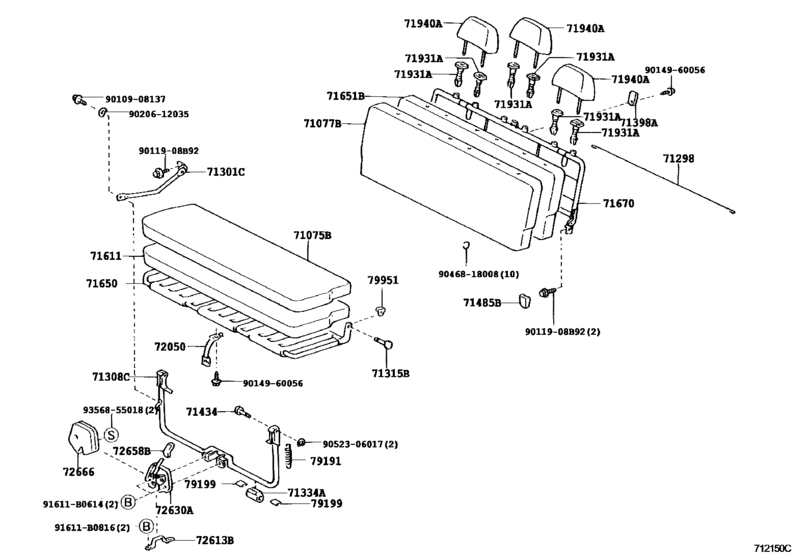

Seat & Seat Track ([08.2001 - 02.2015] REAR SEAT (0108-1502)KDY23#,25#,26#..10T,125T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- Europe
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71075B
|
71075B
71075-25070-B1
Cover, Rear Seat Cushion (For Bench Type)
[08.2004 - 08.2007] KDY23#,25#,26#..10T,125T MEDIUM CHA,TRIM1# |
71075-25070-B1 |
— | ||
|
71075B
|
71075B
71075-25080-B0
Cover, Rear Seat Cushion (For Bench Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71075-25080-B0 |
— | ||
| replacement | |||||
|
71075B
|
71075B
71075-25080-B1
Cover, Rear Seat Cushion (For Bench Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71075-25080-B1 |
— | ||
|
71075B
|
71075B
71075-25080-B1
Cover, Rear Seat Cushion (For Bench Type)
[06.2012 - 02.2015] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71075-25080-B1 |
— | ||
|
71077B
|
71077B
71077-25090-B1
Cover, Rear Seat Back (For Bench Type)
[08.2004 - 08.2007] KDY23#,25#,26#..10T,125T MD,CHARCOAL,TRIM1# |
71077-25090-B1 |
— | ||
|
71077B
|
71077B
71077-25110-B0
Cover, Rear Seat Back (For Bench Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71077-25110-B0 |
— | ||
| replacement | |||||
|
71077B
|
71077B
71077-25110-B1
Cover, Rear Seat Back (For Bench Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71077-25110-B1 |
— | ||
|
71077B
|
71077B
71077-25110-B1
Cover, Rear Seat Back (For Bench Type)
[06.2012 - 02.2015] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71077-25110-B1 |
— | ||
|
71298
|
71298
71298-37010 Wire, Rear Seat Back, Lower[08.2001 - 08.2007] KDY23#,25#,26#..10T,125T |
71298-37010 |
US $5.53 |
||
|
71301C
|
71301C
71301-37010 Link Sub-Assy, Rear Seat Cushion[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
71301-37010 |
US $26.06 |
||
|
71308C
|
71308C
71308-25010 Leg Sub-Assy, Rear Seat, FrontREAR SEAT, FRONT [08.2001 - 08.2007] KDY231,251,261..10T,125T |
71308-25010 |
US $119.39 |
||
|
71308C
|
71308C
71308-37030 Leg Sub-Assy, Rear Seat, Front[06.2012 - 02.2015] KDY231,251,261..10T,125T |
71308-37030 |
US $87.36 |
||
|
71315B
|
71315B
90109-10175 Pin, Rear Seat Hinge[08.2001 - 08.2007] KDY231,251,261..10T,125T |
90109-10175 |
US $2.91 |
||
|
71334A
|
71334A
79189-95J00 Stopper, Rear Seat Leg[08.2001 - 08.2007] KDY231,251,261..10T,125T |
79189-95J00 |
US $5.53 |
||
|
71398A
|
71398A
71398-95702-B1 Holder, Rear Seat Back[08.2001 - 08.2007] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71398-95702-B1 |
US $5.82 |
||
|
71434
|
71434
79939-26040 Pin, Rear Seat Cushion Leg, Rear[08.2001 - 08.2007] KDY231,251,261..10T,125T |
79939-26040 |
US $6.12 |
||
|
71485B
|
71485B
71485-37010-B0 Cover, Rear Seat Hinge[08.2001 - 08.2009] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
71485-37010-B0 |
US $32.61 |
||
| replacement | |||||
|
71485B
|
71485B
71485-37012-B0 Cover, Rear Seat Hinge[08.2001 - 08.2009] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
71485-37012-B0 |
US $7.43 |
||
|
71485B
|
71485B
71485-37011-B0 Cover, Rear Seat HingeREAR SEAT HINGE [09.2009 - 11.2012] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71485-37011-B0 |
US $32.61 |
||
| replacement | |||||
|
71485B
|
71485B
71485-37012-B0 Cover, Rear Seat Hinge[09.2009 - 11.2012] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71485-37012-B0 |
US $7.43 |
||
|
71485B
|
71485B
71485-37012-B0 Cover, Rear Seat Hinge[12.2012 - 02.2015] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71485-37012-B0 |
US $7.43 |
||
|
71611
|
71611
71611-25010 Pad, Rear Seat Cushion[06.2012 - 02.2015] KDY231,251,261..10T,125T |
71611-25010 |
US $176.18 |
||
|
71611
|
71611
71611-37030 Pad, Rear Seat Cushion[08.2001 - 08.2007] KDY23#,25#,26#..10T,125T |
71611-37030 |
US $301.39 |
||
|
71611
|
71611
71611-37060 Pad, Rear Seat Cushion[11.2007 - 06.2012] KDY231,251,261..10T,125T |
71611-37060 |
US $234.42 |
||
|
71650
|
71650
71650-37020 Spring Assy, Rear Seat Cushion[08.2001 - 08.2007] KDY23#,25#,26#..10T,125T |
71650-37020 |
US $550.37 |
||
| replacement | |||||
|
71650
|
71650
71650-37060 Spring Assy, Rear Seat Cushion[08.2001 - 08.2007] KDY23#,25#,26#..10T,125T |
71650-37060 |
US $345.07 |
||
|
71650
|
71650
71650-37060 Spring Assy, Rear Seat Cushion[11.2007 - 02.2015] KDY231,251,261..10T,125T |
71650-37060 |
US $345.07 |
||
|
71651B
|
71651B
71651-37020 Pad, Rear Seat Back(For Bench Type)[08.2001 - 08.2007] KDY231,251,261..10T,125T |
71651-37020 |
US $176.18 |
||
|
71670
|
71670
71670-25010 Spring Assy, Rear Seat Back(For Bench Seat)REAR SEAT BACK(FOR BENCH SEAT) [08.2001 - 08.2007] KDY23#,25#,26#..10T,125T |
71670-25010 |
US $397.49 |
||
|
71670
|
71670
71670-25020
Spring Assy, Rear Seat Back(For Bench Seat)
[11.2007 - 02.2015] KDY231,251,261..10T,125T |
71670-25020 |
— | ||
|
71931A
|
71931A
71930-28030-B8 Support, Front Seat Headrest[08.2001 - 08.2007] KDY231,251,261..10T,125T W(LOCK),MD.CHARCOAL,TRIM1# |
71930-28030-B8 |
US $12.38 |
||
|
71931A
|
71931A
71931-28030-B8 Support, Front Seat Headrest[08.2001 - 08.2007] KDY231,251,261..10T,125T W/O(LOCK),MD.CHARCOAL,TRIM1# |
71931-28030-B8 |
US $9.32 |
||
|
71940A
|
71940A
71940-25010-B0 Headrest Assy, Rear SeatREAR SEAT [08.2001 - 08.2007] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71940-25010-B0 |
US $157.25 |
||
|
71940A
|
71940A
71940-25011-B0
Headrest Assy, Rear Seat
[09.2009 - 02.2015] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71940-25011-B0 |
— | ||
|
72050
|
72050
72050-37020-B0 Belt Assy, Rear Seat Hook[08.2001 - 08.2007] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
72050-37020-B0 |
US $10.34 |
||
|
72613B
|
72613B
72613-25010 Striker, Rear Seat LockREAR SEAT LOCK [08.2001 - 06.2012] KDY23#,25#,26#..10T,125T |
72613-25010 |
US $5.53 |
||
|
72630A
|
72630A
72630-25010 Lock Assy, Rear No.1 SeatREAR NO.1 SEAT [08.2001 - 08.2007] KDY231,251,261..10T,125T |
72630-25010 |
US $24.90 |
||
|
72658B
|
72658B
72658-95701-B3
Knob, Rear Seat Lock Handle
[10.2005 - 08.2007] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
72658-95701-B3 |
— | ||
|
72658B
|
72658B
72658-95701-C0 Knob, Rear Seat Handle[11.2007 - 06.2012] KDY231,251,261..10T,125T BLACK |
72658-95701-C0 |
US $6.99 |
||
|
72666
|
72666
72666-95400-20 Cover, Rear Seat Back Lock, LhREAR SEAT BACK LOCK, LH [11.2007 - 06.2012] KDY231,251,261..10T,125T BLACK |
72666-95400-20 |
US $12.23 |
||
|
72666
|
72666
72666-95400-B0
Cover, Rear Seat Back Lock, Lh
[10.2005 - 08.2007] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
72666-95400-B0 |
— | ||
|
79191
|
79191
90506-23053 Spring, No.1 Seat Cushion, No.1[08.2001 - 08.2007] KDY231,251,261..10T,125T REAR SEAT |
90506-23053 |
US $2.48 |
||
|
79199
|
79199
79199-95J00 Holder, No.1 Seat Leg Stopper[08.2001 - 08.2007] KDY231,251,261..10T,125T |
79199-95J00 |
US $5.23 |
||
|
79951
|
79951
79951-37010 Cover, No.1 Seat Cushion[08.2001 - 08.2007] KDY231,251,261..10T,125T |
79951-37010 |
US $2.91 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011908B92
|
9011908B92
90119-08B92 New Genuine Part |
90119-08B92 |
US $1.02 |
||
|
9010908137
|
9010908137
90109-08137 BOLTFOLDING SEAT |
90109-08137 |
US $1.61 |
||
|
9014960056
|
9014960056
90149-60056 New Genuine Part |
90149-60056 |
US $0.79 |
||
|
9020612035
|
9020612035
90206-12035 Plate, Rear Seat Center Armrest, No.2 |
90206-12035 |
US $1.46 |
||
|
9046818008
|
9046818008
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.72 |
||
| replacement | |||||
|
9046818008
|
9046818008
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9052306017
|
9052306017
90523-06017 Ring, E |
90523-06017 |
US $1.43 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.60 |
||
