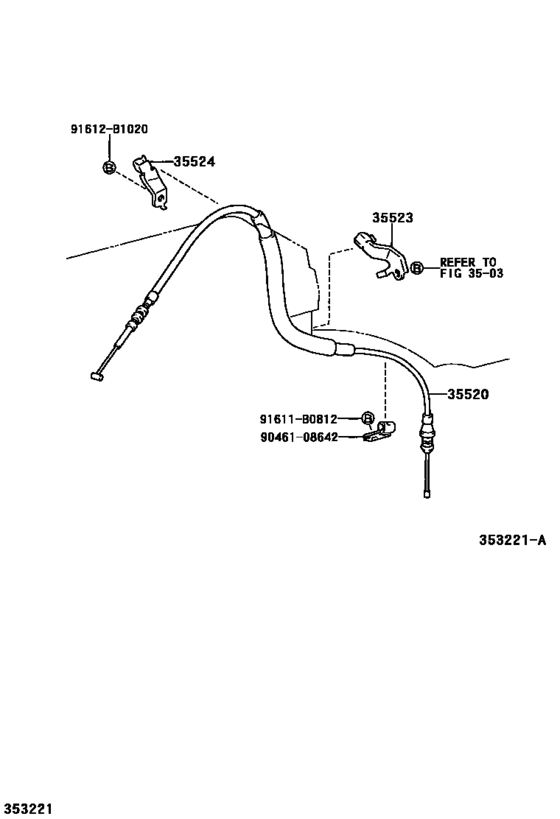

Throttle Link & Valve Lever (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..LPG ; (0308- )RZY231,28 1..ATM) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2007
- Sales region
- Japan
- Frame
- RZY231
- ENGINE
- 3RZFPE
- TRANSMISSION
- ATM
- Model
- DYNA/TOYOACE
- From
- 08.2003
- To
- 08.2007
- Loading Capacity
- 15T
- Deck,cab
- T4
- Fuel Induction
- LPG
- Deck,cab
- TB
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-25030 Cable Assy, Throttle[08.2003 - 08.2007] RZY231,281..ATM |
35520-25030 |
US $55.62 |
||
|
35523
|
35523
35523-26090 Clamp, Throttle Cable[07.2001 - 08.2007] RZY231,281..ATM |
35523-26090 |
US $12.67 |
||
|
35524
|
35524
35524-26060 Clamp, Throttle Cable, No.5[07.2001 - 08.2007] RZY231,281..ATM |
35524-26060 |
US $6.84 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9046108642
|
9046108642
90461-08642 New Genuine Part |
90461-08642 |
US $3.14 |
