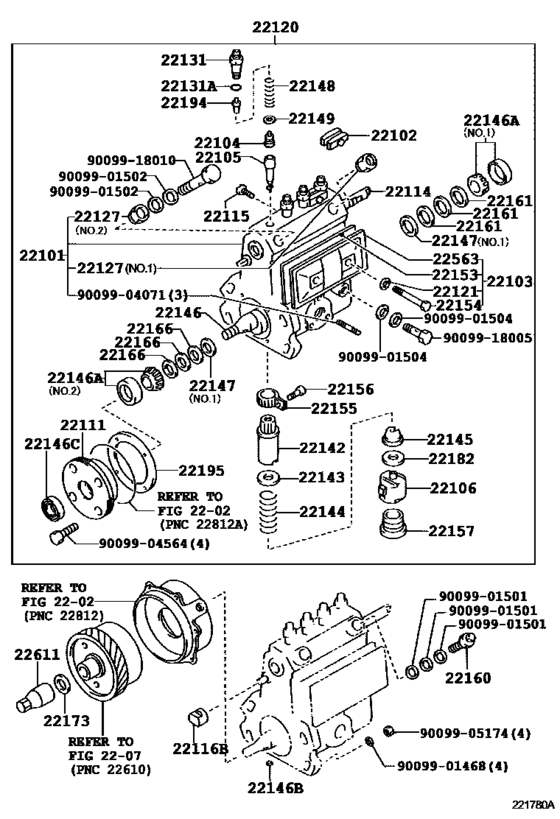

Injection Pump Body ([08.2003 - ] (0308- )W04D..WU410,420..SA) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2008
- Sales region
- Europe
- Frame
- WU420
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 04.2003
- To
- 12.2008
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22190-78140 Housing Sub-Assy, Injection Pump[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22190-78140 |
US $247.52 |
||
|
22102
|
22102
22102-58230
Plate Set, Valve Holder Lock
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22102-58230 |
— | ||
|
22103
|
22103
22103-78150
Cover Sub-Assy, Injection Pump
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22103-78150 |
— | ||
| replacement | |||||
|
22103
|
22103
S2217-01640
Cover Sub-Assy, Injection Pump
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2217-01640 |
— | ||
|
22104
|
22104
22104-78030 Valve Sub-Assy, Injection Pump Delivery[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22104-78030 |
US $23.30 |
||
|
22105
|
22105
22105-78140 Element Sub-Assy, Injection Pump[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22105-78140 |
US $68.87 |
||
|
22106
|
22106
22106-46010
Tappet Sub-Assy, Injection Pump
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22106-46010 |
— | ||
|
22111
|
22111
22111-78130 Cover, Injection Pump Camshaft Bearing[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22111-78130 |
US $22.28 |
||
| replacement | |||||
|
22111
|
22111
S2211-11600
Cover, Injection Pump Camshaft Bearing
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2211-11600 |
— | ||
|
22114
|
22114
22114-78130 Rack, Control[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22114-78130 |
US $26.94 |
||
|
22115
|
22115
22115-78140 Screw, Rack Guide[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22115-78140 |
US $1.89 |
||
|
22116B
|
22116B
22116-56230
Cover, Control Rack
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22116-56230 |
— | ||
|
22120
|
22120
22120-78281 Body Assy,injectionINJECTION [08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22120-78281 |
US $1,439.98 |
||
| replacement | |||||
|
22120
|
22120
S2211-03790
Body Assy,injection
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2211-03790 |
— | ||
|
22121
|
22121
22121-77020 Packing, Air Bleeder Screw[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22121-77020 |
US $2.91 |
||
|
22127
|
22127
22127-78280
Union, Injection Pump Fuel Inlet
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.1 |
22127-78280 |
— | ||
| replacement | |||||
|
22127
|
22127
S2213-11050
Union, Injection Pump Fuel Inlet
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.1 |
S2213-11050 |
— | ||
|
22127
|
22127
22127-78281
Union, Injection Pump Fuel Inlet
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.2 |
22127-78281 |
— | ||
| replacement | |||||
|
22127
|
22127
S2213-11640
Union, Injection Pump Fuel Inlet
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.2 |
S2213-11640 |
— | ||
|
22131
|
22131
22131-78030
Holder, Delivery Valve
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22131-78030 |
— | ||
|
22131A
|
22131A
90099-14070
Ring, O(For Delivery Valve Holder)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
90099-14070 |
— | ||
|
22142
|
22142
22142-58230 Sleeve, Plunger Control[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22142-58230 |
US $6.64 |
||
|
22143
|
22143
22143-78150
Seat, Spring Upper
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22143-78150 |
— | ||
| replacement | |||||
|
22143
|
22143
S2211-91190
Seat, Spring Upper
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2211-91190 |
— | ||
|
22144
|
22144
22144-78150 Spring, Pump Plunger[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22144-78150 |
US $5.53 |
||
| replacement | |||||
|
22144
|
22144
S2212-11430
Spring, Pump Plunger
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2212-11430 |
— | ||
|
22145
|
22145
22145-78030
Seat, Spring, Lower
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22145-78030 |
— | ||
|
22146
|
22146
22146-78140 Camshaft, Injection Pump[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22146-78140 |
US $182 |
||
|
22146A
|
22146A
90099-10087
Bearing(For Injection Camshaft)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.1 |
90099-10087 |
— | ||
|
22146A
|
22146A
90099-10151
Bearing(For Injection Camshaft)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.2 |
90099-10151 |
— | ||
|
22146B
|
22146B
22353-78310
Key(For Injection Pump Camshaft)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22353-78310 |
— | ||
| replacement | |||||
|
22146B
|
22146B
S2289-51130
Key(For Injection Pump Camshaft)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2289-51130 |
— | ||
|
22146C
|
22146C
22544-64740 Seal, Oil, Injection Pump Camshaft[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22544-64740 |
US $4.23 |
||
|
22147
|
22147
22147-77020
Ring, Camshaft Adjust
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.2 |
22147-77020 |
— | ||
|
22147
|
22147
22147-78030
Ring, Camshaft Adjust
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA NO.1 |
22147-78030 |
— | ||
|
22148
|
22148
22148-78030
Spring, Delivery Valve
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22148-78030 |
— | ||
|
22149
|
22149
22149-78030
Gasket, Delivery Valve
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22149-78030 |
— | ||
|
22153
|
22153
22153-78030 Gasket, Injection Pump Cover Plate[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22153-78030 |
US $7.72 |
||
| replacement | |||||
|
22153
|
22153
S2284-71990
Gasket, Injection Pump Cover Plate
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2284-71990 |
— | ||
|
22154
|
22154
22154-76051
Screw(For Injection Pump Cover Setting)
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22154-76051 |
— | ||
|
22155
|
22155
22155-76010
Pinion, Plunger Control
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22155-76010 |
— | ||
|
22156
|
22156
22156-76010 Screw, Plunger Control Pinion Clamp[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22156-76010 |
US $2.04 |
||
|
22157
|
22157
22157-89102
Plug, Injection Pump Felt Plate
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22157-89102 |
— | ||
| replacement | |||||
|
22157
|
22157
S2284-51420 Plug, Injection Pump Felt Plate[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2284-51420 |
US $17.18 |
||
|
22160
|
22160
22199-78280
Screw Sub-Assy, Overflow
[12.2002 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22199-78280 |
— | ||
| replacement | |||||
|
22160
|
22160
S2210-71500
Screw Sub-Assy, Overflow
[12.2002 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2210-71500 |
— | ||
|
22161
|
22161
22161-76010 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.10 |
22161-76010 |
US $2.04 |
||
|
22161
|
22161
22162-76010 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.12 |
22162-76010 |
US $2.04 |
||
|
22161
|
22161
22163-76010 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.14 |
22163-76010 |
US $2.04 |
||
|
22161
|
22161
22164-76010 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.16 |
22164-76010 |
US $2.04 |
||
|
22161
|
22161
22165-76010 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.18 |
22165-76010 |
US $2.04 |
||
|
22161
|
22161
22166-76010
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.50 |
22166-76010 |
— | ||
|
22161
|
22161
22166-78030
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.00 |
22166-78030 |
— | ||
|
22161
|
22161
22166-78031
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.50 |
22166-78031 |
— | ||
|
22161
|
22161
22166-78140 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.30 |
22166-78140 |
US $1.16 |
||
|
22161
|
22161
22166-78141 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=2.00 |
22166-78141 |
US $1.16 |
||
|
22161
|
22161
22166-89101
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.03 |
22166-89101 |
— | ||
| replacement | |||||
|
22161
|
22161
S2288-56660
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.03 |
S2288-56660 |
— | ||
|
22166
|
22166
22166-78032
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.10 |
22166-78032 |
— | ||
|
22166
|
22166
22166-78033
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.15 |
22166-78033 |
— | ||
|
22166
|
22166
22166-78034
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.30 |
22166-78034 |
— | ||
|
22166
|
22166
22166-78035
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.50 |
22166-78035 |
— | ||
|
22166
|
22166
22166-78036
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.00 |
22166-78036 |
— | ||
|
22166
|
22166
22166-78037
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.50 |
22166-78037 |
— | ||
|
22166
|
22166
22166-78142 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.12 |
22166-78142 |
US $1.16 |
||
|
22166
|
22166
22166-78143 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.14 |
22166-78143 |
US $1.16 |
||
|
22166
|
22166
22166-78144 Plate, Camshaft Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.18 |
22166-78144 |
US $1.16 |
||
|
22166
|
22166
22166-89102
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.03 |
22166-89102 |
— | ||
| replacement | |||||
|
22166
|
22166
S2288-56670
Plate, Camshaft Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.03 |
S2288-56670 |
— | ||
|
22173
|
22173
90099-01500
Washer, Spring
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
90099-01500 |
— | ||
|
22182
|
22182
22182-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.10 |
22182-46010 |
— | ||
|
22182
|
22182
22183-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.20 |
22183-46010 |
— | ||
|
22182
|
22182
22184-46010 Plate, Tappet Adjusting Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.30 |
22184-46010 |
US $2.33 |
||
|
22182
|
22182
22185-46010 Plate, Tappet Adjusting Shim[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.40 |
22185-46010 |
US $2.33 |
||
|
22182
|
22182
22185-48010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.15 |
22185-48010 |
— | ||
|
22182
|
22182
22186-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.50 |
22186-46010 |
— | ||
|
22182
|
22182
22186-78030
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.13 |
22186-78030 |
— | ||
|
22182
|
22182
22187-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.60 |
22187-46010 |
— | ||
|
22182
|
22182
22188-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.70 |
22188-46010 |
— | ||
|
22182
|
22182
22189-46010
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.80 |
22189-46010 |
— | ||
|
22182
|
22182
22189-48031
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=0.90 |
22189-48031 |
— | ||
|
22182
|
22182
22189-48032
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.00 |
22189-48032 |
— | ||
|
22182
|
22182
22189-48033
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.10 |
22189-48033 |
— | ||
|
22182
|
22182
22189-48034
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.20 |
22189-48034 |
— | ||
|
22182
|
22182
22189-48035
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.30 |
22189-48035 |
— | ||
|
22182
|
22182
22189-48036
Plate, Tappet Adjusting Shim
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA T=1.40 |
22189-48036 |
— | ||
|
22194
|
22194
22194-78030
Stopper, Delivery Valve
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22194-78030 |
— | ||
|
22195
|
22195
22195-89103
Gasket, Bearing Cover
[04.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22195-89103 |
— | ||
| replacement | |||||
|
22195
|
22195
S2284-33040
Gasket, Bearing Cover
[04.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
S2284-33040 |
— | ||
|
22563
|
22563
22563-78050
Plate, Injection Pump Cover
[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22563-78050 |
— | ||
|
22611
|
22611
22611-78030 Nut, Timer Round[08.2003 - 02.2008] W04D..WU420;W04D..WU410..65T..SA |
22611-78030 |
US $10.92 |
||
|
9009901468
|
9009901468
90099-01468
New Genuine Part
|
90099-01468 |
— | ||
|
9009901501
|
9009901501
90099-01501
Ring, Feed Pump Tappet Snap
|
90099-01501 |
— | ||
|
9009901502
|
9009901502
90099-01502 Washer(For Inlet Follow Screw) |
90099-01502 |
US $1.79 |
||
|
9009901504
|
9009901504
90099-01504
Washer(For Inlet Follow Screw)
|
90099-01504 |
— | ||
|
9009904071
|
9009904071
90099-04071
New Genuine Part
|
90099-04071 |
— | ||
|
9009904564
|
9009904564
90099-04564
New Genuine Part
|
90099-04564 |
— | ||
|
9009905174
|
9009905174
90099-05174
New Genuine Part
|
90099-05174 |
— | ||
|
9009918005
|
9009918005
90099-18005
Screw, Fuel Inlet Follow
|
90099-18005 |
— | ||
|
9009918010
|
9009918010
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
US $3.32 |
||
