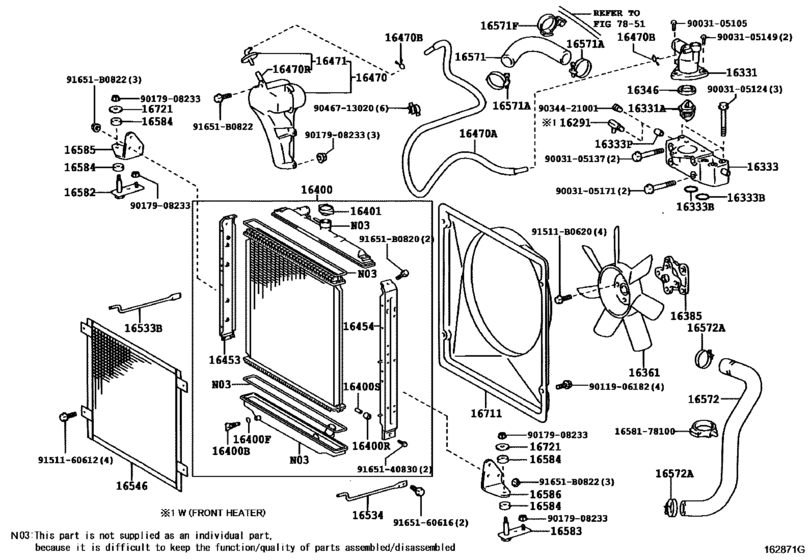

Radiator & Water Outlet ([02.2008 - 12.2008] (0610- )W04D..WU410..GCC,GEN ; (0802-0812)W04 D..WU410,420..SA) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2008
- Sales region
- Europe
- Frame
- WU420
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 04.2003
- To
- 12.2008
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16291
|
16291
87251-30190 Joint, Water Hose[12.2002 - 02.2008] W04D..WU410,420..SA |
87251-30190 |
US $5.42 |
||
|
16331
|
16331
16334-78010 Outlet, WaterWATER [12.2002 - 02.2008] W04D..WU410,420..SA |
16334-78010 |
US $70.32 |
||
| replacement | |||||
|
16331
|
16331
16331-E0100 Outlet, Water[12.2002 - 02.2008] W04D..WU410,420..SA |
16331-E0100 |
US $61.15 |
||
|
16331A
|
16331A
90038-33012 Thermostat[12.2002 - 02.2008] W04D..WU410,420..SA *WAX 82-95 |
90038-33012 |
US $24.11 |
||
|
16333
|
16333
16303-78040 Housing, Water OutletWATER OUTLET [12.2002 - 02.2008] W04D..WU410,420..SA |
16303-78040 |
US $142.69 |
||
| replacement | |||||
|
16333
|
16333
16303-E0300 Housing, Water Outlet[12.2002 - 02.2008] W04D..WU410,420..SA |
16303-E0300 |
US $167.44 |
||
|
16333B
|
16333B
90033-01068 Ring, O(For Water Outlet Housing)[12.2002 - 02.2008] W04D..WU410,420..SA |
90033-01068 |
from US $3.74 |
||
|
16333P
|
16333P
90034-05021 Union(For Water Outlet Housing)[12.2002 - 02.2008] W04D..WU410,420..SA |
90034-05021 |
US $5.39 |
||
| replacement | |||||
|
16333P
|
16333P
SZ940-92034 Union(For Water Outlet Housing)[12.2002 - 02.2008] W04D..WU410,420..SA |
SZ940-92034 |
US $16.60 |
||
|
16346
|
16346
16346-78010 Gasket, Thermostat[12.2002 - 02.2008] W04D..WU410,420..SA |
16346-78010 |
US $7.43 |
||
| replacement | |||||
|
16346
|
16346
S1632-51280 Gasket, Thermostat[12.2002 - 02.2008] W04D..WU410,420..SA |
S1632-51280 |
US $5.24 |
||
|
16361
|
16361
16361-78070 Fan[12.2002 - 02.2008] W04D..WU410,420..SA |
16361-78070 |
from US $59.40 |
||
|
16385
|
16385
16365-78100
Slider, Fan Belt Adjusting
[12.2002 - 02.2008] W04D..WU410,420..SA |
16365-78100 |
— | ||
| replacement | |||||
|
16385
|
16385
S1637-72590 Slider, Fan Belt Adjusting[12.2002 - 02.2008] W04D..WU410,420..SA |
S1637-72590 |
US $69.16 |
||
|
16400
|
16400
16400-78101 Radiator Assy[12.2002 - 02.2008] W04D..WU410,420..SA |
16400-78101 |
US $554.74 |
||
|
16400
|
16400
16400-78570
Radiator Assy
[10.2006 - 03.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16400-78570 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-78B70 Radiator Assy[10.2006 - 03.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16400-78B70 |
US $582.40 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[10.2006 - 06.2011] W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[10.2006 - 06.2011] W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
96711-19007 |
from US $2.22 |
||
|
16400R
|
16400R
16444-78100 Bushing(For Radiator)[10.2006 - 06.2011] W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
16444-78100 |
US $3.06 |
||
|
16400S
|
16400S
16445-78100 Collar(For Radiator)[10.2006 - 06.2011] W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
16445-78100 |
US $2.77 |
||
|
16401
|
16401
16401-78100 Cap Sub-Assy(For Water Outlet)[12.2002 - 02.2008] W04D..WU410,420..SA |
16401-78100 |
from US $13.25 |
||
|
16453
|
16453
16453-78570
Plate, Radiator Side
[10.2006 - 06.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16453-78570 |
— | ||
|
16454
|
16454
16454-78570
Plate, Radiator Side
[10.2006 - 04.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16454-78570 |
— | ||
|
16470
|
16470
16470-78010 Tank Assy, Radiator Reserve[12.2002 - 02.2008] W04D..WU410,420..SA |
16470-78010 |
US $68.54 |
||
|
16470A
|
16470A
16567-78070 Hose Or Pipe(For Radiator Reserve Tank)[12.2002 - 02.2008] J05C..XZU420,430 L=1690; W04D..WU410,420..SA L=1690 |
16567-78070 |
US $24.75 |
||
| replacement | |||||
|
16470A
|
16470A
16567-78570 Hose Or Pipe(For Radiator Reserve Tank)[12.2002 - 02.2008] J05C..XZU420,430 L=1690; W04D..WU410,420..SA L=1690 |
16567-78570 |
US $30.91 |
||
|
16470A
|
16470A
16567-78440
Hose Or Pipe(For Radiator Reserve Tank)
[10.2006 - 06.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=1755 |
16567-78440 |
— | ||
| replacement | |||||
|
16470A
|
16470A
16567-78570 Hose Or Pipe(For Radiator Reserve Tank)[10.2006 - 06.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=1755 |
16567-78570 |
US $30.91 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[12.2002 - 02.2008] W04D..WU410,420..SA |
90467-11085 |
from US $0.72 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[12.2002 - 02.2008] W04D..WU410,420..SA L=315 |
90445-12078 |
from US $6.75 |
||
|
16471
|
16471
16405-78010
Cap Sub-Assy, Reserve Tank
[12.2002 - 02.2008] W04D..WU410,420..SA |
16405-78010 |
— | ||
|
16533B
|
16533B
16533-78030 Support, Radiator, No.1[12.2002 - 09.2006] W04D..WU410,420; J05C,S05C..XZU412,420,422,430..DSL |
16533-78030 |
US $48.92 |
||
| replacement | |||||
|
16533B
|
16533B
16533-78031 Support, Radiator, No.1RADIATOR, NO.1 [12.2002 - 09.2006] W04D..WU410,420; J05C,S05C..XZU412,420,422,430..DSL |
16533-78031 |
US $30.58 |
||
|
16533B
|
16533B
16533-78031 Support, Radiator, No.1RADIATOR, NO.1 [10.2006 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16533-78031 |
US $30.58 |
||
|
16534
|
16534
16534-78030 Support, Radiator, No.2[12.2002 - 09.2006] W04D..WU410,420; J05C,S05C..XZU412,420,422,430..DSL |
16534-78030 |
US $16.89 |
||
| replacement | |||||
|
16534
|
16534
16534-78031 Support, Radiator, No.2RADIATOR, NO.2 [12.2002 - 09.2006] W04D..WU410,420; J05C,S05C..XZU412,420,422,430..DSL |
16534-78031 |
US $10.63 |
||
|
16534
|
16534
16534-78031 Support, Radiator, No.2RADIATOR, NO.2 [10.2006 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16534-78031 |
US $10.63 |
||
|
16571
|
16571
16571-78110 Hose, Radiator, InletRADIATOR, INLET [12.2002 - 02.2008] W04D..WU410,420..SA |
16571-78110 |
US $24.75 |
||
| replacement | |||||
|
16571
|
16571
16571-78111 Hose, Radiator, InletRADIATOR, INLET [12.2002 - 02.2008] W04D..WU410,420..SA |
16571-78111 |
from US $18.39 |
||
|
16571
|
16571
16571-78111 Hose, Radiator, InletRADIATOR, INLET [10.2006 - 06.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16571-78111 |
from US $18.39 |
||
|
16571A
|
16571A
16581-58010 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] W04D..WU410,420 NO.1 |
16581-58010 |
US $4.30 |
||
|
16571A
|
16571A
16581-78050 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] W04D..WU410,420 NO.2 |
16581-78050 |
US $5.02 |
||
|
16571A
|
16571A
16581-78140 Clamp, Sub Radiator Inlet Hose[08.2006 - 02.2008] W04D..WU410,420..SA NO.1 & NO.2; J05C,S05C..XZU412,420,422,430..6F |
16581-78140 |
US $15.58 |
||
| replacement | |||||
|
16571A
|
16571A
16581-78191 Clamp, Sub Radiator Inlet Hose[08.2006 - 02.2008] W04D..WU410,420..SA NO.1 & NO.2; J05C,S05C..XZU412,420,422,430..6F |
16581-78191 |
from US $7.59 |
||
|
16571A
|
16571A
16581-78190 Clamp, Sub Radiator Inlet Hose[07.2008 - 06.2010] W04D..WU41#,42#; N04C..XZU41#,42#,43# |
16581-78190 |
US $12.96 |
||
| replacement | |||||
|
16571A
|
16571A
16581-78191 Clamp, Sub Radiator Inlet Hose[07.2008 - 06.2010] W04D..WU41#,42#; N04C..XZU41#,42#,43# |
16581-78191 |
from US $7.59 |
||
|
16571A
|
16571A
90460-52003 Clamp, Sub Radiator Inlet Hose[10.2003 - 12.2003] W04D..WU410,420; J05C,S05C..XZU404,41#,42#,43# |
90460-52003 |
US $4.30 |
||
|
16571A
|
16571A
90460-55014 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] W04D..WU410,420 NO.1 & NO.2; J05C,S05C..XZU404,41#,42#,43# |
90460-55014 |
US $5.53 |
||
| replacement | |||||
|
16571A
|
16571A
16581-78191 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] W04D..WU410,420 NO.1 & NO.2; J05C,S05C..XZU404,41#,42#,43# |
16581-78191 |
from US $7.59 |
||
|
16571F
|
16571F
90464-00731 Clamp Or Clip(For Water Hose)[10.2006 - 06.2011] W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
90464-00731 |
US $2.48 |
||
|
16572
|
16572
16572-78120 Hose, Radiator, OutletRADIATOR, OUTLET [12.2002 - 02.2008] W04D..WU410,420..SA |
16572-78120 |
US $46.16 |
||
|
16572
|
16572
16572-78121 Hose, Radiator, OutletRADIATOR, OUTLET [10.2006 - 06.2011] W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
16572-78121 |
US $39.62 |
||
|
16572A
|
16572A
16581-78050 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] W04D..WU410,420 |
16581-78050 |
US $5.02 |
||
|
16572A
|
16572A
16581-78140 Clamp, Sub Radiator Inlet Hose[08.2006 - 02.2008] W04D..WU410,420..SA; J05C,S05C..XZU412,420,422,430..6F |
16581-78140 |
US $15.58 |
||
| replacement | |||||
|
16572A
|
16572A
16581-78191 Clamp, Sub Radiator Inlet Hose[08.2006 - 02.2008] W04D..WU410,420..SA; J05C,S05C..XZU412,420,422,430..6F |
16581-78191 |
from US $7.59 |
||
|
16572A
|
16572A
16581-78190 Clamp, Sub Radiator Inlet Hose[07.2008 - 06.2010] W04D..WU41#,42#; N04C..XZU41#,42#,43# |
16581-78190 |
US $12.96 |
||
| replacement | |||||
|
16572A
|
16572A
16581-78191 Clamp, Sub Radiator Inlet Hose[07.2008 - 06.2010] W04D..WU41#,42#; N04C..XZU41#,42#,43# |
16581-78191 |
from US $7.59 |
||
|
16572A
|
16572A
90460-52003 Clamp, Sub Radiator Inlet Hose[10.2003 - 12.2003] W04D..WU410,420; J05C,S05C..XZU404,41#,42#,43# |
90460-52003 |
US $4.30 |
||
|
16572A
|
16572A
90460-55014 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] W04D..WU410,420; J05C,S05C..XZU404,41#,42#,43# |
90460-55014 |
US $5.53 |
||
| replacement | |||||
|
16572A
|
16572A
16581-78191 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] W04D..WU410,420; J05C,S05C..XZU404,41#,42#,43# |
16581-78191 |
from US $7.59 |
||
|
16582
|
16582
16583-78020 Bracket, Radiator, No.2[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16583-78020 |
US $9.46 |
||
|
16583
|
16583
16583-78020 Bracket, Radiator, No.2[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16583-78020 |
US $9.46 |
||
|
16584
|
16584
16584-78010 Insulator, Radiator Mounting[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16584-78010 |
US $3.93 |
||
|
16585
|
16585
16585-78030 Bracket, Radiator, No.3[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16585-78030 |
US $21.26 |
||
|
16586
|
16586
16586-78020 Bracket, Radiator, No.4[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16586-78020 |
US $21.26 |
||
|
16711
|
16711
16711-78070 Shroud, FanFAN [12.2002 - 02.2008] W04D..WU410,420..SA |
16711-78070 |
US $82.19 |
||
|
16721
|
16721
16721-78010 Plate, Holder[12.2002 - 02.2008] J05C..XZU420,430; W04D..WU410,420..SA |
16721-78010 |
US $6.63 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
1658178100
|
1658178100
16581-78100 Clamp, Hose(For Water Hose) |
16581-78100 |
US $10.93 |
||
|
9003105105
|
9003105105
90031-05105 New Genuine Part |
90031-05105 |
US $3.23 |
||
|
9003105124
|
9003105124
90031-05124 New Genuine Part |
90031-05124 |
US $1.61 |
||
|
9003105137
|
9003105137
90031-05137 New Genuine Part |
90031-05137 |
US $6.70 |
||
|
9003105149
|
9003105149
90031-05149 New Genuine Part |
90031-05149 |
US $2.48 |
||
|
9003105171
|
9003105171
90031-05171 New Genuine Part |
90031-05171 |
US $2.33 |
||
| replacement | |||||
|
9003105171
|
9003105171
SZ105-08024 New Genuine Part |
SZ105-08024 |
US $11.65 |
||
|
9011906182
|
9011906182
90119-06182 Bolt, W/washer (For Floor Shift) |
90119-06182 |
US $1.61 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9034421001
|
9034421001
90344-21001 Plug, W/head Taper Screw, No.5 |
90344-21001 |
US $2.91 |
||
|
9046713020
|
9046713020
90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
90467-13020 |
from US $1.70 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
