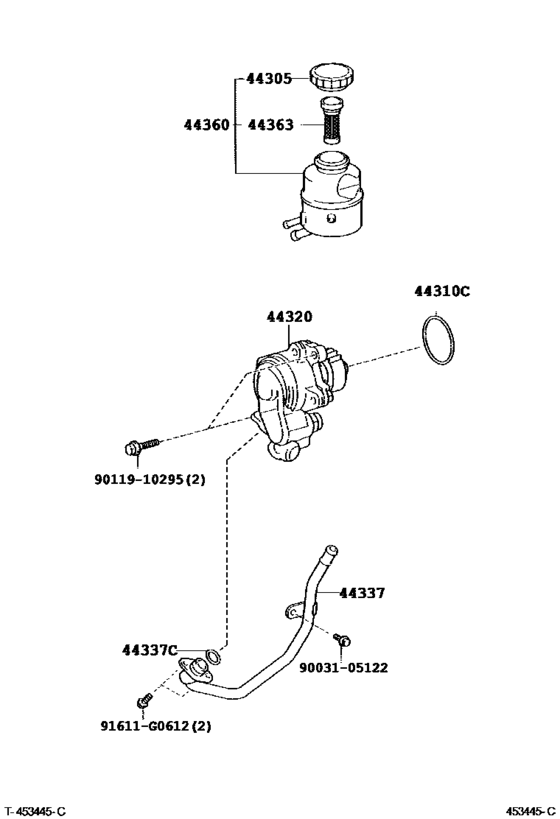

Vane Pump & Reservoir (Power Steering) ([10.2006 - 01.2008] (0212-0610)WU410,420 ; (0610-0801)WU410,420..SA ; (0801- )WU410..75T..SA) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2008
- Sales region
- Europe
- Frame
- WU420
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 04.2003
- To
- 12.2008
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44305
|
44305
44305-12030
Cap Sub-Assy, Vane Pump Oil Reservoir
[10.2001 - 12.2007] XZU412,422..6F;WU410,420,XZU420,430..SA |
44305-12030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-12040 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2001 - 12.2007] XZU412,422..6F;WU410,420,XZU420,430..SA |
44305-12040 |
from US $21.78 |
||
|
44305
|
44305
44305-12040 Cap Sub-Assy, Vane Pump Oil Reservoir[12.2007 - 02.2008] XZU412,422;WU410,420,XZU420,430..SA |
44305-12040 |
from US $21.78 |
||
|
44305
|
44305
44305-37020 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2006 - 03.2008] WU420,XZU433;XZU413,423..6F;WU410..65T..SA |
44305-37020 |
US $27.81 |
||
| replacement | |||||
|
44305
|
44305
44305-37031 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2006 - 03.2008] WU420,XZU433;XZU413,423..6F;WU410..65T..SA |
44305-37031 |
from US $17.47 |
||
|
44305
|
44305
44305-37030 Cap Sub-Assy, Vane Pump Oil Reservoir[03.2008 - 12.2011] WU41#,42#,XZU41#,42#,43# |
44305-37030 |
US $23.15 |
||
| replacement | |||||
|
44305
|
44305
44305-37031 Cap Sub-Assy, Vane Pump Oil Reservoir[03.2008 - 12.2011] WU41#,42#,XZU41#,42#,43# |
44305-37031 |
from US $17.47 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
90301-60002 |
from US $6.84 |
||
|
44320
|
44320
44310-37160 Pump Assy, VaneVANE [12.2002 - 02.2008] WU410,420..SA |
44310-37160 |
US $693.06 |
||
|
44337
|
44337
44337-37140 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [12.2002 - 02.2008] WU410,420..SA |
44337-37140 |
US $65.81 |
||
|
44337
|
44337
44337-37350
Union, Power Steering Suction Port
[10.2006 - 06.2011] WU420;WU410..65T;WU410..75T..GEN |
44337-37350 |
— | ||
|
44337C
|
44337C
96711-19022 Ring, O, No.4(For Front Absorber Control Spool Valve)[12.2002 - 02.2008] WU410,420..SA |
96711-19022 |
from US $2.63 |
||
|
44360
|
44360
44360-37140 Reservoir Assy, Vane Pump Oil[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
44360-37140 |
from US $136.86 |
||
|
44360
|
44360
44360-37190 Reservoir Assy, Vane Pump Oil[10.2006 - 08.2012] WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,43 9..DCRTJ,DCRTK,DSL |
44360-37190 |
US $94.64 |
||
|
44363
|
44363
44363-37130 Strainer, Oil(For Vane Pump)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
44363-37130 |
US $11.94 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9003105122
|
9003105122
90031-05122 Bolt(For Turbocharger Stay) |
90031-05122 |
US $3.49 |
||
| replacement | |||||
|
9003105122
|
9003105122
SH552-10812 Bolt(For Turbocharger Stay) |
SH552-10812 |
US $2.48 |
||
|
9011910295
|
9011910295
90119-10295 New Genuine Part |
90119-10295 |
US $3.06 |
||
