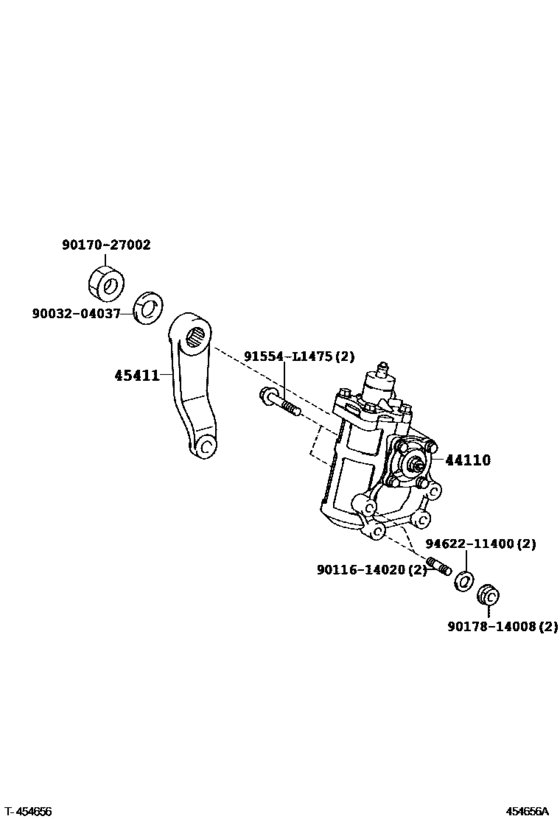

Front Steering Gear & Link ([01.2008 - ] (0610- )RHD..GEN ; (0801- )WU410..65T..SA ; (0801- )WU420,XZU423,433..SA) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2008
- Sales region
- General
- Frame
- WU420
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 04.2003
- To
- 12.2008
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44110
|
44110
44110-37160 Gear Assy, Power Steering[10.2001 - 02.2008] WU410,420,XZU420,430..SA |
44110-37160 |
US $2,213.12 |
||
|
44110
|
44110
44110-37250
Gear Assy, Power Steering
[10.2006 - 08.2010] WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
44110-37250 |
— | ||
| replacement | |||||
|
44110
|
44110
44110-37251 Gear Assy, Power Steering[10.2006 - 08.2010] WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
44110-37251 |
US $1,807.19 |
||
|
45411
|
45411
45411-37170 Arm, Pitman[10.2001 - 02.2008] WU410,420,XZU420,430..SA |
45411-37170 |
US $163.07 |
||
|
45411
|
45411
45411-37320 Arm, Pitman[10.2006 - 06.2011] WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
45411-37320 |
US $107.74 |
||
|
91554L1475
|
91554L1475
91554-L1475 BOLT FLANGE |
91554-L1475 |
US $4.08 |
||
|
9003204037
|
9003204037
90032-04037 WASHER SPRING |
90032-04037 |
US $4.08 |
||
|
9011614020
|
9011614020
90116-14020 Bolt, Stud(For Power Steering Gear Housing) |
90116-14020 |
US $3.20 |
||
|
9017027002
|
9017027002
90170-27002 Nut, Hexagon(For Sector Shaft To Pitman Arm Setting) |
90170-27002 |
US $5.91 |
||
|
9017814008
|
9017814008
90178-14008 Nut(For Suspension Lower Arm Shaft) |
90178-14008 |
US $3.94 |
||
|
9462211400
|
9462211400
94622-11400 New Genuine Part |
94622-11400 |
US $4.30 |
||
