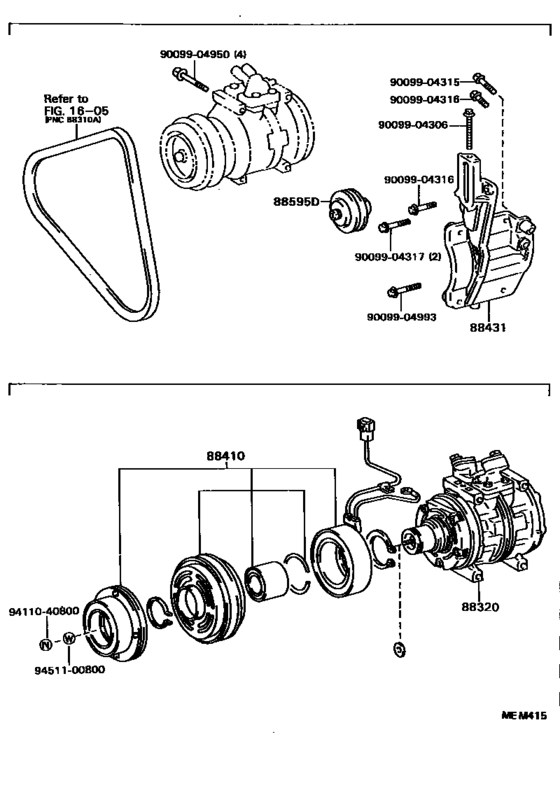

Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )WU75,85,9#) Diagram Toyota DYNA/ TOYOACE
- Year
- 1989 - 1995
- Sales region
- Japan
- Frame
- WU85
- body
- TR
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 10.1989
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- TOY
- Deck,cab
- T3
- Loading Capacity
- 30T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-36201
Compressor Assy, Cooler
[08.1988 - 09.1991] WU75,85,9# |
88320-36201 |
— | ||
|
88320
|
88320
88320-36430
Compressor Assy, Cooler
[09.1993 - 05.1995] WU75,85,9# |
88320-36430 |
— | ||
|
88410
|
88410
88410-36170 Clutch Assy, Magnet[08.1988 - 09.1991] WU75,85,9# |
88410-36170 |
US $313.04 |
||
|
88410
|
88410
88410-36410 Clutch Assy, Magnet[09.1993 - 05.1995] WU75,85,9# |
88410-36410 |
US $495.04 |
||
|
88431
|
88431
88431-36200
Bracket, Compressor Mounting, No.1
[08.1988 - 09.1991] WU75,85,9# |
88431-36200 |
— | ||
|
88595D
|
88595D
88440-12160 Pulley Assy, Power Steering Idle[08.1988 - 09.1991] WU75,85,9# |
88440-12160 |
US $88.56 |
||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904315
|
9009904315
90099-04315
New Genuine Part
|
90099-04315 |
— | ||
|
9009904316
|
9009904316
90099-04316
New Genuine Part
|
90099-04316 |
— | ||
|
9009904317
|
9009904317
90099-04317
New Genuine Part
|
90099-04317 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009904993
|
9009904993
90099-04993
New Genuine Part
|
90099-04993 |
— | ||
| replacement | |||||
|
9009904993
|
9009904993
90119-08C31 New Genuine Part |
90119-08C31 |
US $5.24 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
