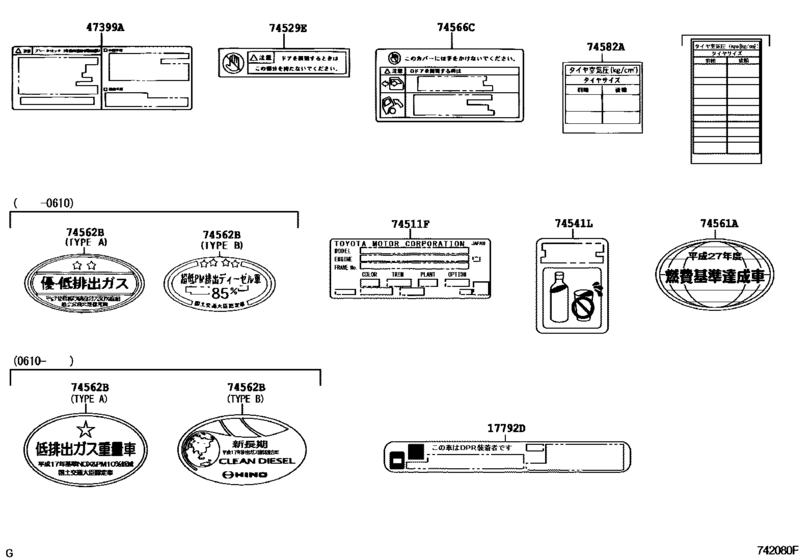

Caution Plate ([10.2003 - ] (0310- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- XKU508
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T5
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 08.2009
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRUE
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17792D
|
17792D
11208-78050 Label, Emission Control Device Information[10.2006 -] N04C..XKU30#,338,34#,508 |
11208-78050 |
US $2.77 |
||
|
74511F
|
74511F
74511-2B300
Plate, Name
[10.2006 -] XKU30#,338,34#,508 ＊１１１ |
74511-2B300 |
— | ||
|
74561A
|
74561A
74562-37220 Label, Fuel Consumption Information[10.2006 -] XKU338,348;XKU30#,344,508..DCRUE;XKU30#,344,508..5F..DCRTJ Ｈ２７ 燃費基準達成車 |
74562-37220 |
US $5.20 |
||
|
74562B
|
74562B
74562-37200 Label, Emission Information[10.2006 -] XKU338,348;XKU30#,344,508..DCRUE;XKU30#,344,508..5F..DCRTJ ＴＹＰＥ Ａ：イラスト参照 |
74562-37200 |
US $3.93 |
||
|
74562B
|
74562B
74562-37210 Label, Emission Information[10.2006 -] XKU30#,338,34#,508 ＴＹＰＥ Ｂ：イラスト参照 |
74562-37210 |
US $41.06 |
||
|
74582A
|
74582A
74582-37201 Plate, Safety Caution[10.2006 -] XKU308,508..T5 |
74582-37201 |
US $2.62 |
