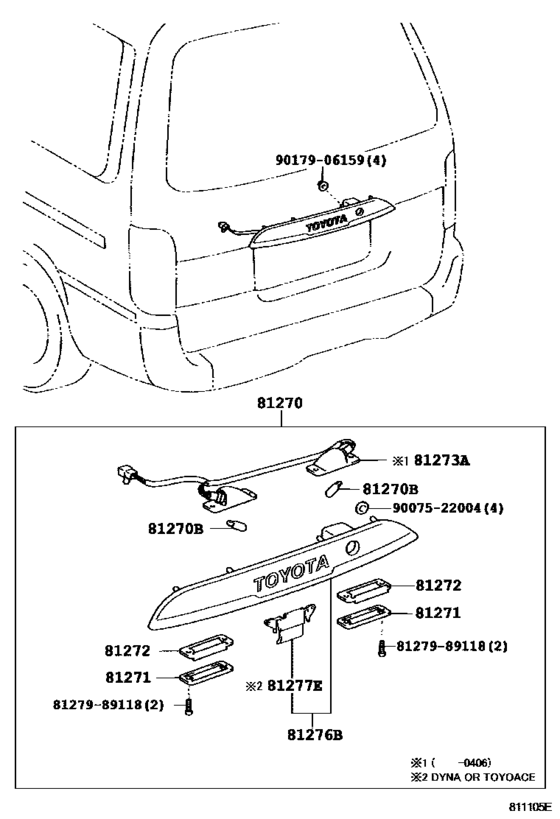

Rear License Plate Lamp ([05.1999 - 10.2006] (9905-0610)VAN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU306
- ENGINE
- S05D
- TRANSMISSION
- MTM
- DECK
- 03S
- CAB
- VAN
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81270
|
81270
81270-37090 Lamp Assy, License Plate[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
81270-37090 |
US $120.85 |
||
|
81270
|
81270
81270-37100 Lamp Assy, License Plate[06.2004 - 10.2006] XZU306,308..VAN DUTRO |
81270-37100 |
US $120.85 |
||
|
81270
|
81270
81270-65030-B0 Lamp Assy, License Plate[06.2004 - 10.2006] XZU306,308..VAN DYNA OR TOYOACE,BLACK,058 ,766 ,8P0 |
81270-65030-B0 |
US $170.35 |
||
|
81270B
|
81270B
90981-12015 Bulb, Spot Lamp[06.2004 - 10.2006] XZU306,308..VAN ２４Ｖ ５Ｗ |
90981-12015 |
from US $3.22 |
||
|
81271
|
81271
81271-95709 Lens, License Plate Lamp[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
81271-95709 |
US $4.25 |
||
|
81271
|
81271
81271-95J07 Lens, License Plate Lamp[06.2004 - 10.2006] XZU306,308..VAN |
81271-95J07 |
US $8.60 |
||
|
81272
|
81272
81272-95709 Gasket, License Plate Lamp Lens[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
81272-95709 |
US $2.80 |
||
|
81272
|
81272
81272-95J07 Gasket, License Plate Lamp Lens[06.2004 - 10.2006] XZU306,308..VAN |
81272-95J07 |
from US $3.63 |
||
|
81276B
|
81276B
81276-26060 Cover, License Plate Lamp[06.2004 - 10.2006] XZU306,308..VAN |
81276-26060 |
from US $68.70 |
||
|
81276B
|
81276B
81276-37090 Cover, License Plate Lamp[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
81276-37090 |
US $51.25 |
||
|
81276B
|
81276B
81276-95J12 Cover, License Plate Lamp[05.2005 - 10.2006] XZU306,308..VAN DUTRO OR DELTA |
81276-95J12 |
from US $51.25 |
||
|
81277E
|
81277E
81278-95J07 Handle, License Plate Lamp[06.2004 - 10.2006] XZU306,308..VAN |
81278-95J07 |
from US $21.08 |
||
|
8127989118
|
8127989118
81279-89118 Washer, Side Turn Signal Lamp |
81279-89118 |
from US $0.86 |
||
|
9007522004
|
9007522004
90075-22004 WASHER |
90075-22004 |
US $2.87 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
