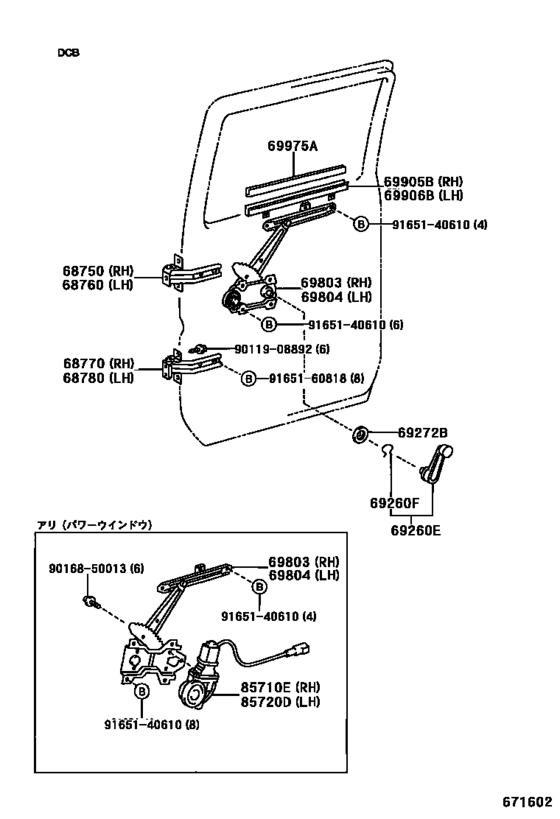

Rear Door Window Regulator & Hinge ([05.1999 - ] (9905- )DCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- XZU311
- ENGINE
- S05D
- TRANSMISSION
- MTM
- DECK
- DM5
- CAB
- DCB
- Model
- DYNA/TOYOACE
- From
- 08.1999
- To
- 06.2002
- Gear Shift Type
- 5F
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-37010 Hinge Assy, Rear Door, Upper Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68750-37010 |
US $51.58 |
||
|
68760
|
68760
68750-37010 Hinge Assy, Rear Door, Upper Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68750-37010 |
US $51.58 |
||
|
68770
|
68770
68770-37010 Hinge Assy, Rear Door, Lower Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68770-37010 |
US $52.27 |
||
| replacement | |||||
|
68770
|
68770
68770-37012 Hinge Assy, Rear Door, Lower Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68770-37012 |
US $91.84 |
||
|
68780
|
68780
68780-37010 Hinge Assy, Rear Door, Lower Lh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68780-37010 |
US $52.27 |
||
| replacement | |||||
|
68780
|
68780
68780-37012 Hinge Assy, Rear Door, Lower Lh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
68780-37012 |
US $91.84 |
||
|
69260E
|
69260E
69260-89104-B3 Handle Assy, Door Window Regulator (GRAY)[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1# |
69260-89104-B3 |
US $21.49 |
||
|
69260F
|
69260F
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) |
90520-01274 |
from US $0.94 |
||
|
69272B
|
69272B
69285-22010
Escutcheon, Door Regulator Handle(For Front Door)
[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) |
69285-22010 |
— | ||
| replacement | |||||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) |
69285-22010-08 |
from US $1.76 |
||
|
69803
|
69803
69803-37020 Regulator Sub-Assy, Rear Door Window, Rh[05.1999 - 06.2004] BU30#,RZU300,XZU307,31#,347,372,382..DCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69803-37020 |
US $50.23 |
||
|
69803
|
69803
69830-37010 Regulator Sub-Assy, Rear Door Window, Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) |
69830-37010 |
US $50.23 |
||
|
69804
|
69804
69804-37020 Regulator Sub-Assy, Rear Door Window, Lh[05.1999 - 06.2004] BU30#,RZU300,XZU307,31#,347,372,382..DCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69804-37020 |
US $50.23 |
||
|
69804
|
69804
69840-37010 Regulator Sub-Assy, Rear Door Window, Lh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,311,331 ,347,37#,382..DCB..(DSL,EFI) |
69840-37010 |
US $50.23 |
||
|
69905B
|
69905B
69905-37010 Channel Sub-Assy, Rear Door Glass, Rh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
69905-37010 |
US $5.97 |
||
|
69906B
|
69906B
69906-37010 Channel Sub-Assy, Rear Door Glass, Lh[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
69906-37010 |
US $5.97 |
||
|
69975A
|
69975A
69975-37010 Filler, Rear Door Glass Channel[05.1999 - 06.2004] XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331 ,347,37#,382..DCB..(DSL,EFI) |
69975-37010 |
US $4.95 |
||
|
85710E
|
85710E
85720-37060 Motor Assy, Power Window Regulator, Rh[05.1999 - 06.2004] BU30#,XZU307,31#,347,372,382..DCB |
85720-37060 |
US $283.92 |
||
|
85720D
|
85720D
85710-37050 Motor Assy, Power Window Regulator, Lh[05.1999 - 06.2004] BU30#,XZU307,31#,347,372,382..DCB |
85710-37050 |
US $283.92 |
||
|
9011908892
|
9011908892
90119-08892 BOLT WWASHER |
90119-08892 |
from US $0.98 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
