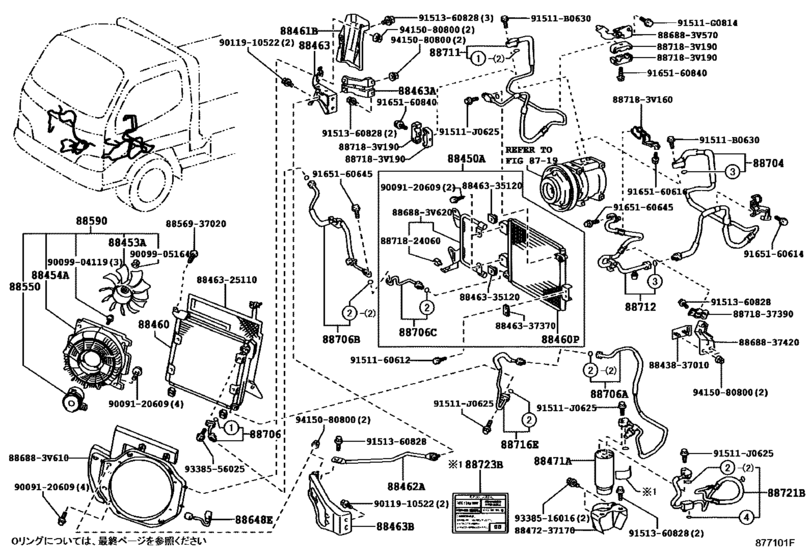

Heating & Air Conditioning - Cooler Piping ([06.2004 - ] ｵｰﾌﾟﾝ ﾌﾚｰﾑ (0406- )XZU304,305,334,344,354..DM6,T3,T4,T5. .DCRL,DSLL) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU334
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 30T
- Fuel Induction
- DCRL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88450A
|
88450A
88450-37041 Sub Condenser Assy[06.2004 -] XZU306,308,346..DCB,VAN;XZU304,305,314,334,344,354..DCRL,DSLL |
88450-37041 |
US $390.21 |
||
|
88453A
|
88453A
88453-37010 Fan, Cooling[06.2004 -] XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,L PG |
88453-37010 |
US $72.68 |
||
|
88454A
|
88454A
88454-37031 Shroud, Fan[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88454-37031 |
US $34.80 |
||
|
88460
|
88460
88460-37640 Condenser Assy, Cooler[06.2004 - 05.2007] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88460-37640 |
US $407.16 |
||
|
88460P
|
88460P
88460-37630 Condenser Assy, Cooler No.2[06.2004 - 05.2007] XZU306,308,346..DCB,VAN;XZU304,305,314,334,344,354..DCRL,DSLL |
88460-37630 |
US $238.78 |
||
|
88461B
|
88461B
53715-37180
Cover, Cooler Condenser
[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
53715-37180 |
— | ||
|
88462A
|
88462A
88462-37070
Holder, Condenser
[06.2004 - 09.2006] XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88462-37070 |
— | ||
|
88463
|
88463
88463-37140
Bracket, Cooler Condenser, No.1
[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88463-37140 |
— | ||
|
88463A
|
88463A
88463-37150
Bracket, Cooler Condenser, No.2
[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88463-37150 |
— | ||
|
88463B
|
88463B
88463-37160
Bracket, Cooler Condenser, No.3
[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88463-37160 |
— | ||
| replacement | |||||
|
88463B
|
88463B
88463-37161 Bracket, Cooler Condenser, No.3[06.2004 -] XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
88463-37161 |
US $59.99 |
||
|
88471A
|
88471A
88471-34010 Receiver & Dryer Assy, Cooler[06.2004 -] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
88471-34010 |
from US $47.25 |
||
|
88550
|
88550
88550-37060 Motor Assy, Blower (For Condenser)[06.2004 - 05.2007] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88550-37060 |
US $289.60 |
||
|
88590
|
88590
88590-37051
Blower Assy, W/shroud
[06.2004 -] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88590-37051 |
— | ||
|
88648E
|
88648E
88648-37130
Wiring, Cooler
[06.2004 -] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88648-37130 |
— | ||
|
88704
|
88704
88704-37030 Hose Sub-Assy, Suction[06.2004 -] XZU304,305,308,314,334,338,344,348,354 |
88704-37030 |
US $230.05 |
||
|
88706
|
88706
88716-3V550 Pipe Sub-Assy, Liquid[06.2004 -] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88716-3V550 |
US $28.68 |
||
|
88706A
|
88706A
88706-37161 Tube Sub-Assy, Liquid, A[06.2004 - 09.2006] XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344, 354..SCB..(DCRL,DSLL) |
88706-37161 |
US $250.43 |
||
| replacement | |||||
|
88706A
|
88706A
88706-37240 Tube Sub-Assy, Liquid, A[06.2004 - 09.2006] XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344, 354..SCB..(DCRL,DSLL) |
88706-37240 |
US $198.02 |
||
|
88706B
|
88706B
88706-37171 Tube Sub-Assy, Liquid, A[06.2004 -] XZU304..175T;XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) |
88706-37171 |
US $59.40 |
||
|
88706C
|
88706C
88716-3V620 Pipe Sub-Assy, Liquid[06.2004 -] XZU304,305,314,334,344,354..DCRL,DSLL |
88716-3V620 |
US $39.02 |
||
|
88711
|
88711
88711-37860 Hose, Cooler Refrigerant Discharge, No.1[06.2004 - 09.2006] XZU304,305,308,314,334,338,344,348,354 |
88711-37860 |
US $199.47 |
||
| replacement | |||||
|
88711
|
88711
88711-3V060 Hose, Cooler Refrigerant Discharge, No.1[06.2004 - 09.2006] XZU304,305,308,314,334,338,344,348,354 |
88711-3V060 |
US $129.58 |
||
|
88712
|
88712
88712-3V430 Hose, Cooler Refrigerant Suction, No.1[06.2004 -] XZU30#,31#,321,33#,34#,35# |
88712-3V430 |
US $180.54 |
||
|
88716E
|
88716E
88716-3V570 Pipe, Cooler Refrigerant Liquid, A[06.2004 -] XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
88716-3V570 |
US $42.66 |
||
|
88721B
|
88721B
88721-37870 Hose, Liquid, A[06.2004 - 09.2006] XZU308,378,388..SCB;XZU301,304,305,306,31#,321,33#,34#,35#,368 |
88721-37870 |
US $199.47 |
||
| replacement | |||||
|
88721B
|
88721B
88721-3V030 Hose, Liquid, A[06.2004 - 09.2006] XZU308,378,388..SCB;XZU301,304,305,306,31#,321,33#,34#,35#,368 |
88721-3V030 |
US $183.46 |
||
|
88723B
|
88723B
88733-27010
Label, Cooler Service Caution
[06.2004 -] XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,35 4..CNG,DCRL,DSLL,EFI,LPG |
88733-27010 |
— | ||
|
91511B0630
|
91511B0630
91511-B0630 BOLT FLANGE |
91511-B0630 |
US $1.97 |
||
|
91511G0814
|
91511G0814
91511-G0814 New Genuine Part |
91511-G0814 |
US $2.33 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
886883V570
|
886883V570
88688-3V570
Bracket, Cooler Diaphragm
|
88688-3V570 |
— | ||
|
886883V610
|
886883V610
88688-3V610 Bracket, Cooler Refrigerant Hose, No.1 |
88688-3V610 |
US $59.10 |
||
|
886883V620
|
886883V620
88688-3V620 Bracket, Cooler Diaphragm |
88688-3V620 |
US $24.02 |
||
|
887183V160
|
887183V160
88718-3V160
Pipe, Cooler Refrigerant Suction, No.2
|
88718-3V160 |
— | ||
|
887183V190
|
887183V190
88718-3V190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-3V190 |
— | ||
|
8843837010
|
8843837010
88438-37010
New Genuine Part
|
88438-37010 |
— | ||
|
8846325110
|
8846325110
88463-25110
Bracket, Cooler Condenser, No.1
|
88463-25110 |
— | ||
|
8846335120
|
8846335120
88463-35120
Bracket, Cooler Condenser, No.1
|
88463-35120 |
— | ||
|
8846337370
|
8846337370
88463-37370
Bracket, Cooler Condenser, No.1
|
88463-37370 |
— | ||
|
8847237170
|
8847237170
88472-37170
Bracket, Receiver Tank, No.1
|
88472-37170 |
— | ||
|
8856937020
|
8856937020
88569-37020
Clamp (for Cooler Relay)
|
88569-37020 |
— | ||
|
8868837420
|
8868837420
88688-37420
Bracket, Cooler Diaphragm
|
88688-37420 |
— | ||
|
8871824060
|
8871824060
88718-24060
Pipe, Cooler Refrigerant Suction, No.2
|
88718-24060 |
— | ||
|
8871837390
|
8871837390
88718-37390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-37390 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011910522
|
9011910522
90119-10522 BOLT WWASHER |
90119-10522 |
US $2.33 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9151360828
|
9151360828
91513-60828 BOLT FLANGE |
91513-60828 |
from US $1.19 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
