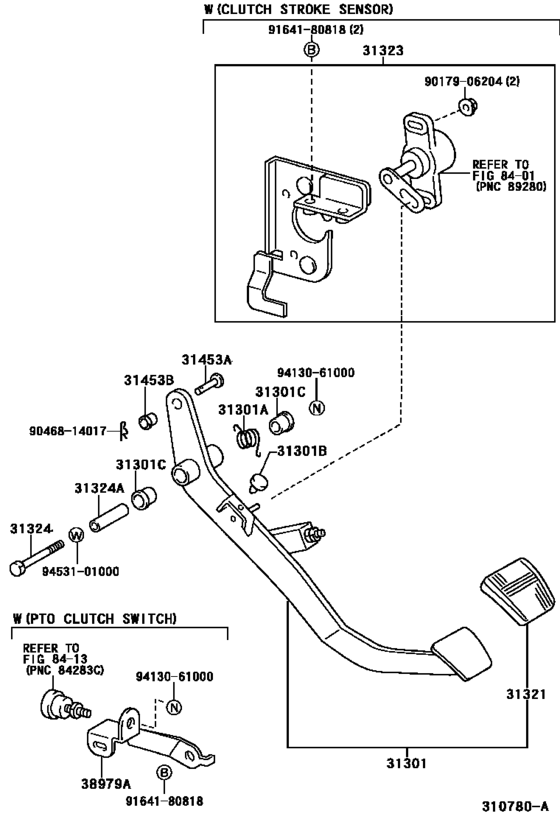

Clutch Pedal & Flexible Hose ([07.1999 - ] (9907- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- From
- 07.1999
- To
- 12.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-37181 Pedal Sub-Assy, ClutchCLUTCH [07.1999 - 12.2002] XZU300,320,330,340 W(PTO CLUTCH SWITCH) |
31301-37181 |
US $27.96 |
||
|
31301
|
31301
31301-37190 Pedal Sub-Assy, ClutchCLUTCH [07.1999 - 12.2002] XZU300,320,330,340 |
31301-37190 |
US $27.96 |
||
|
31301A
|
31301A
90959-03257 Spring(For Clutch Pedal)[07.1999 - 12.2000] XZU30#,320,330,34# |
90959-03257 |
US $9.03 |
||
| replacement | |||||
|
31301A
|
31301A
90959-03394 Spring(For Clutch Pedal)[07.1999 - 12.2000] XZU30#,320,330,34# |
90959-03394 |
US $7.16 |
||
|
31301A
|
31301A
90959-03344 Spring(For Clutch Pedal)[12.2000 - 12.2002] XZU30#,320,330,34# |
90959-03344 |
US $9.17 |
||
| replacement | |||||
|
31301A
|
31301A
90959-03394 Spring(For Clutch Pedal)[12.2000 - 12.2002] XZU30#,320,330,34# |
90959-03394 |
US $7.16 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[07.1999 - 12.2002] XZU30#,320,330,34# |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[07.1999 - 12.2002] XZU30#,320,330,34# |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[07.1999 - 12.2002] XZU30#,320,330,34# |
90386-13007 |
from US $2.48 |
||
|
31321
|
31321
31321-14020 Pad, Clutch Pedal[07.1999 - 12.2002] XZU30#,320,330,34# |
31321-14020 |
from US $3.37 |
||
| replacement | |||||
|
31321
|
31321
31321YE010
PAD PEDAL
[07.1999 - 12.2002] XZU30#,320,330,34# |
31321YE010 |
— | ||
|
31324
|
31324
91112-61070 Shaft, Clutch Pedal[07.1999 - 12.2002] XZU30#,320,330,34# |
91112-61070 |
US $4.66 |
||
|
31324A
|
31324A
90387-10004 Collar, Clutch Pedal Shaft[07.1999 - 12.2002] XZU30#,320,330,34# |
90387-10004 |
from US $3.76 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[07.1999 - 12.2002] XZU30#,320,330,34# L=23.5 |
90240-08006 |
from US $2.87 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[07.1999 - 12.2002] XZU30#,320,330,34# |
90386-08002 |
from US $3.22 |
||
|
38979A
|
38979A
38979-37031 Bracket, Power Take-Off Clutch SwitchPOWER TAKE-OFF CLUTCH SWITCH [07.1999 - 12.2002] XZU300,320,330,340 |
38979-37031 |
US $6.70 |
||
|
9017906204
|
9017906204
90179-06204 NUT |
90179-06204 |
US $2.15 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
