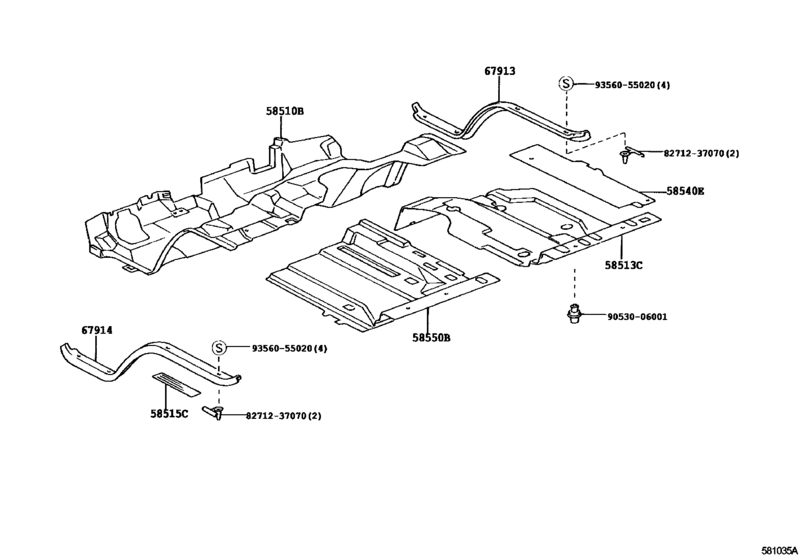

Floor Mat & Silencer Pad ([07.1999 - ] (9907- )XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- From
- 07.1999
- To
- 12.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510B
|
58510B
58510-37610-B1 Mat, Front Floor, FrontFRONT FLOOR, FRONT [07.1999 - 10.1999] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58510-37610-B1 |
US $464.46 |
||
| replacement | |||||
|
58510B
|
58510B
58510-37611-B1 Mat, Front Floor, FrontFRONT FLOOR, FRONT [07.1999 - 10.1999] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58510-37611-B1 |
US $467.38 |
||
|
58510B
|
58510B
58510-37611-B1 Mat, Front Floor, FrontFRONT FLOOR, FRONT [10.1999 - 12.2002] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58510-37611-B1 |
US $467.38 |
||
|
58513C
|
58513C
58513-37060-B1 Mat, Floor, Front CenterFLOOR, FRONT CENTER [07.1999 - 12.2002] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58513-37060-B1 |
US $215.49 |
||
|
58515C
|
58515C
58515-37080-B1 Mat, Front Floor, Rear No.1[07.1999 - 06.2002] XZU30#,320,330,34# MD.CHARCOAL,TRIM1# |
58515-37080-B1 |
US $7.43 |
||
|
58540E
|
58540E
58540-37050-B1 Mat Assy, Floor, Rear RhFLOOR, REAR RH [07.1999 - 12.2002] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58540-37050-B1 |
US $87.36 |
||
|
58550B
|
58550B
58550-37010-B1 Mat Assy, Floor, Rear LhFLOOR, REAR LH [07.1999 - 12.2002] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58550-37010-B1 |
US $183.46 |
||
| replacement | |||||
|
58550B
|
58550B
58550-25021-B0
Mat Assy, Floor, Rear Lh
[07.1999 - 12.2002] XZU300,320,330,340 DARK CHARCOAL,TRIM1# |
58550-25021-B0 |
— | ||
|
67913
|
67913
67913-37010-B0 Plate, Front Door Scuff, Rh[07.1999 - 12.2002] XZU30#,320,330,34# MD.CHARCOAL,TRIM1# |
67913-37010-B0 |
US $96.76 |
||
|
67914
|
67914
67914-37010-B0 Plate, Front Door Scuff, Lh[07.1999 - 12.2002] XZU30#,320,330,34# MD.CHARCOAL,TRIM1# |
67914-37010-B0 |
from US $96.76 |
||
|
8271237070
|
8271237070
82712-37070 Hose, Suction |
82712-37070 |
US $21.34 |
||
|
9053006001
|
9053006001
90530-06001 Fastener, Hook |
90530-06001 |
US $1.97 |
||
|
9356055020
|
9356055020
93560-55020 SCREW |
93560-55020 |
US $2.15 |
||
