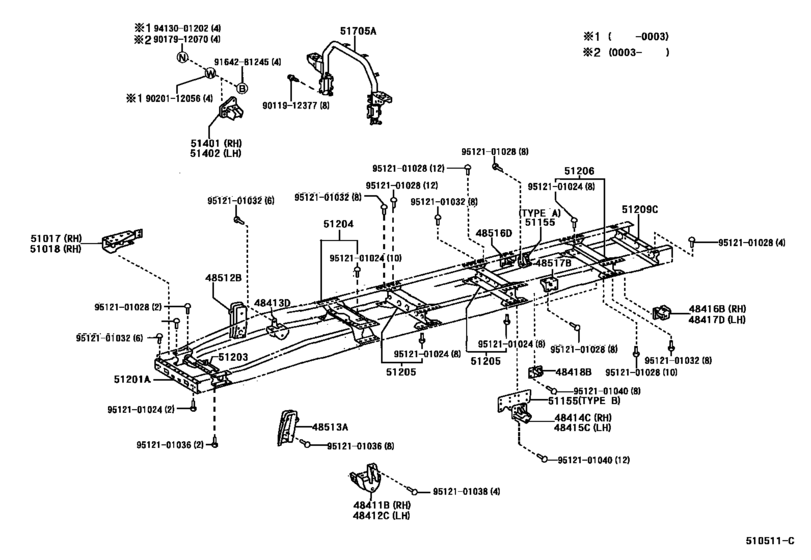

Frame ([07.1999 - ] FRAME (9907- )XZU340) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- From
- 07.1999
- To
- 12.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48411B
|
48411B
48411-37070 Bracket, Spring, No.1 Rh[07.1999 - 12.2002] XZU300,302,330,34# |
48411-37070 |
US $45.28 |
||
|
48412C
|
48412C
48412-37060 Bracket, Spring, No.1 Lh[07.1999 - 12.2002] XZU300,302,330,34# |
48412-37060 |
US $45.28 |
||
|
48413D
|
48413D
48413-37060 Bracket, Spring, No.2[07.1999 - 12.2002] XZU300,302,330,34# |
48413-37060 |
US $27.37 |
||
|
48414C
|
48414C
48414-37110 Bracket, Spring, No.3 Rh[07.1999 - 12.2002] XZU330,340..40T |
48414-37110 |
US $136.86 |
||
|
48415C
|
48415C
48414-37110 Bracket, Spring, No.3 Rh[07.1999 - 12.2002] XZU330,340..40T |
48414-37110 |
US $136.86 |
||
|
48416B
|
48416B
48416-37080 Bracket, Spring, No.4 Rh[07.1999 - 12.2002] XZU330,340..40T |
48416-37080 |
US $49.07 |
||
|
48417D
|
48417D
48416-37080 Bracket, Spring, No.4 Rh[07.1999 - 12.2002] XZU330,340..40T |
48416-37080 |
US $49.07 |
||
|
48418B
|
48418B
48418-36090 Bracket, Helper Spring, Front[07.1999 - 12.2002] XZU300,330,34# |
48418-36090 |
US $60.72 |
||
|
48512B
|
48512B
48512-37050 Bracket, Front Shock Absorber, Upper Rh[07.1999 - 12.2002] XZU300,302,320,330,34# |
48512-37050 |
US $55.04 |
||
|
48513A
|
48513A
48512-37050 Bracket, Front Shock Absorber, Upper Rh[07.1999 - 12.2002] XZU300,302,320,330,34# |
48512-37050 |
US $55.04 |
||
|
48516D
|
48516D
48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[07.1999 - 12.2002] XZU30#,330,34#..WT |
48505-37010 |
US $75.26 |
||
|
48517B
|
48517B
48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[07.1999 - 12.2002] XZU30#,330,34#..WT |
48505-37010 |
US $75.26 |
||
|
51017
|
51017
51017-37070 Reinforcement Sub-Assy, Side Rail, No.1 RhSIDE RAIL, NO.1 RH [07.1999 - 12.2002] XZU300,330,340 |
51017-37070 |
US $136.86 |
||
|
51018
|
51018
51018-37060 Reinforcement Sub-Assy, Side Rail, No.1 LhSIDE RAIL, NO.1 LH [07.1999 - 12.2002] XZU300,330,340 |
51018-37060 |
US $154.34 |
||
|
51155
|
51155
51155-37060 Stiffener, Frame Side Rail, Rear Rh[07.1999 - 12.2002] XZU330,340..40T TYPE A:REFER ILLUST.; XZU30#,330,342..(20T,30T)..WT |
51155-37060 |
US $22.42 |
||
|
51155
|
51155
51155-37080 Stiffener, Frame Side Rail, Rear Rh[07.1999 - 12.2002] XZU330,340..40T TYPE B:REFER ILLUST. |
51155-37080 |
US $37.27 |
||
|
51201A
|
51201A
51211-37090 Crossmember Sub-Assy, Frame, Front[07.1999 - 12.2002] XZU30#,330,34# |
51211-37090 |
US $60.12 |
||
|
51203
|
51203
51202-37080 Crossmember Sub-Assy, Frame, No.2[07.1999 - 06.2002] XZU30#,330,34# |
51202-37080 |
US $246.06 |
||
| replacement | |||||
|
51203
|
51203
51202-37120 Crossmember Sub-Assy, Frame, No.2[07.1999 - 06.2002] XZU30#,330,34# |
51202-37120 |
US $230.05 |
||
|
51203
|
51203
51202-37170 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [06.2002 - 12.2002] XZU300,330,340 |
51202-37170 |
US $244.61 |
||
| replacement | |||||
|
51203
|
51203
51202-37120 Crossmember Sub-Assy, Frame, No.2[06.2002 - 12.2002] XZU300,330,340 |
51202-37120 |
US $230.05 |
||
|
51204
|
51204
51203-37030 Crossmember Sub-Assy, Frame, No.3[07.1999 - 12.2002] XZU330,340..40T |
51203-37030 |
US $476.11 |
||
|
51205
|
51205
51205-37060 Crossmember Sub-Assy, Frame, No.4[07.1999 - 12.2002] XZU340 |
51205-37060 |
US $260.62 |
||
|
51206
|
51206
51206-37010 Crossmember Sub-Assy, Frame, No.5[07.1999 - 12.2002] XZU30#,330,34#..WT |
51206-37010 |
US $189.28 |
||
|
51209C
|
51209C
51291-37040 Crossmember Sub-Assy, Frame, Rear[07.1999 - 12.2002] XZU330,34# |
51291-37040 |
US $70.91 |
||
|
51401
|
51401
51421-37060 Bracket Sub-Assy, Engine Front Mounting, Rh[07.1999 - 12.2002] XZU330,340..40T |
51421-37060 |
US $91.73 |
||
|
51402
|
51402
51422-37050 Bracket Sub-Assy, Engine Front Mounting, Lh[07.1999 - 12.2002] XZU330,340..40T |
51422-37050 |
US $91.73 |
||
|
51705A
|
51705A
51705-37080 Bracket Sub-Assy, Cab Mounting, No.3[07.1999 - 12.2002] XZU300,330,340 |
51705-37080 |
US $687.23 |
||
| replacements | |||||
|
51705A
|
51705A
51705-37081 Bracket, Rear Body Mounting, No.5[07.1999 - 12.2002] XZU300,330,340 |
51705-37081 |
US $687.23 |
||
|
51705A
|
51705A
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)[07.1999 - 12.2002] XZU300,330,340 |
91551-80820 |
from US $0.78 |
||
|
51705A
|
51705A
91551-80840 Bolt(For Head To Camshaft Bearing Cap)[07.1999 - 12.2002] XZU300,330,340 |
91551-80840 |
US $2.15 |
||
|
9011912377
|
9011912377
90119-12377 New Genuine Part |
90119-12377 |
US $3.40 |
||
|
9017912070
|
9017912070
90179-12070 Nut (For Front Lower Ball Joint Setting) |
90179-12070 |
from US $1.87 |
||
|
9020112056
|
9020112056
90201-12056 New Genuine Part |
90201-12056 |
US $2.04 |
||
|
9164281245
|
9164281245
91642-81245 New Genuine Part |
91642-81245 |
US $2.48 |
||
|
9413001202
|
9413001202
94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01202 |
from US $0.96 |
||
|
9512101024
|
9512101024
95121-01024 New Genuine Part |
95121-01024 |
US $4.95 |
||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.67 |
||
|
9512101032
|
9512101032
95121-01032 RIVET |
95121-01032 |
US $4.30 |
||
|
9512101036
|
9512101036
95121-01036 RIVET |
95121-01036 |
US $4.08 |
||
|
9512101038
|
9512101038
95121-01038 New Genuine Part |
95121-01038 |
US $3.20 |
||
|
9512101040
|
9512101040
95121-01040 New Genuine Part |
95121-01040 |
US $3.79 |
||
