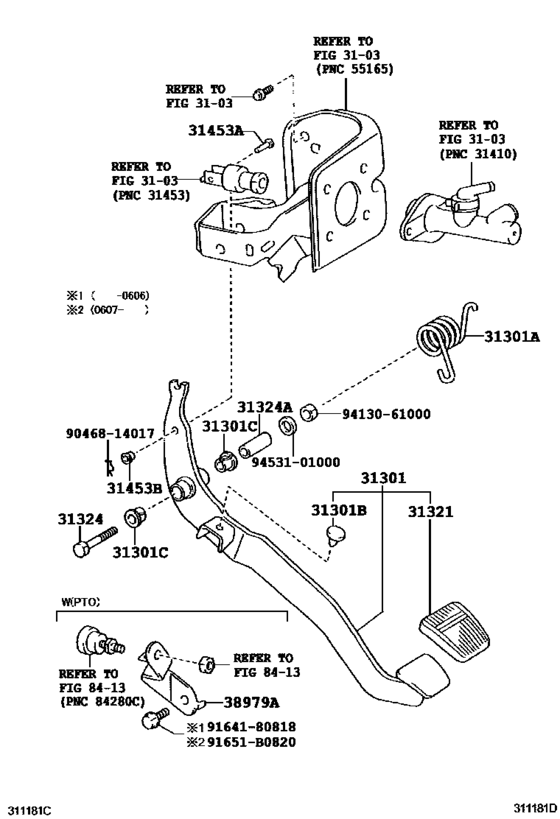

Clutch Pedal & Flexible Hose ([12.2002 - 10.2006] (0212-0610)XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-37181 Pedal Sub-Assy, ClutchCLUTCH [12.2002 - 10.2006] XZU320; XZU300,330,340 W(PTO) |
31301-37181 |
US $27.96 |
||
|
31301
|
31301
31301-37190 Pedal Sub-Assy, ClutchCLUTCH [12.2002 - 10.2006] XZU300,330,340 |
31301-37190 |
US $27.96 |
||
|
31301A
|
31301A
90959-03344 Spring(For Clutch Pedal)[12.2002 - 05.2005] XZU30#,320,330,340,345 |
90959-03344 |
US $9.17 |
||
| replacement | |||||
|
31301A
|
31301A
90959-03394 Spring(For Clutch Pedal)[12.2002 - 05.2005] XZU30#,320,330,340,345 |
90959-03394 |
US $7.16 |
||
|
31301A
|
31301A
90959-03394 Spring(For Clutch Pedal)[06.2005 - 10.2006] XZU30#,320,330,340,345 |
90959-03394 |
US $7.16 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[09.2002 - 10.2006] BU303,343..RHD..GEN;XZU30#,320,330,340,345 |
90386-13007 |
from US $2.48 |
||
|
31321
|
31321
31321-14020 Pad, Clutch Pedal[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
31321-14020 |
from US $3.37 |
||
| replacement | |||||
|
31321
|
31321
31321YE010
PAD PEDAL
[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
31321YE010 |
— | ||
|
31324
|
31324
91112-61070 Shaft, Clutch Pedal[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
91112-61070 |
US $4.66 |
||
|
31324A
|
31324A
90387-10004 Collar, Clutch Pedal Shaft[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90387-10004 |
from US $3.76 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW L=23.5 |
90240-08006 |
from US $2.87 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90386-08002 |
from US $3.22 |
||
|
38979A
|
38979A
38979-37031 Bracket, Power Take-Off Clutch SwitchPOWER TAKE-OFF CLUTCH SWITCH [12.2002 - 10.2006] XZU300,320,330,340 |
38979-37031 |
US $6.70 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
