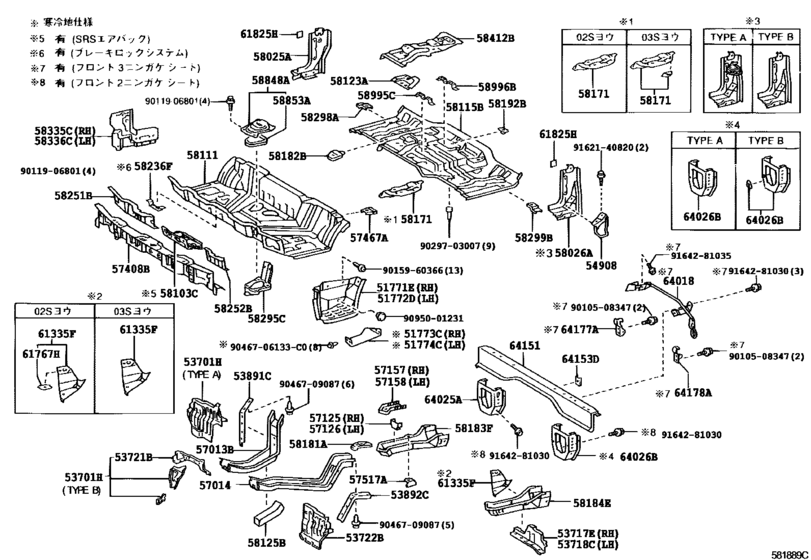

Front Floor Panel & Front Floor Member ([10.2003 - 06.2004] (0310-0406)XZU304,305,344) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- XZU344
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2003
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- DCRL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51771E
|
51771E
51771-37190 Plate, Step, Rh[10.2003 - 06.2004] XZU304,305,344 |
51771-37190 |
US $224 |
||
|
51772D
|
51772D
51772-37080 Plate, Step, Lh[10.2003 - 06.2004] XZU304,305,344 |
51772-37080 |
US $222.40 |
||
|
51773C
|
51773C
51773-37020 Cover, Step Plate, Rh[10.2003 - 06.2004] XZU344;XZU304..DSLL;XZU304..(T3,T4,T5)..DCRL |
51773-37020 |
US $12.19 |
||
|
51774C
|
51774C
51774-37010 Cover, Step Plate, Lh[10.2003 - 06.2004] XZU344;XZU304..DSLL;XZU304..(T3,T4,T5)..DCRL |
51774-37010 |
US $11.65 |
||
|
53701H
|
53701H
53701-37022 Apron Sub-Assy, Front Fender, Rh[10.2003 - 06.2004] XZU304,305,344 タイプ Ｂ |
53701-37022 |
US $23.73 |
||
|
53717E
|
53717E
53717-37130 Apron, Frpnt Fender, No.2 Rh[10.2003 - 06.2004] XZU304,305,344 |
53717-37130 |
US $13.98 |
||
|
53718C
|
53718C
53718-37110 Apron, Front Fender, No.2 Lh[10.2003 - 06.2004] XZU304,305,344 |
53718-37110 |
US $13.98 |
||
|
53721B
|
53721B
53721-37052 Apron Sub-Assy, Fender Side, Rh[10.2003 - 06.2004] XZU304,305,344 |
53721-37052 |
US $17.62 |
||
|
53722B
|
53722B
53722-37031 Apron Sub-Assy, Fender Side, Lh[10.2003 - 06.2004] XZU304,305,344 |
53722-37031 |
US $39.31 |
||
| replacement | |||||
|
53722B
|
53722B
53722-37032 Apron Sub-Assy, Fender Side, Lh[10.2003 - 06.2004] XZU304,305,344 |
53722-37032 |
US $36.46 |
||
|
53891C
|
53891C
53891-37030 Seal, Front Fender Splash Sheild, Front[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
53891-37030 |
US $35.24 |
||
| replacement | |||||
|
53891C
|
53891C
53891-37031 Seal, Front Fender Splash Sheild, Front[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
53891-37031 |
US $22.13 |
||
|
53891C
|
53891C
53891-37031 Seal, Front Fender Splash Sheild, Front[06.2004 -] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
53891-37031 |
US $22.13 |
||
|
53892C
|
53892C
53892-37030 Seal, Front Fender Splash Shield, Front Lh[10.2003 - 06.2004] XZU304,305,344 |
53892-37030 |
US $17.76 |
||
|
54908
|
54908
54908-37010 Bracket Sub-Assy, Tilt Cab Grip[10.2003 - 06.2004] XZU304,305,344 |
54908-37010 |
US $15.14 |
||
|
57013B
|
57013B
57013-37240 Member Sub-Assy, Floor, Front Rh[10.2003 - 06.2004] XZU304,305,344 |
57013-37240 |
US $199.47 |
||
|
57014
|
57014
57014-37070 Member Sub-Assy, Floor, Front Lh[10.2003 - 06.2004] XZU304,305,344 |
57014-37070 |
US $199.47 |
||
|
57125
|
57125
57125-37010 Bracket, Front Side Member, Rh[10.2003 - 06.2004] XZU304,305,344 |
57125-37010 |
US $5.24 |
||
|
57126
|
57126
57126-37020 Bracket, Front Side Member, Lh[10.2003 - 06.2004] XZU304,305,344 |
57126-37020 |
US $5.24 |
||
|
57157
|
57157
57157-37030 Reinforcement, Front Side Member, No.8 Rh[10.2003 - 06.2004] XZU304,305,344 |
57157-37030 |
US $15.87 |
||
|
57158
|
57158
57158-37030 Reinforcement, Front Side Member, No.8 Lh[10.2003 - 06.2004] XZU304,305,344 |
57158-37030 |
US $15.87 |
||
|
57408B
|
57408B
57408-37350 Member Sub-Assy, Front Floor Cross[10.2003 - 06.2004] XZU304,305,344 |
57408-37350 |
US $326.14 |
||
| replacements | |||||
|
57408B
|
57408B
57408-37352 Member Sub-Assy, Front Floor Cross[10.2003 - 06.2004] XZU304,305,344 |
57408-37352 |
US $270.82 |
||
|
57408B
|
57408B
87128-37050 Grommet, Heater[10.2003 - 06.2004] XZU304,305,344 |
87128-37050 |
US $6.12 |
||
|
57408B
|
57408B
87128-37070 Member Sub-Assy, Front Floor Cross[10.2003 - 06.2004] XZU304,305,344 |
87128-37070 |
US $6.12 |
||
|
57467A
|
57467A
57467-37010 Bracket, Front Seat Outside Mounting, Front Lh[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
57467-37010 |
US $10.19 |
||
| replacement | |||||
|
57467A
|
57467A
57467-37011 Bracket, Front Seat Outside Mounting, Front Lh[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
57467-37011 |
US $6.41 |
||
|
57467A
|
57467A
57467-37011 Bracket, Front Seat Outside Mounting, Front Lh[12.2003 - 06.2004] BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346 ,347,35#,362,372,382..SCB; XZU304,305,344 |
57467-37011 |
US $6.41 |
||
|
57517A
|
57517A
57517-37010 Retainer, Front Floor Reinforcement, Rear[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
57517-37010 |
US $12.23 |
||
| replacement | |||||
|
57517A
|
57517A
57517-37011 Retainer, Front Floor Reinforcement, Rear[10.2003 - 12.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
57517-37011 |
US $7.57 |
||
|
57517A
|
57517A
57517-37011 Retainer, Front Floor Reinforcement, Rear[12.2003 - 06.2004] BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346 ,347,35#,362,37#,382; XZU304,305,344 |
57517-37011 |
US $7.57 |
||
|
58025A
|
58025A
58043-37060 Panel Sub-Assy, Floor Side Rail, Fr Rh[10.2003 - 06.2004] XZU304,305,344 |
58043-37060 |
US $54.75 |
||
|
58026A
|
58026A
58044-37070 Panel Sub-Assy, Floor Side Rail, Fr Lh[10.2003 - 06.2004] XZU304,305,344 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
58044-37070 |
US $54.75 |
||
|
58026A
|
58026A
58044-37090 Panel Sub-Assy, Floor Side Rail, Fr Lh[10.2003 - 06.2004] XZU304,305,344 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
58044-37090 |
US $49.07 |
||
|
58103C
|
58103C
58103-37031 Reinforcement Sub-Assy, Front Floor, Front[10.2003 - 06.2004] XZU304,305,344 |
58103-37031 |
US $59.11 |
||
|
58111
|
58111
58111-37172 Pan, Front Floor[10.2003 - 06.2004] XZU304,305,344 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37172 |
US $441.17 |
||
| replacement | |||||
|
58111
|
58111
58111-37176 Pan, Front Floor[10.2003 - 06.2004] XZU304,305,344 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37176 |
US $371.28 |
||
|
58111
|
58111
58111-37173 Pan, Front Floor[10.2004 - 01.2006] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37173 |
US $441.17 |
||
| replacement | |||||
|
58111
|
58111
58111-37176 Pan, Front Floor[10.2004 - 01.2006] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37176 |
US $371.28 |
||
|
58111
|
58111
58111-37174 Pan, Front Floor[02.2006 - 05.2007] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37174 |
US $371.28 |
||
| replacement | |||||
|
58111
|
58111
58111-37176 Pan, Front Floor[02.2006 - 05.2007] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
58111-37176 |
US $371.28 |
||
|
58111
|
58111
58111-37302 Pan, Front Floor[10.2003 - 06.2004] XZU304,305,344 |
58111-37302 |
US $441.17 |
||
| replacement | |||||
|
58111
|
58111
58111-37308 Pan, Front Floor[10.2003 - 06.2004] XZU304,305,344 |
58111-37308 |
US $308.67 |
||
|
58111
|
58111
58111-37303 Pan, Front Floor[10.2004 - 01.2006] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB |
58111-37303 |
US $441.17 |
||
| replacement | |||||
|
58111
|
58111
58111-37308 Pan, Front Floor[10.2004 - 01.2006] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB |
58111-37308 |
US $308.67 |
||
|
58111
|
58111
58111-37304 Pan, Front Floor[02.2006 - 05.2007] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB |
58111-37304 |
US $445.54 |
||
| replacement | |||||
|
58111
|
58111
58111-37308 Pan, Front Floor[02.2006 - 05.2007] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB |
58111-37308 |
US $308.67 |
||
|
58115B
|
58115B
58115-37013 Panel, Front Floor, Rear[10.2003 - 12.2003] XZU304,305,344 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
58115-37013 |
US $503.78 |
||
| replacement | |||||
|
58115B
|
58115B
58115-37014 Panel, Front Floor, Rear[10.2003 - 12.2003] XZU304,305,344 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
58115-37014 |
US $419.33 |
||
|
58115B
|
58115B
58115-37014 Panel, Front Floor, Rear[12.2003 - 06.2004] XZU304,305,344 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
58115-37014 |
US $419.33 |
||
|
58115B
|
58115B
58115-37023 Panel, Front Floor, Rear[10.2003 - 12.2003] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
58115-37023 |
US $503.78 |
||
| replacement | |||||
|
58115B
|
58115B
58115-37028
Panel, Front Floor, Rear
[10.2003 - 12.2003] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
58115-37028 |
— | ||
|
58115B
|
58115B
58115-37024 Panel, Front Floor, Rear[12.2003 - 06.2004] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
58115-37024 |
US $503.78 |
||
| replacement | |||||
|
58115B
|
58115B
58115-37028
Panel, Front Floor, Rear
[12.2003 - 06.2004] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
58115-37028 |
— | ||
|
58123A
|
58123A
58123-37010 Support, Shift & Select Lever[10.2003 - 06.2004] XZU304,305,344 |
58123-37010 |
US $13.40 |
||
|
58125B
|
58125B
58125-37020 Seal, Front Floor To Frame[10.2003 - 06.2004] XZU304,305,344 |
58125-37020 |
US $23.15 |
||
|
58171
|
58171
58107-37010 Reinforcement, Parking Brake Base[10.2003 - 06.2004] XZU304,305,344 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
58107-37010 |
US $37.27 |
||
|
58171
|
58171
58171-37010 Reinforcement, Parking Brake Base[10.2003 - 06.2004] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
58171-37010 |
US $35.24 |
||
|
58181A
|
58181A
58181-37030 Retainer, Seat Rail, Front[10.2003 - 06.2004] XZU304,305,344 |
58181-37030 |
US $16.74 |
||
|
58182B
|
58182B
58182-37010 Retainer, Seat Rail, Front Lh[10.2003 - 06.2004] XZU304,305,344 |
58182-37010 |
US $5.68 |
||
|
58183F
|
58183F
58183-37061 Reinforcement, Rear Mounting, Rh[10.2003 - 06.2004] XZU304,305,344 |
58183-37061 |
US $104.83 |
||
| replacement | |||||
|
58183F
|
58183F
58183-37063 Reinforcement, Rear Mounting, Rh[10.2003 - 06.2004] XZU304,305,344 |
58183-37063 |
US $78.62 |
||
|
58184E
|
58184E
58184-37073 Reinforcement, Rear Mounting, Lh[10.2003 - 06.2004] XZU304,305,344 |
58184-37073 |
US $104.83 |
||
| replacement | |||||
|
58184E
|
58184E
58184-37074 Reinforcement, Rear Mounting, Lh[10.2003 - 06.2004] XZU304,305,344 |
58184-37074 |
US $78.62 |
||
|
58192B
|
58192B
58192-37020 Plate, Front Floor, Rear[10.2003 - 06.2004] XZU304,305,344 |
58192-37020 |
US $2.91 |
||
|
58251B
|
58251B
58251-37031 Brace, Floor Panel, Front[10.2003 - 06.2004] XZU304,305,344 |
58251-37031 |
US $90.27 |
||
| replacement | |||||
|
58251B
|
58251B
58251-37032 Brace, Floor Panel, Front[10.2003 - 06.2004] XZU304,305,344 |
58251-37032 |
US $69.22 |
||
|
58251B
|
58251B
58251-37032 Brace, Floor Panel, Front[02.2006 -] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
58251-37032 |
US $69.22 |
||
|
58252B
|
58252B
58252-37031 Brace, Floor Panel, Front Lh[10.2003 - 06.2004] XZU304,305,344 |
58252-37031 |
US $40.99 |
||
|
58295C
|
58295C
58295-37060 Bracket, Floor Shift Lever, No.1[10.2003 - 06.2004] XZU304,305,344 |
58295-37060 |
US $22.13 |
||
|
58298A
|
58298A
58298-37010 Reinforcement, Seat Belt Anchor Floor, Rh[10.2003 - 06.2004] XZU304,305,344 |
58298-37010 |
US $13.25 |
||
|
58299B
|
58299B
58298-37010 Reinforcement, Seat Belt Anchor Floor, Rh[10.2003 - 06.2004] XZU304,305,344 |
58298-37010 |
US $13.25 |
||
|
58335C
|
58335C
58335-37040 Plate, Floor Side, Front Rh[10.2003 - 06.2004] XZU304,305,344 |
58335-37040 |
US $57.37 |
||
| replacement | |||||
|
58335C
|
58335C
58335-37041 Plate, Floor Side, Front Rh[10.2003 - 06.2004] XZU304,305,344 |
58335-37041 |
US $36.11 |
||
|
58336C
|
58336C
58336-37031 Plate, Floor Side, Front Lh[10.2003 - 06.2004] XZU304,305,344 |
58336-37031 |
US $35.38 |
||
|
58412B
|
58412B
58412-37030 Reinforcement, Engine Sub Cover[10.2003 - 06.2004] XZU304,305,344 |
58412-37030 |
US $91.73 |
||
| replacement | |||||
|
58412B
|
58412B
58412-37032 Reinforcement, Engine Sub Cover[10.2003 - 06.2004] XZU304,305,344 |
58412-37032 |
US $75.71 |
||
|
58848A
|
58848A
58840-37010 Cover, Shift Lever Hole[10.2003 - 06.2004] XZU304,305,344 |
58840-37010 |
US $15.43 |
||
|
58853A
|
58853A
58853-37020 Packing, Shift Lever Hole[10.2003 - 06.2004] XZU304,305,344 |
58853-37020 |
US $3.06 |
||
|
58995C
|
58995C
58995-37030 Bracket, Console Box Mounting, No.1[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
58995-37030 |
US $6.70 |
||
|
58996B
|
58996B
58996-37020 Bracket, Console Box Mounting, No.2[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
58996-37020 |
US $7.28 |
||
|
61335F
|
61335F
57405-37070 Retainer, Seat Belt Anchor[10.2003 - 06.2004] XZU304,344..T3,T4,T5 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ) |
57405-37070 |
US $17.76 |
||
|
61335F
|
61335F
61335-37010 Retainer, Seat Belt Anchor[10.2003 - 06.2004] XZU304,305,344 ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
61335-37010 |
US $14.85 |
||
|
61825H
|
61825H
61825-34010 Plate, Noise Control, No.2[10.2003 - 06.2004] XZU304,305,344 |
61825-34010 |
US $15.72 |
||
|
64018
|
64018
64018-37070 Bar Sub-Assy, Body[10.2003 - 06.2004] XZU304,305,344 |
64018-37070 |
US $125.22 |
||
| replacement | |||||
|
64018
|
64018
64018-37071 Bar Sub-Assy, Body[10.2003 - 06.2004] XZU304,305,344 |
64018-37071 |
US $77.17 |
||
|
64025A
|
64025A
64171-37011 Bracket Sub-Assy, Rear Mounting, Rh[10.2003 - 06.2004] XZU304,305,344 |
64171-37011 |
US $78.62 |
||
| replacement | |||||
|
64025A
|
64025A
64171-37013 Bracket Sub-Assy, Rear Mounting, Rh[10.2003 - 06.2004] XZU304,305,344 |
64171-37013 |
US $80.08 |
||
|
64026B
|
64026B
64026-37100 Bracket Sub-Assy, Rear Mounting, Lh[10.2003 - 06.2004] XZU304,344..T3,T4,T5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
64026-37100 |
US $37.42 |
||
|
64026B
|
64026B
64172-37022 Bracket Sub-Assy, Rear Mounting, Lh[10.2003 - 06.2004] XZU304,305,344 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
64172-37022 |
US $78.62 |
||
|
64151
|
64151
64151-37181 Frame, Back[10.2003 - 06.2004] XZU304,305,344 |
64151-37181 |
US $278.10 |
||
|
64153D
|
64153D
52123-32040 Reinforcement, Back Frame[10.2003 - 06.2004] XZU304,305,344 |
52123-32040 |
US $3.93 |
||
|
64177A
|
64177A
64177-37030 Stopper, Rear Mounting Bracket, Rh[10.2003 - 06.2004] XZU304,305,344 |
64177-37030 |
US $35.24 |
||
| replacement | |||||
|
64177A
|
64177A
64177-37031 Stopper, Rear Mounting Bracket, Rh[10.2003 - 06.2004] XZU304,305,344 |
64177-37031 |
US $22.13 |
||
|
64177A
|
64177A
64177-37031 Stopper, Rear Mounting Bracket, Rh[04.2006 -] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
64177-37031 |
US $22.13 |
||
|
64178A
|
64178A
64178-37030 Stopper, Rear Mounting Bracket, Lh[10.2003 - 06.2004] XZU304,305,344 |
64178-37030 |
US $35.24 |
||
| replacement | |||||
|
64178A
|
64178A
64178-37031 Stopper, Rear Mounting Bracket, Lh[10.2003 - 06.2004] XZU304,305,344 |
64178-37031 |
US $22.13 |
||
|
64178A
|
64178A
64178-37031 Stopper, Rear Mounting Bracket, Lh[04.2006 -] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
64178-37031 |
US $22.13 |
||
|
9010508347
|
9010508347
90105-08347 New Genuine Part |
90105-08347 |
US $1.02 |
||
|
9011906801
|
9011906801
90119-06801 New Genuine Part |
90119-06801 |
US $0.73 |
||
|
9015960366
|
9015960366
90159-60366 New Genuine Part |
90159-60366 |
US $2.15 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.46 |
||
|
9046709087
|
9046709087
90467-09087
Clip(For Floor Carpet, Rear)
|
90467-09087 |
— | ||
| replacement | |||||
|
9046709087
|
9046709087
90467-09087-22 Clip |
90467-09087-22 |
from US $0.70 |
||
|
9095001231
|
9095001231
90950-01231 New Genuine Part |
90950-01231 |
US $2.33 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.33 |
||
|
9164281030
|
9164281030
91642-81030 Bolt |
91642-81030 |
US $3.05 |
||
|
9164281035
|
9164281035
91642-81035 BOLT WWASHER |
91642-81035 |
US $4.30 |
||
