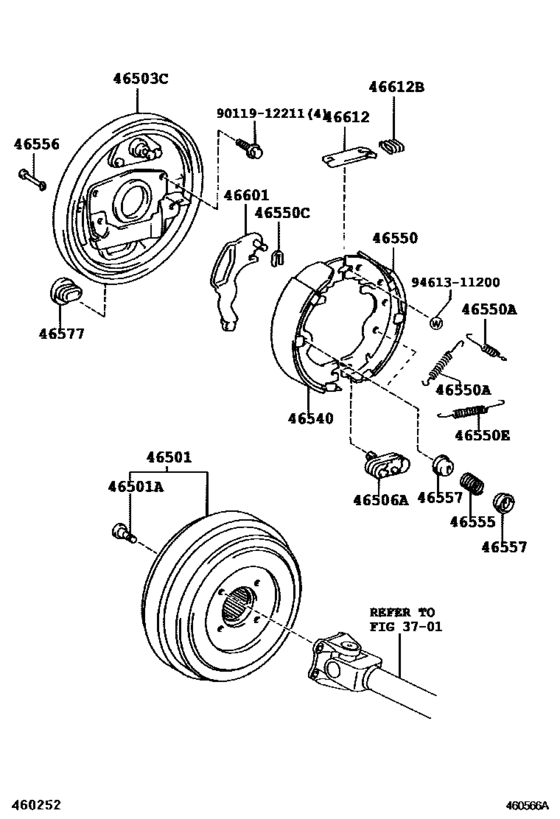

Parking Brake & Cable ([10.2003 - 06.2004] (0310-0406)XZU304,344..T3,T4,T5) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- XZU344
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2003
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- DCRL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46501
|
46501
46501-37060 Drum Sub-Assy, Parking Brake[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
46501-37060 |
from US $177.22 |
||
|
46501A
|
46501A
90031-01170 Bolt, Serration(For Parking Brake Drum)[10.2003 - 06.2004] XZU304,305,344 |
90031-01170 |
from US $1.33 |
||
|
46503C
|
46503C
46503-37681 Plate Sub-Assy, Parking Brake[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
46503-37681 |
US $211.20 |
||
|
46506A
|
46506A
46506-36010 Screw Set, Shoe Adjusting, Rh[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
46506-36010 |
US $23.52 |
||
|
46540
|
46540
46530-37030 Shoe Assy, Parking Brake, Rh Or Center No.1[10.2003 - 11.2003] XZU344..T4..IV3;XZU304..T4..DCRL;XZU304..30T..DCRL..IV3;XZU304..SCB..(T3,T4)..DSLL ;XZU304..30T..DCRL..CBU..4NO |
46530-37030 |
US $24.53 |
||
|
46550
|
46550
46530-37030 Shoe Assy, Parking Brake, Rh Or Center No.1[10.2003 - 11.2003] XZU344..T4..IV3;XZU304..T4..DCRL;XZU304..30T..DCRL..IV3;XZU304..SCB..(T3,T4)..DSLL ;XZU304..30T..DCRL..CBU..4NO |
46530-37030 |
US $24.53 |
||
|
46550A
|
46550A
90506-18001 Spring, Tension[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
90506-18001 |
US $3.05 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[10.2003 - 11.2003] XZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU 304,305..(DM6,T3,T4)..DCRL..IV3 |
90213-06003 |
from US $0.90 |
||
|
46550E
|
46550E
90506-14012 Spring, Tension, No.2(For Parking Brake Shoe Return)[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
90506-14012 |
US $3.94 |
||
|
46555
|
46555
90501-16025 Spring, Brake Shoe Hold Down[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
90501-16025 |
from US $2.81 |
||
|
46556
|
46556
47447-22010 Pin, Shoe Hold Down Spring[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
47447-22010 |
from US $1.37 |
||
|
46557
|
46557
47449-20011 Cup, Brake Shoe Hold Down[10.2003 - 06.2004] XZU304,305,344 |
47449-20011 |
from US $2.05 |
||
|
46577
|
46577
46577-36010 Cover, Adjusting Cam Hole[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
46577-36010 |
US $7.17 |
||
|
46601
|
46601
46601-37680 Lever Sub-Assy, Parking Brake Shoe[10.2003 - 11.2003] XZU344..T4..IV3;XZU304..T4..DCRL;XZU304..30T..DCRL..IV3;XZU304..SCB..(T3,T4)..DSLL ;XZU304..30T..DCRL..CBU..4NO |
46601-37680 |
US $10.39 |
||
|
46612
|
46612
46612-36010 Strut, Parking Brake Shoe Lever[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
46612-36010 |
US $16.13 |
||
|
46612B
|
46612B
90504-10001 Spring, Compression(For Parking Brake Shoe Strut)[10.2003 - 06.2004] XZU304,344..T3,T4,T5 |
90504-10001 |
from US $2.51 |
||
|
9011912211
|
9011912211
90119-12211 BOLT WWASHER |
90119-12211 |
from US $1.29 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
