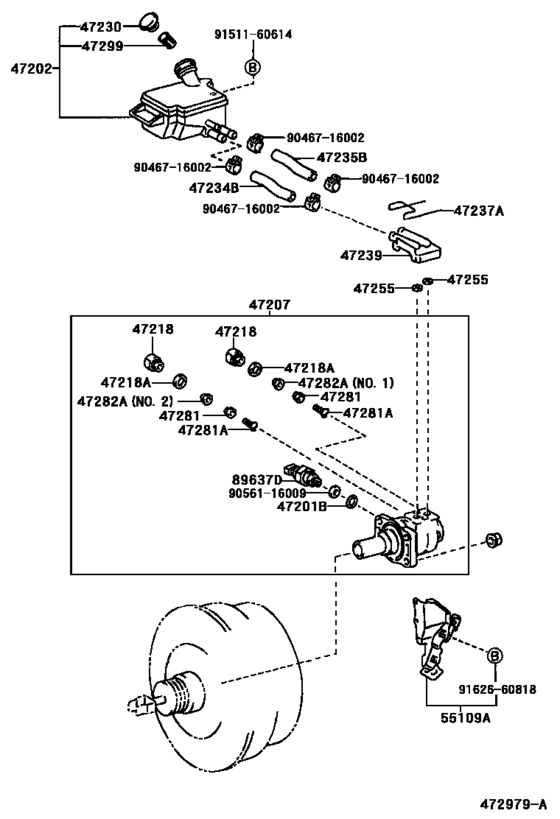

Brake Master Cylinder ([10.2000 - ] (0010- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201B
|
47201B
90301-15014 Ring, O(For Drain Plug)[10.2000 - 06.2002] XZU402,41#,420,430 |
90301-15014 |
US $1.31 |
||
|
47202
|
47202
47220-37050 Reservoir Sub-Assy, Brake Master Cylinder[10.2000 - 02.2001] XZU402,41#,420,430..MTM |
47220-37050 |
US $56.35 |
||
| replacement | |||||
|
47202
|
47202
47220-37051 Reservoir Sub-Assy, Brake Master Cylinder[10.2000 - 02.2001] XZU402,41#,420,430..MTM |
47220-37051 |
US $35.38 |
||
|
47202
|
47202
47220-37051 Reservoir Sub-Assy, Brake Master Cylinder[02.2001 - 06.2002] XZU402,41#,420,430..MTM |
47220-37051 |
US $35.38 |
||
|
47207
|
47207
47207-37011 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[10.2000 - 06.2002] XZU410,411,420,430 |
47207-37011 |
US $528.53 |
||
| replacement | |||||
|
47207
|
47207
47207-37012 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[10.2000 - 06.2002] XZU410,411,420,430 |
47207-37012 |
US $611.52 |
||
|
47218
|
47218
47218-36091 Plug, Master Cylinder Fluid Outlet[10.2000 - 06.2002] XZU402,41#,420,430 |
47218-36091 |
US $5.39 |
||
|
47218A
|
47218A
90430-16013 Gasket(For Fluid Outlet Plug)[10.2000 - 06.2002] XZU402,41#,420,430 |
90430-16013 |
US $1.02 |
||
|
47230
|
47230
47230-37020 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2000 - 06.2002] XZU402,41#,420,430 |
47230-37020 |
US $7.88 |
||
|
47234B
|
47234B
47234-37100 Tube, Reservoir, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
47234-37100 |
US $2.62 |
||
|
47235B
|
47235B
47235-37090 Tube, Brake Master Cyrinder Reservoir, No.2[10.2000 - 06.2002] XZU402,41#,420,430 |
47235-37090 |
US $2.62 |
||
|
47237A
|
47237A
47237-36020 Stopper, Breke Master Cylinder Reservoir Tank[10.2000 - 06.2002] XZU402,41#,420,430 |
47237-36020 |
US $5.91 |
||
|
47239
|
47239
47239-37010 Connector, Brake Master Cylinder Reservoir[10.2000 - 06.2002] XZU402,41#,420,430 |
47239-37010 |
US $15.95 |
||
|
47255
|
47255
47255-52010 Grommet, Master Cylinder Reservoir[10.2000 - 06.2002] XZU402,41#,420,430 |
47255-52010 |
from US $2.32 |
||
|
47281
|
47281
47281-36010 Valve, Brake Master Cylinder Outlet Check[10.2000 - 06.2002] XZU402,41#,420,430 |
47281-36010 |
US $4.37 |
||
|
47281A
|
47281A
90905-01054 Spring Compression(For Outlet Check Valve)[10.2000 - 06.2002] XZU402,41#,420,430 |
90905-01054 |
US $0.29 |
||
|
47282A
|
47282A
47282-36010 Seat, Outlet Check Valve, No.1[10.2000 - 06.2002] XZU410,411,420,430 NO.1 & NO.2 |
47282-36010 |
US $0.58 |
||
|
47299
|
47299
47299-28010 Strainer, Brake Master Cylinder Reservoir[10.2000 - 06.2002] XZU402,41#,420,430 |
47299-28010 |
US $5.68 |
||
|
55109A
|
55109A
55109-37010 Support Sub-Assy, Brake Master Cylinder[10.2000 - 06.2002] XZU402,41#,420,430 |
55109-37010 |
US $24.02 |
||
| replacement | |||||
|
55109A
|
55109A
55109-37011 Support Sub-Assy, Brake Master Cylinder[10.2000 - 06.2002] XZU402,41#,420,430 |
55109-37011 |
US $16.45 |
||
|
89637D
|
89637D
89637-51010 Sensor, Oil Pressure[10.2000 - 06.2002] XZU402,41#,420,430 |
89637-51010 |
US $256.84 |
||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
|
9056116009
|
9056116009
90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor) |
90561-16009 |
US $0.96 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
