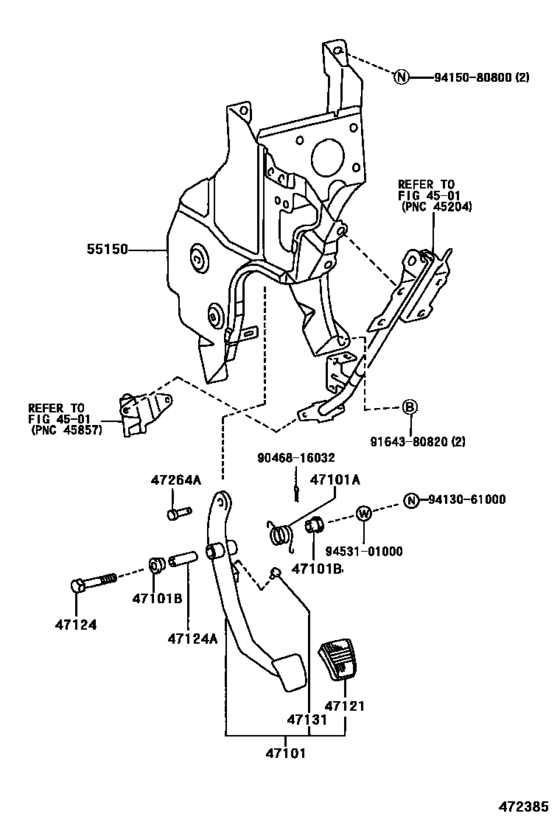

Brake Pedal & Bracket ([10.2000 - ] (0010- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-37050 Pedal Sub-Assy, Brake[10.2000 - 06.2002] XZU402,41#,420,430 |
47101-37050 |
US $26.50 |
||
|
47101A
|
47101A
90508-35324 Spring(For Brake Pedal Return)[10.2000 - 06.2002] XZU402,41#,420,430 |
90508-35324 |
US $2.53 |
||
|
47101B
|
47101B
90386-13007 Bush(For Clutch Pedal)[10.2000 - 06.2002] XZU402,41#,420,430 |
90386-13007 |
from US $2.48 |
||
|
47121
|
47121
31321-14020 Pad, Clutch Pedal[10.2000 - 06.2002] XZU402,41#,420,430 |
31321-14020 |
from US $3.37 |
||
| replacement | |||||
|
47121
|
47121
31321YE010
PAD PEDAL
[10.2000 - 06.2002] XZU402,41#,420,430 |
31321YE010 |
— | ||
|
47124
|
47124
91112-61070 Shaft, Clutch Pedal[10.2000 - 06.2002] XZU402,41#,420,430 |
91112-61070 |
US $4.66 |
||
|
47124A
|
47124A
90387-10004 Collar, Clutch Pedal Shaft[10.2000 - 06.2002] XZU402,41#,420,430 |
90387-10004 |
from US $3.76 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[10.2000 - 06.2002] XZU402,41#,420,430 |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[10.2000 - 06.2002] XZU402,41#,420,430 |
90541060361 |
— | ||
|
47264A
|
47264A
90240-10037 Pin(For Push Rod)[10.2000 - 06.2002] XZU402,41#,420,430 |
90240-10037 |
US $4.66 |
||
|
55150
|
55150
55150-37071 Bracket Assy, Pedal[10.2000 - 04.2001] XZU402,41#,420,430..MTM |
55150-37071 |
US $155.79 |
||
| replacements | |||||
|
55150
|
55150
44597-37021 Clamp(For Clutch Booster Vacuum)[10.2000 - 04.2001] XZU402,41#,420,430..MTM |
44597-37021 |
US $2.33 |
||
|
55150
|
55150
55150-37074 Bracket Assy, Pedal[10.2000 - 04.2001] XZU402,41#,420,430..MTM |
55150-37074 |
US $106.29 |
||
|
55150
|
55150
55150-37072 Bracket Assy, Pedal[04.2001 - 07.2001] XZU402,41#,420,430..MTM |
55150-37072 |
US $155.79 |
||
| replacement | |||||
|
55150
|
55150
55150-37074 Bracket Assy, Pedal[04.2001 - 07.2001] XZU402,41#,420,430..MTM |
55150-37074 |
US $106.29 |
||
|
55150
|
55150
55150-37073 Bracket Assy, Pedal[07.2001 - 06.2002] XZU402,41#,420,430..MTM |
55150-37073 |
US $155.79 |
||
| replacement | |||||
|
55150
|
55150
55150-37074 Bracket Assy, Pedal[07.2001 - 06.2002] XZU402,41#,420,430..MTM |
55150-37074 |
US $106.29 |
||
|
9046816032
|
9046816032
90468-16032 CLIP |
90468-16032 |
from US $0.90 |
||
|
9164380820
|
9164380820
91643-80820 New Genuine Part |
91643-80820 |
US $1.75 |
||
| replacement | |||||
|
9164380820
|
9164380820
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
