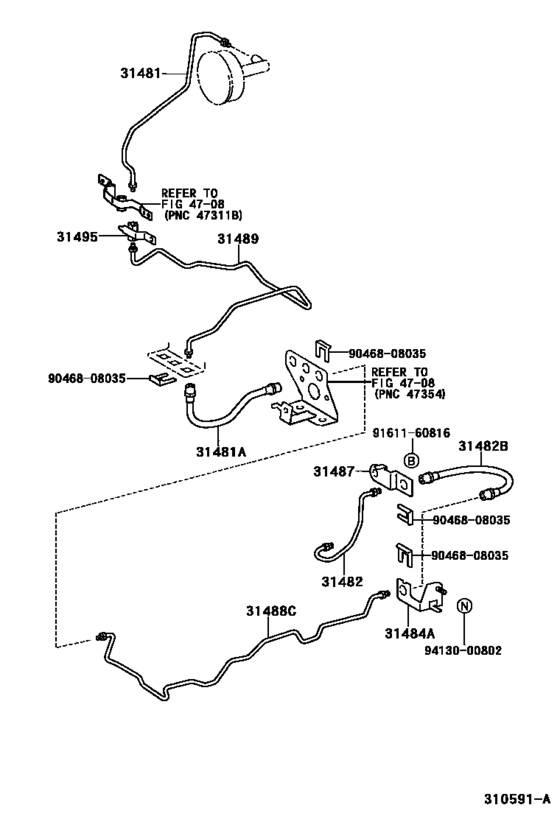

Clutch Pedal & Flexible Hose ([10.2000 - ] (0010- )MTM) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-37120 Tube, Clutch Master Cylinder To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31481-37120 |
US $10.48 |
||
| replacement | |||||
|
31481
|
31481
31481-37121 Tube, Clutch Master Cylinder To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31481-37121 |
US $8.74 |
||
|
31481A
|
31481A
90931-01143
Hose, Clutch, No.1
[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
90931-01143 |
— | ||
| replacement | |||||
|
31481A
|
31481A
31486-37110 Hose, Clutch, No.1[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31486-37110 |
US $13.87 |
||
|
31482
|
31482
31482-37080 Tube, Clutch Release Cylinder To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31482-37080 |
US $10.34 |
||
|
31482
|
31482
31482-37110 Tube, Clutch Release Cylinder To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM W(CLUTCH ADJUSTMENT) |
31482-37110 |
US $11.07 |
||
|
31482B
|
31482B
90931-01142
Hose, Clutch, No.1
[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
90931-01142 |
— | ||
| replacement | |||||
|
31482B
|
31482B
31486-37180 Hose, Clutch, No.1[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31486-37180 |
US $29.40 |
||
|
31484A
|
31484A
31484-37180 Bracket, Flexible Hose, No.1(For Clutch)[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31484-37180 |
US $10.34 |
||
|
31487
|
31487
31487-37050 Plate, Release Tube Set[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31487-37050 |
US $6.41 |
||
|
31488C
|
31488C
31488-37300 Tube, Flexible Hose To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31488-37300 |
US $29.12 |
||
|
31489
|
31489
31481-37160 Tube, Tube Connector To Flexible Hose[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31481-37160 |
US $9.03 |
||
|
31495
|
31495
31495-37020 Way, Clutch Tube[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
31495-37020 |
US $7.43 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
