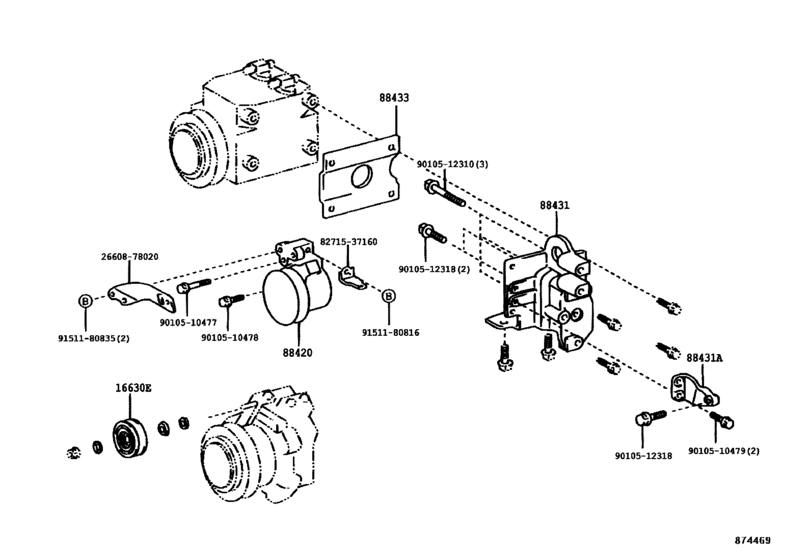

Heating & Air Conditioning - Compressor ([10.2000 - ] REFRIGERATOR CAR (0010- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16630E
|
16630E
16630-78030 Pulley Assy, Idler[10.2000 - 06.2002] J05C,S05#..XZU402,41#,420,430 |
16630-78030 |
US $152.01 |
||
|
88420
|
88420
88420-37141 Pulley Assy, Idle, W/bracket[10.2000 - 06.2002] XZU402,41#,420,430 |
88420-37141 |
US $468.83 |
||
| replacement | |||||
|
88420
|
88420
88420-37142 Pulley Assy, Idle, W/bracket[10.2000 - 06.2002] XZU402,41#,420,430 |
88420-37142 |
US $468.83 |
||
|
88431
|
88431
88345-37040 Bracket, Compressor Mounting, No.1[10.2000 - 06.2002] XZU410,420,430 REFRIGERATOR CAR |
88345-37040 |
US $340.70 |
||
|
88431
|
88431
88345-37080
Bracket, Compressor Mounting, No.1
[10.2000 - 06.2002] XZU410,420,430 |
88345-37080 |
— | ||
| replacement | |||||
|
88431
|
88431
88345-37090
Bracket, Compressor Mounting, No.1
[10.2000 - 06.2002] XZU410,420,430 |
88345-37090 |
— | ||
|
88431A
|
88431A
88345-37070 Bracket, Compressor Mounting, No.2[10.2000 - 06.2002] XZU410,420,430 |
88345-37070 |
US $59.40 |
||
|
88433
|
88433
88345-37120 Bracket, Compressor Mounting[10.2000 - 06.2002] XZU402,41#,420,430 |
88345-37120 |
US $64.94 |
||
|
2660878020
|
2660878020
26608-78020 Bracket Sub-assy, Accelerator Wire |
26608-78020 |
US $18.35 |
||
|
8271537160
|
8271537160
82715-37160 Bracket,wiring Harness Clamp |
82715-37160 |
US $3.20 |
||
|
9010510477
|
9010510477
90105-10477 New Genuine Part |
90105-10477 |
US $3.49 |
||
| replacement | |||||
|
9010510477
|
9010510477
90031-05121 New Genuine Part |
90031-05121 |
US $3.49 |
||
|
9010510478
|
9010510478
90105-10478 New Genuine Part |
90105-10478 |
US $2.15 |
||
|
9010510479
|
9010510479
90105-10479 New Genuine Part |
90105-10479 |
US $1.60 |
||
|
9010512310
|
9010512310
90105-12310 New Genuine Part |
90105-12310 |
US $3.20 |
||
|
9010512318
|
9010512318
90105-12318 New Genuine Part |
90105-12318 |
US $2.04 |
||
|
9151180816
|
9151180816
91511-80816 BOLTFLANGE |
91511-80816 |
US $1.61 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.84 |
||
