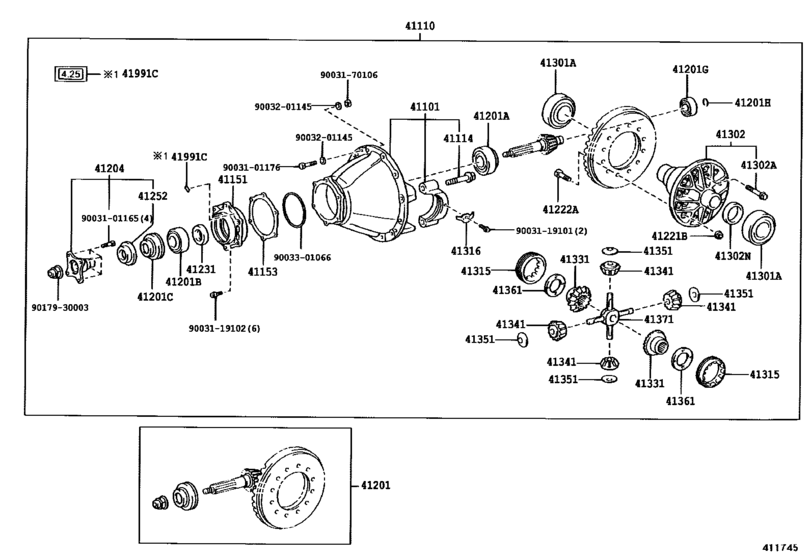

Rear Axle Housing & Differential ([10.2000 - ] 13INCHES DIFFERENTIAL (0010- )XZU410,420,430) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-37020 Carrier Sub-Assy, Differential, Rear[10.2000 - 12.2000] XZU410,420,430 |
41101-37020 |
US $1,097.82 |
||
|
41101
|
41101
41101-37030 Carrier Sub-Assy, Differential, Rear[12.2000 - 02.2002] XZU410,420,430 |
41101-37030 |
US $1,097.82 |
||
|
41101
|
41101
41101-37050 Carrier Sub-Assy, Differential, Rear[02.2002 - 06.2002] XZU410,420,430 |
41101-37050 |
US $693.06 |
||
|
41110
|
41110
41110-37270 Carrier Assy, Differential, Rear[10.2000 - 12.2000] XZU410,420,430 *FGR=41:7=5.857 |
41110-37270 |
US $5,154.24 |
||
|
41110
|
41110
41110-37280 Carrier Assy, Differential, Rear[12.2000 - 06.2002] XZU410,420,430 *FGR=45:7=6.428 |
41110-37280 |
US $5,154.24 |
||
|
41114
|
41114
90031-05043 Bolt, Rear Differential Bearing Cap[10.2000 - 06.2002] XZU410,420,430 |
90031-05043 |
US $7.57 |
||
| replacement | |||||
|
41114
|
41114
SZ105-16030 Bolt, Rear Differential Bearing Cap[10.2000 - 06.2002] XZU410,420,430 |
SZ105-16030 |
from US $5.13 |
||
|
41151
|
41151
41151-37010 Cage, Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 |
41151-37010 |
US $163.07 |
||
|
41151
|
41151
41151-37020 Cage, Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 |
41151-37020 |
US $94.64 |
||
|
41153
|
41153
41153-37010 Shim, Differential Drive Pinion Cage[10.2000 - 02.2002] XZU410,420,430 T=0.30 |
41153-37010 |
US $4.37 |
||
|
41153
|
41153
41153-37020 Shim, Differential Drive Pinion Cage[10.2000 - 02.2002] XZU410,420,430 T=0.40 |
41153-37020 |
US $5.53 |
||
|
41153
|
41153
41153-37030 Shim, Differential Drive Pinion Cage[10.2000 - 02.2002] XZU410,420,430 T=0.45 |
41153-37030 |
US $5.53 |
||
|
41153
|
41153
41153-37040 Shim, Differential Drive Pinion Cage[10.2000 - 02.2002] XZU410,420,430 T=0.50 |
41153-37040 |
US $5.53 |
||
|
41153
|
41153
41153-37050 Shim, Differential Drive Pinion Cage[02.2002 - 06.2002] XZU410,420,430 T=0.30 |
41153-37050 |
US $2.62 |
||
|
41153
|
41153
41153-37060 Shim, Differential Drive Pinion Cage[02.2002 - 06.2002] XZU410,420,430 T=0.40 |
41153-37060 |
US $3.35 |
||
|
41153
|
41153
41153-37070 Shim, Differential Drive Pinion Cage[02.2002 - 06.2002] XZU410,420,430 T=0.45 |
41153-37070 |
US $3.35 |
||
|
41153
|
41153
41153-37080 Shim, Differential Drive Pinion Cage[02.2002 - 06.2002] XZU410,420,430 T=0.50 |
41153-37080 |
US $3.35 |
||
|
41201
|
41201
41201-80159 Final Gear Kit, Differential, Rear[10.2000 - 12.2000] XZU410,420,430 *FGR=41:7=5.857 |
41201-80159 |
US $2,970.24 |
||
| replacement | |||||
|
41201
|
41201
41201-80558 Final Gear Kit, Differential, Rear[10.2000 - 12.2000] XZU410,420,430 *FGR=41:7=5.857 |
41201-80558 |
US $1,863.68 |
||
|
41201
|
41201
41201-80162 Final Gear Kit, Differential, Rear[12.2000 - 02.2002] XZU410,420,430 *FGR=45:7=6.428 |
41201-80162 |
US $2,970.24 |
||
| replacement | |||||
|
41201
|
41201
41201-80209 Final Gear Kit, Differential, Rear[12.2000 - 02.2002] XZU410,420,430 *FGR=45:7=6.428 |
41201-80209 |
US $2,970.24 |
||
|
41201
|
41201
41201-80209 Final Gear Kit, Differential, Rear[02.2002 - 06.2002] XZU410,420,430 *FGR=45:7=6.428 |
41201-80209 |
US $2,970.24 |
||
|
41201A
|
41201A
90033-66035 Bearing (For Rear Drive Pinion Rear)[10.2000 - 06.2002] XZU410,420,430 |
90033-66035 |
US $80.08 |
||
| replacement | |||||
|
41201A
|
41201A
SZ366-55011 Bearing (For Rear Drive Pinion Rear)[10.2000 - 06.2002] XZU410,420,430 |
SZ366-55011 |
US $80.08 |
||
|
41201B
|
41201B
90033-66034 Bearing (For Rear Drive Pinion Front)[10.2000 - 02.2002] XZU410,420,430 |
90033-66034 |
from US $93.18 |
||
|
41201B
|
41201B
90033-66038 Bearing (For Rear Drive Pinion Front)[02.2002 - 06.2002] XZU410,420,430 |
90033-66038 |
US $56.78 |
||
| replacement | |||||
|
41201B
|
41201B
SZ366-45013 Bearing (For Rear Drive Pinion Front)[02.2002 - 06.2002] XZU410,420,430 |
SZ366-45013 |
US $54.51 |
||
|
41201C
|
41201C
90033-11033 Seal, Oil (For Rear Differential Carrier)[10.2000 - 02.2002] XZU410,420,430 |
90033-11033 |
US $19.95 |
||
|
41201C
|
41201C
90033-11039 Oil Seal, Type T[02.2002 - 06.2002] XZU410,420,430 |
90033-11039 |
from US $29.40 |
||
|
41201G
|
41201G
90033-65001 Bearing, Differential Drive Pinion Cylindlical Roller[10.2000 - 06.2002] XZU410,420,430 |
90033-65001 |
US $87.36 |
||
|
41201H
|
41201H
90035-20019 Ring, Drive Pinion Cylindrical Roller Bearing Locking[10.2000 - 06.2002] XZU410,420,430 |
90035-20019 |
US $1.16 |
||
|
41204
|
41204
41204-37050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[10.2000 - 02.2002] XZU410,420,430 |
41204-37050 |
US $189.28 |
||
|
41204
|
41204
41204-37060 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[02.2002 - 06.2002] XZU410,420,430 |
41204-37060 |
US $97.55 |
||
|
41221B
|
41221B
90031-75005 Nut(For Rear Differential Ring Gear Set)[10.2000 - 06.2002] XZU410,420,430 |
90031-75005 |
US $4.95 |
||
| replacement | |||||
|
41221B
|
41221B
90031-75013 Nut(For Rear Differential Ring Gear Set)[10.2000 - 06.2002] XZU410,420,430 |
90031-75013 |
US $1.60 |
||
|
41222A
|
41222A
90031-09055 Bolt (For Rear Differential Ring Gear Set)[10.2000 - 06.2002] XZU410,420,430 |
90031-09055 |
US $3.20 |
||
|
41231
|
41231
41231-37010 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=13.975 |
41231-37010 |
US $16.89 |
||
|
41231
|
41231
41231-37020 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.000 |
41231-37020 |
US $16.89 |
||
|
41231
|
41231
41231-37030 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.025 |
41231-37030 |
US $16.89 |
||
|
41231
|
41231
41231-37040 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.050 |
41231-37040 |
US $16.89 |
||
|
41231
|
41231
41231-37050 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.075 |
41231-37050 |
US $16.89 |
||
|
41231
|
41231
41231-37060 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.100 |
41231-37060 |
US $16.89 |
||
|
41231
|
41231
41231-37070 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.125 |
41231-37070 |
US $16.89 |
||
|
41231
|
41231
41231-37080 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.150 |
41231-37080 |
US $16.89 |
||
|
41231
|
41231
41231-37090 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.175 |
41231-37090 |
US $16.89 |
||
|
41231
|
41231
41231-37100 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.200 |
41231-37100 |
US $16.89 |
||
|
41231
|
41231
41231-37110 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.225 |
41231-37110 |
US $16.89 |
||
|
41231
|
41231
41231-37120 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.250 |
41231-37120 |
US $16.89 |
||
|
41231
|
41231
41231-37130 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.275 |
41231-37130 |
US $16.89 |
||
|
41231
|
41231
41231-37140 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.300 |
41231-37140 |
US $16.89 |
||
|
41231
|
41231
41231-37150 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.325 |
41231-37150 |
US $16.89 |
||
|
41231
|
41231
41231-37160 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.350 |
41231-37160 |
US $16.89 |
||
|
41231
|
41231
41231-37170 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=14.375 |
41231-37170 |
US $16.89 |
||
|
41231
|
41231
41231-37180 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=13.900 |
41231-37180 |
US $16.89 |
||
|
41231
|
41231
41231-37190 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=13.925 |
41231-37190 |
US $16.89 |
||
|
41231
|
41231
41231-37200 Spacer, Rear Differential Drive Pinion Bearing[10.2000 - 02.2002] XZU410,420,430 T=13.950 |
41231-37200 |
US $16.89 |
||
|
41231
|
41231
41231-37220 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=13.900 |
41231-37220 |
US $10.48 |
||
|
41231
|
41231
41231-37230 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=13.925 |
41231-37230 |
US $10.48 |
||
|
41231
|
41231
41231-37240 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=13.950 |
41231-37240 |
US $10.48 |
||
|
41231
|
41231
41231-37250 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=13.975 |
41231-37250 |
US $10.48 |
||
|
41231
|
41231
41231-37260 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.000 |
41231-37260 |
US $10.48 |
||
|
41231
|
41231
41231-37270 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.025 |
41231-37270 |
US $10.48 |
||
|
41231
|
41231
41231-37280 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.050 |
41231-37280 |
US $10.48 |
||
|
41231
|
41231
41231-37290 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.075 |
41231-37290 |
US $10.48 |
||
|
41231
|
41231
41231-37300 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.100 |
41231-37300 |
US $10.48 |
||
|
41231
|
41231
41231-37310 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.125 |
41231-37310 |
US $10.48 |
||
|
41231
|
41231
41231-37320 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.150 |
41231-37320 |
US $10.48 |
||
|
41231
|
41231
41231-37330 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.175 |
41231-37330 |
US $10.48 |
||
|
41231
|
41231
41231-37340 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.200 |
41231-37340 |
US $10.48 |
||
|
41231
|
41231
41231-37350 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.225 |
41231-37350 |
US $10.48 |
||
|
41231
|
41231
41231-37360 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.250 |
41231-37360 |
US $10.48 |
||
|
41231
|
41231
41231-37370 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.275 |
41231-37370 |
US $10.48 |
||
|
41231
|
41231
41231-37380 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.300 |
41231-37380 |
US $10.48 |
||
|
41231
|
41231
41231-37390 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.325 |
41231-37390 |
US $10.48 |
||
|
41231
|
41231
41231-37400 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.350 |
41231-37400 |
US $10.48 |
||
|
41231
|
41231
41231-37410 Spacer, Rear Differential Drive Pinion Bearing[02.2002 - 06.2002] XZU410,420,430 T=14.375 |
41231-37410 |
US $10.48 |
||
|
41252
|
41252
37341-89203 Deflector, Dust (For Rear Differential)[10.2000 - 06.2002] XZU410,420,430 |
37341-89203 |
US $3.35 |
||
| replacement | |||||
|
41252
|
41252
S3734-11560 Deflector, Dust (For Rear Differential)[10.2000 - 06.2002] XZU410,420,430 |
S3734-11560 |
US $11.71 |
||
|
41301A
|
41301A
90033-66036 Bearing(For Rear Differential Case)[10.2000 - 02.2002] XZU410,420,430 |
90033-66036 |
US $106.29 |
||
|
41301A
|
41301A
90033-66039
Bearing(For Rear Differential Case)
[02.2002 - 06.2002] XZU410,420,430 |
90033-66039 |
— | ||
|
41302
|
41302
41301-37010 Case Sub-Assy, Rear Differential[10.2000 - 02.2002] XZU410,420,430 |
41301-37010 |
US $1,003.18 |
||
|
41302
|
41302
41301-37020
Case Sub-Assy, Rear Differential
[02.2002 - 06.2002] XZU410,420,430 |
41301-37020 |
— | ||
| replacement | |||||
|
41302
|
41302
41301-37021 Case Sub-Assy, Rear Differential[02.2002 - 06.2002] XZU410,420,430 |
41301-37021 |
US $1,252.16 |
||
|
41302A
|
41302A
90031-05044 Bolt(For Rear Differential Case)[10.2000 - 06.2002] XZU410,420,430 |
90031-05044 |
US $12.38 |
||
|
41302N
|
41302N
41231-37210 Spacer, Differential Drive Pinion Bearing[10.2000 - 06.2002] XZU410,420,430 |
41231-37210 |
US $13.40 |
||
|
41315
|
41315
41315-37010 Nut, Rear Differential Bearing Adjusting[10.2000 - 06.2002] XZU410,420,430 |
41315-37010 |
US $29.56 |
||
|
41316
|
41316
41316-37010 Lock, Rear Differential Bearing Adjusting Nut[10.2000 - 06.2002] XZU410,420,430 |
41316-37010 |
US $2.04 |
||
|
41331
|
41331
41331-37020 Gear, Rear Differential Side[10.2000 - 06.2002] XZU410,420,430 |
41331-37020 |
US $78.62 |
||
| replacement | |||||
|
41331
|
41331
41331-37H02 Gear, Rear Differential Side[10.2000 - 06.2002] XZU410,420,430 |
41331-37H02 |
US $87.36 |
||
|
41341
|
41341
41341-37020 Pinion, Rear Differential[10.2000 - 06.2002] XZU410,420,430 |
41341-37020 |
US $46.16 |
||
| replacements | |||||
|
41341
|
41341
41331-37H01
Gear, Rear Differential Side
[10.2000 - 06.2002] XZU410,420,430 |
41331-37H01 |
— | ||
|
41341
|
41341
41331-37H02 Gear, Rear Differential Side[10.2000 - 06.2002] XZU410,420,430 |
41331-37H02 |
US $87.36 |
||
|
41351
|
41351
41351-37010 Washer, Rear Differential Pinion Thrust[10.2000 - 06.2002] XZU410,420,430 |
41351-37010 |
from US $3.32 |
||
|
41361
|
41361
41361-37010 Washer, Rear Differential Side Gear Thrust, No.1[10.2000 - 06.2002] XZU410,420,430 T=2.0 |
41361-37010 |
US $6.41 |
||
|
41371
|
41371
41371-37010 Spider, Rear Differential[10.2000 - 06.2002] XZU410,420,430 |
41371-37010 |
US $61.01 |
||
|
41991C
|
41991C
41991-37020 Caution Plate, Rear Differential[10.2000 - 12.2000] XZU410,420,430 |
41991-37020 |
US $1.31 |
||
|
41991C
|
41991C
41991-37030 Caution Plate, Rear Differential[12.2000 - 06.2002] XZU410,420,430 |
41991-37030 |
US $1.31 |
||
|
9003101165
|
9003101165
90031-01165 Bolt (For Propeller Shaft) |
90031-01165 |
US $2.87 |
||
|
9003101176
|
9003101176
90031-01176 New Genuine Part |
90031-01176 |
US $1.02 |
||
|
9003119101
|
9003119101
90031-19101 New Genuine Part |
90031-19101 |
US $1.02 |
||
|
9003119102
|
9003119102
90031-19102 New Genuine Part |
90031-19102 |
US $2.04 |
||
|
9003170106
|
9003170106
90031-70106 Nut, Hexagon |
90031-70106 |
US $1.02 |
||
|
9003201145
|
9003201145
90032-01145 New Genuine Part |
90032-01145 |
US $2.48 |
||
|
9003301066
|
9003301066
90033-01066 New Genuine Part |
90033-01066 |
US $3.35 |
||
|
9017930003
|
9017930003
90179-30003 Nut (For Rear Drive Pinion) |
90179-30003 |
from US $7.59 |
||
