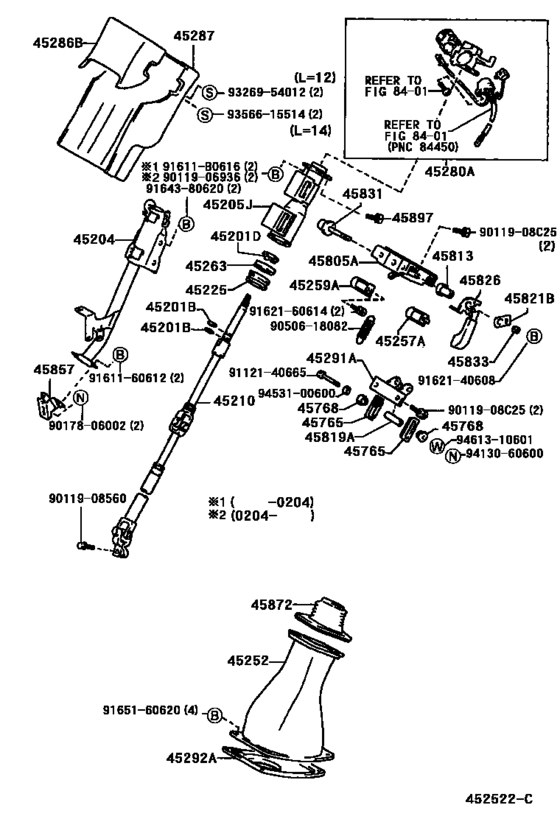

Steering Column & Shaft ([10.2000 - ] (0010- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[10.2000 - 06.2002] XZU402,41#,420,430 T=1.20 |
90520-17269 |
US $2.15 |
||
|
45201D
|
45201D
90520-28065 Ring(For Steering Main Shaft)[10.2000 - 06.2002] XZU402,41#,420,430 |
90520-28065 |
US $0.84 |
||
|
45204
|
45204
45204-37130 Tube Assy, Steering Column, Lower[10.2000 - 06.2002] XZU402,41#,420,430 |
45204-37130 |
US $64.36 |
||
|
45205J
|
45205J
45205-37050 Tube Sub-Assy, Steering Column, Upper[10.2000 - 06.2002] XZU402,41#,420,430 |
45205-37050 |
US $77.17 |
||
|
45210
|
45210
45210-37130 Shaft Assy, Steering Main[10.2000 - 06.2002] XZU402,41#,420,430 |
45210-37130 |
US $362.54 |
||
|
45225
|
45225
45225-26010 Ring, Shaft Snap(For Steering Main Shaft)[10.2000 - 06.2002] XZU402,41#,420,430 |
45225-26010 |
US $31.27 |
||
|
45252
|
45252
45252-37030-B0 Tube, Steering Column, Lower[10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45252-37030-B0 |
US $39.60 |
||
| replacement | |||||
|
45252
|
45252
45252-37031-B0 Tube, Steering Column, LowerSTEERING COLUMN, LOWER [10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45252-37031-B0 |
US $32.91 |
||
|
45257A
|
45257A
45257-37010 Plate, Steering Column Energy Absorbing[10.2000 - 06.2002] XZU402,41#,420,430 |
45257-37010 |
US $3.93 |
||
|
45259A
|
45259A
45259-37010 Sheet, Column Hole Cover Silencer[10.2000 - 06.2002] XZU402,41#,420,430 |
45259-37010 |
US $4.66 |
||
|
45263
|
45263
45263-32010 Ring, Steering Column, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
45263-32010 |
US $2.45 |
||
|
45280A
|
45280A
45280-37100 Bracket Assy, Steering Column, Upper[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
45280-37100 |
from US $149.58 |
||
|
45286B
|
45286B
45286-37080-B0
Cover, Steering Column, Upr
[10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45286-37080-B0 |
— | ||
| replacement | |||||
|
45286B
|
45286B
45286-37081-B0 Cover, Steering Column, UprSTEERING COLUMN, UPR [10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45286-37081-B0 |
US $30.58 |
||
|
45287
|
45287
45287-37080-B0
Cover, Steering Column, Lwr
[10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45287-37080-B0 |
— | ||
| replacement | |||||
|
45287
|
45287
45287-37081-B0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [10.2000 - 06.2002] XZU402,41#,420,430 MD.CHARCOAL,TRIM1# |
45287-37081-B0 |
US $52.59 |
||
|
45291A
|
45291A
45803-37010 Support, Steering Column Tube[10.2000 - 06.2002] XZU402,41#,420,430 |
45803-37010 |
US $10.63 |
||
|
45292A
|
45292A
45292-37030 Cover, Main Shaft Lower Dust[10.2000 - 06.2002] XZU402,41#,420,430 |
45292-37030 |
US $12.93 |
||
|
45765
|
45765
45765-37010 Guide, Telescopic Steering[10.2000 - 06.2002] XZU402,41#,420,430 |
45765-37010 |
US $1.16 |
||
|
45768
|
45768
45768-37010 Bush, Telescopic Steering[10.2000 - 06.2002] XZU402,41#,420,430 |
45768-37010 |
US $1.46 |
||
|
45805A
|
45805A
45805-37010 Support Sub-Assy, Tilt Steering[10.2000 - 06.2002] XZU402,41#,420,430 |
45805-37010 |
US $43.10 |
||
|
45813
|
45813
45813-37010 Collar, Tilt Steering Support, No.1[10.2000 - 06.2002] XZU402,41#,420,430 OD=30 |
45813-37010 |
US $5.39 |
||
|
45819A
|
45819A
90387-06037 Collar(For Tilt Lever Retainer)[10.2000 - 06.2002] XZU402,41#,420,430 |
90387-06037 |
US $1.40 |
||
|
45821B
|
45821B
45821-12010 Reinforce, Tilt Steering Support, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
45821-12010 |
US $1.02 |
||
|
45826
|
45826
45826-37010 Lever, Steering Tilt[10.2000 - 06.2002] XZU402,41#,420,430 |
45826-37010 |
US $9.46 |
||
|
45831
|
45831
45831-37010 Bolt, Tilt Lever Lock, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
45831-37010 |
US $5.97 |
||
|
45833
|
45833
45833-37010 Nut, Tilt Steering Adjusting, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
45833-37010 |
US $1.02 |
||
|
45857
|
45857
45857-37020 Bracket, Tilt Steering Column Tube, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
45857-37020 |
US $6.99 |
||
|
45872
|
45872
45872-37010 Cover, Steering Column Tube[10.2000 - 06.2002] XZU402,41#,420,430 |
45872-37010 |
US $7.72 |
||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[10.2000 - 04.2002] XZU402,41#,420,430 |
45897-12030 |
US $8.56 |
||
|
45897
|
45897
45897-25010 Bolt, Steering Lock Set[04.2002 - 06.2002] XZU402,41#,420,430 |
45897-25010 |
from US $3.22 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9011908C25
|
9011908C25
90119-08C25 BOLT WWASHER |
90119-08C25 |
from US $0.86 |
||
|
9011906936
|
9011906936
90119-06936 New Genuine Part |
90119-06936 |
US $1.61 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9017806002
|
9017806002
90178-06002 NUT FLANGE |
90178-06002 |
US $1.97 |
||
|
9050618082
|
9050618082
90506-18082 New Genuine Part |
90506-18082 |
US $2.33 |
||
|
9112140665
|
9112140665
91121-40665 New Genuine Part |
91121-40665 |
US $1.10 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9162140608
|
9162140608
91621-40608 New Genuine Part |
91621-40608 |
US $0.42 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9164380620
|
9164380620
91643-80620 New Genuine Part |
91643-80620 |
US $1.46 |
||
| replacement | |||||
|
9164380620
|
9164380620
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $0.82 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
|
9326954012
|
9326954012
93269-54012 SCREW |
93269-54012 |
US $1.25 |
||
|
9356615514
|
9356615514
93566-15514
Direct
|
93566-15514 |
— | ||
| replacement | |||||
|
9356615514
|
9356615514
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.78 |
||
|
9453100600
|
9453100600
94531-00600 Washer(For Outer Lever Oil Setting) |
94531-00600 |
from US $0.74 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
