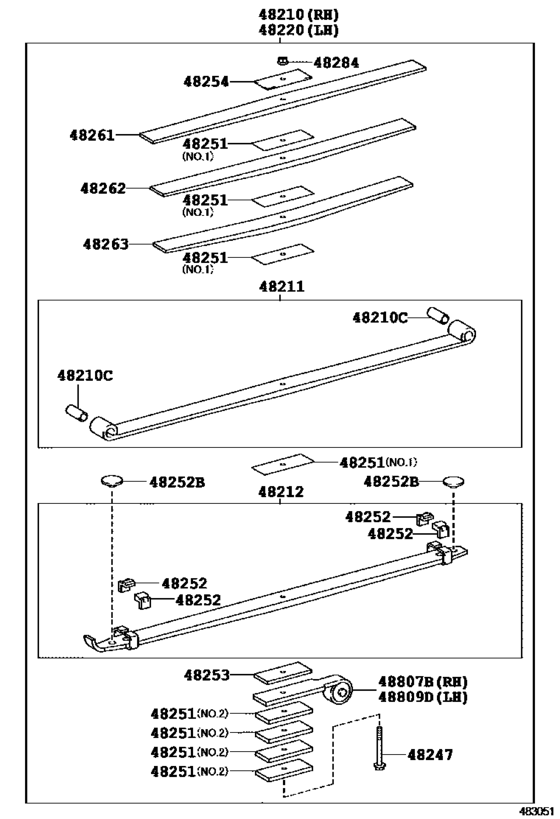

Rear Spring & Shock Absorber ([08.2009 - ] MAIN 2+HELPER 3-LEAF 48210-37F70 (0908- )XZU419,429,439) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2012
- Sales region
- Europe
- Frame
- XZU439
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- From
- 08.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Loading Capacity
- 75T
- Driver's Position
- LHD
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-37F70
Spring Assy, Rear Rh
[08.2009 - 08.2012] XZU419,429,439 MAIN 2+HELPER 3-LEAF,W(STABILIZER) |
48210-37F70 |
— | ||
|
48210
|
48210
48210-3V450 Spring Assy, Rear RhREAR RH [08.2007 - 08.2012] XZU415,419,425,429,435,439 MAIN 2+HELPER 3-LEAF |
48210-3V450 |
US $1,132.77 |
||
| replacement | |||||
|
48210
|
48210
48210-3V451
Spring Assy, Rear Rh
[08.2007 - 08.2012] XZU415,419,425,429,435,439 MAIN 2+HELPER 3-LEAF |
48210-3V451 |
— | ||
|
48210C
|
48210C
90033-84013 Bimetal Formed Bush(For Front Spring)[08.2009 - 08.2012] XZU419,429,439 W(STABILIZER),RH |
90033-84013 |
US $14.16 |
||
|
48210C
|
48210C
90033-84014 Bush(For Rear Spring Leaf)[08.2009 - 08.2012] XZU419,429,439 W(STABILIZER),LH |
90033-84014 |
US $9.90 |
||
|
48211
|
48211
48201-37F70
Leaf, Rear Spring, No.1
[08.2009 - 08.2012] XZU419,429,439 RH |
48201-37F70 |
— | ||
|
48211
|
48211
48201-37F80
Leaf, Rear Spring, No.1
[08.2009 - 08.2012] XZU419,429,439 LH |
48201-37F80 |
— | ||
|
48211
|
48211
48201-3V450 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48201-3V450 |
US $314.50 |
||
| replacement | |||||
|
48211
|
48211
48201-3V451
Leaf, Rear Spring, No.1
[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48201-3V451 |
— | ||
|
48212
|
48212
48202-37F70
Leaf, Rear Spring, No.2
[08.2009 - 08.2012] XZU419,429,439 RH |
48202-37F70 |
— | ||
|
48212
|
48212
48202-37F80
Leaf, Rear Spring, No.2
[08.2009 - 08.2012] XZU419,429,439 LH |
48202-37F80 |
— | ||
|
48212
|
48212
48202-3V450 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48202-3V450 |
US $381.47 |
||
| replacements | |||||
|
48212
|
48212
48202-3V451
New Genuine Part
[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48202-3V451 |
— | ||
|
48212
|
48212
48252-37521 Silencer, Front Spring, No.1[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48252-37521 |
US $12.54 |
||
|
48220
|
48220
48210-37F80
Spring Assy, Rear Lh
[08.2009 - 08.2012] XZU419,429,439 MAIN 2+HELPER 3-LEAF,W(STABILIZER) |
48210-37F80 |
— | ||
|
48220
|
48220
48210-3V450 Spring Assy, Rear RhREAR RH [08.2007 - 08.2012] XZU415,419,425,429,435,439 MAIN 2+HELPER 3-LEAF |
48210-3V450 |
US $1,132.77 |
||
| replacement | |||||
|
48220
|
48220
48210-3V451
Spring Assy, Rear Rh
[08.2007 - 08.2012] XZU415,419,425,429,435,439 MAIN 2+HELPER 3-LEAF |
48210-3V451 |
— | ||
|
48247
|
48247
48247-3V021 Bolt, Rear Spring, Center[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48247-3V021 |
US $19.95 |
||
|
48251
|
48251
48253-3V020 Spacer, Rear Spring Leaf[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48253-3V020 |
US $10.77 |
||
| replacement | |||||
|
48251
|
48251
S4814-E0010 Spacer, Rear Spring Leaf[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
S4814-E0010 |
US $10.77 |
||
|
48251
|
48251
48253-3V470 Spacer, Rear Spring LeafREAR SPRING LEAF [08.2009 - 08.2012] XZU419,429,439 NO.2 |
48253-3V470 |
US $116.48 |
||
|
48252
|
48252
48252-37380 Silencer, Rear Spring[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48252-37380 |
US $9.68 |
||
|
48252B
|
48252B
48252-37670 Silencer, Front Spring, No.1[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48252-37670 |
US $9.68 |
||
|
48253
|
48253
48254-3V080 Spacer, Rear Spring, No.1[08.2009 - 08.2012] XZU419,429,439 W(STABILIZER) |
48254-3V080 |
US $13.69 |
||
|
48254
|
48254
48254-3V070 Spacer, Rear Spring Leaf[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48254-3V070 |
US $13.69 |
||
|
48261
|
48261
48213-37F70
Leaf, Rear Helper Spring, No.1
[08.2009 - 08.2012] XZU419,429,439 RH |
48213-37F70 |
— | ||
|
48261
|
48261
48213-37F80
Leaf, Rear Helper Spring, No.1
[08.2009 - 08.2012] XZU419,429,439 LH |
48213-37F80 |
— | ||
|
48262
|
48262
48214-37F70
Leaf, Rear Helper Spring, No.2
[08.2009 - 08.2012] XZU419,429,439 RH |
48214-37F70 |
— | ||
|
48262
|
48262
48214-37F80
Leaf, Rear Helper Spring, No.2
[08.2009 - 08.2012] XZU419,429,439 LH |
48214-37F80 |
— | ||
|
48263
|
48263
48215-37F70
Leaf, Rear Helper Spring, No.3
[08.2009 - 08.2012] XZU419,429,439 RH |
48215-37F70 |
— | ||
|
48263
|
48263
48215-37F80
Leaf, Rear Helper Spring, No.3
[08.2009 - 08.2012] XZU419,429,439 LH |
48215-37F80 |
— | ||
|
48284
|
48284
48284-3B750 Nut, Rear Spring Center Bolt[08.2007 - 08.2012] XZU415,419,425,429,435,439 |
48284-3B750 |
US $2.04 |
||
|
48807B
|
48807B
48809-37070
Bracket Sub-Assy, Stabilizer, Rh
[08.2009 - 08.2012] XZU419,429,439 |
48809-37070 |
— | ||
|
48809D
|
48809D
48807-37010
Bracket Sub-Assy, Stabilizer, Lh
[08.2009 - 08.2012] XZU419,429,439 |
48807-37010 |
— | ||
