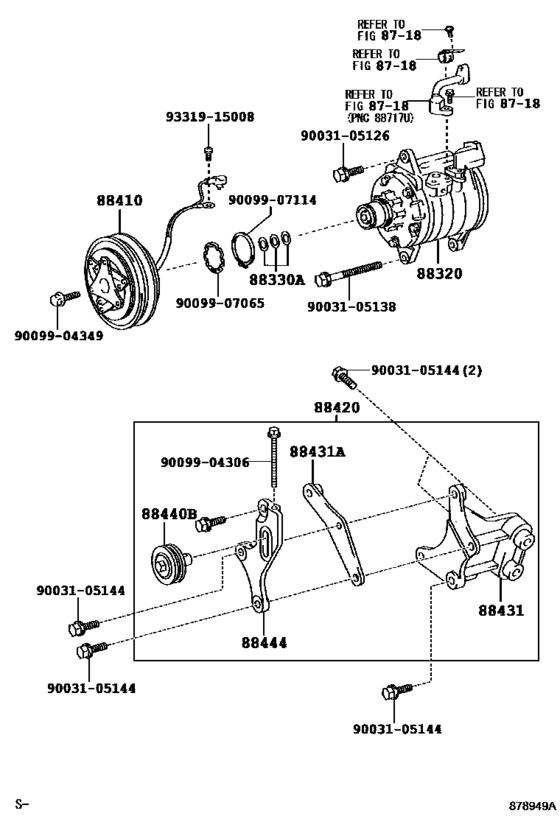

Heating & Air Conditioning - Compressor ([10.2006 - ] (0610- )XZU488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 30T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-37120 Compressor Assy, Cooler[10.2006 -] XZU488 |
88320-37120 |
US $880.88 |
||
|
88330A
|
88330A
88335-14020 Washer[10.2006 - 06.2011] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-37140
Clutch Assy, Magnet
[10.2006 - 08.2009] XZU488 |
88410-37140 |
— | ||
|
88410
|
88410
88410-37141 Clutch Assy, MagnetMAGNET [08.2009 -] XZU488 |
88410-37141 |
US $311.58 |
||
|
88420
|
88420
88420-37240 Pulley Assy, Idle, W/bracket[10.2006 -] XZU488 |
88420-37240 |
US $294.11 |
||
| replacement | |||||
|
88420
|
88420
S8830-51170 Pulley Assy, Idle, W/bracket[10.2006 -] XZU488 |
S8830-51170 |
US $203.84 |
||
|
88431
|
88431
88431-37140 Bracket, Compressor Mounting, No.1[10.2006 -] XZU488 |
88431-37140 |
US $131.04 |
||
| replacement | |||||
|
88431
|
88431
S8834-51630 Bracket, Compressor Mounting, No.1[10.2006 -] XZU488 |
S8834-51630 |
US $94.64 |
||
|
88431A
|
88431A
88431-37150 Bracket, Compressor Mounting, No.2[10.2006 -] XZU488 |
88431-37150 |
US $17.76 |
||
| replacement | |||||
|
88431A
|
88431A
S8830-51180 Bracket, Compressor Mounting, No.2[10.2006 -] XZU488 |
S8830-51180 |
US $11.36 |
||
|
88440B
|
88440B
S8836-01380 Pulley Assy, Idle[10.2006 - 06.2011] XZU488 |
S8836-01380 |
US $59.14 |
||
|
88444
|
88444
88444-37160 Bracket, Idle Pulley[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
88444-37160 |
US $42.51 |
||
|
9003105126
|
9003105126
90031-05126 New Genuine Part |
90031-05126 |
US $4.30 |
||
|
9003105138
|
9003105138
90031-05138 New Genuine Part |
90031-05138 |
US $3.20 |
||
|
9003105144
|
9003105144
90031-05144 Bolt(For Cylinder Head Set) |
90031-05144 |
US $3.58 |
||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
