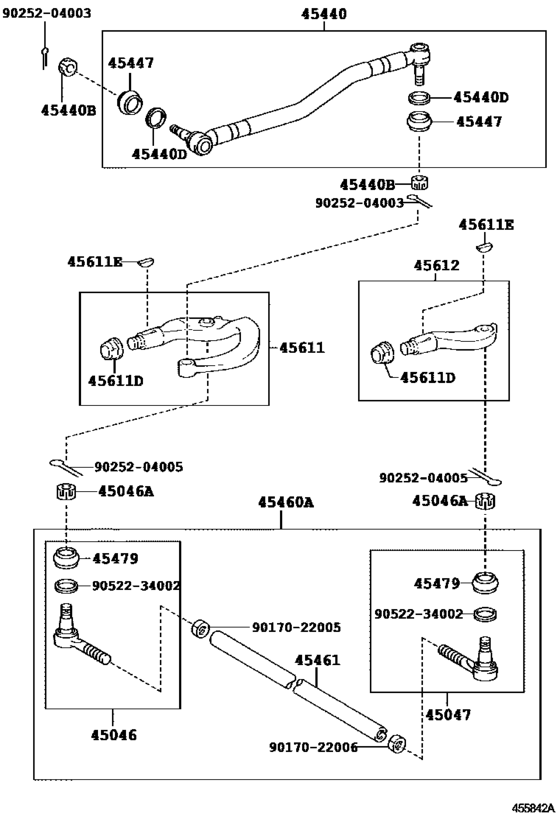

Front Steering Gear & Link ([07.2011 - ] (1107- )BZU600,TRC600,TRU600,XZC600,610,630,X ZU600,610,620,630,640,650) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XZU640
- ENGINE
- N04C
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 5F
- Deck,cab
- T4
- Loading Capacity
- 30T
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-37042 End Sub-Assy, Tie Rod, Rh[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45046-37042 |
US $37.97 |
||
|
45046A
|
45046A
90171-18003 Nut, Castle(For Relay Rod)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
90171-18003 |
from US $1.13 |
||
|
45047
|
45047
45047-37042 End Sub-Assy, Tie Rod, Lh[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45047-37042 |
US $37.97 |
||
|
45440
|
45440
45440-37092 Link Assy, Steering Drag[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45440-37092 |
US $152.52 |
||
|
45440B
|
45440B
90171-18003 Nut, Castle(For Relay Rod)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
90171-18003 |
from US $1.13 |
||
|
45440D
|
45440D
90522-32011 Ring, Set(For Relay Rod)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
90522-32011 |
from US $1.72 |
||
|
45447
|
45447
45479-37040 Seal, Drag Link Dust[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
45479-37040 |
US $13.98 |
||
|
45460A
|
45460A
45460-37062 Rod Assy, Tie[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45460-37062 |
US $164.80 |
||
|
45461
|
45461
45461-37050 Rod, Steering Tie[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45461-37050 |
US $118.08 |
||
|
45479
|
45479
45479-36030 Seal, Dust(For Tie Rod)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
45479-36030 |
from US $6.36 |
||
|
45611
|
45611
45611-39125 Arm, Steering Knuckle, Rh[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45611-39125 |
US $135.41 |
||
|
45611D
|
45611D
90178-26002 Nut(For Steering Knuckle Arm)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
90178-26002 |
US $5.91 |
||
|
45611E
|
45611E
90280-07004 Key, Woodruff(For Steering Idler Arm)[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK, EFI,LPG |
90280-07004 |
US $7.88 |
||
|
45612
|
45612
45612-39245 Arm, Steering Knuckle, Lh[07.2011 -] BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T |
45612-39245 |
US $59.70 |
||
|
9017022005
|
9017022005
90170-22005 Nut(For Steering Tie Rod Lock) |
90170-22005 |
from US $1.54 |
||
|
9017022006
|
9017022006
90170-22006 Nut(For Steering Tie Rod Lock) |
90170-22006 |
US $4.66 |
||
|
9025204003
|
9025204003
90252-04003 PIN |
90252-04003 |
from US $0.18 |
||
|
9025204005
|
9025204005
90252-04005 PIN COTTER |
90252-04005 |
from US $0.76 |
||
|
9052234002
|
9052234002
90522-34002 Ring, Set(For Tie Rod End Dust Seal) |
90522-34002 |
US $1.79 |
