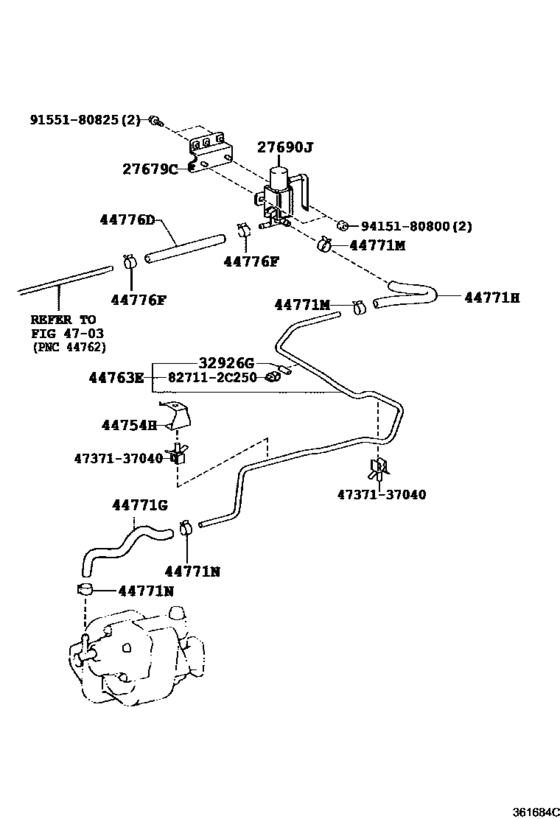

Power Take-Off Case & Gear ([05.2013 - ] ﾊﾞｷｭｰﾑｼｷ(ｿﾞｳｿｸｶﾞﾀ) 21.5KG (1107- )XZU64#..T3..5F..IV3 ; (1107- )XZU6 05..T5..5F..20T..DCRTJ..IV3 ; (1305 - )XZU64#..T4. .5F..30T..IV3) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XZU640
- ENGINE
- N04C
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 5F
- Deck,cab
- T4
- Loading Capacity
- 30T
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27679C
|
27679C
27679-78041 Bracket, Power Take-Off Solenoid[05.2013 - 05.2017] N04C..XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
27679-78041 |
US $9.76 |
||
|
27690J
|
27690J
27690-78080 Solenoid Assy, Power Take-Off[05.2013 - 05.2017] N04C..XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
27690-78080 |
US $180.80 |
||
|
32926G
|
32926G
32926-30030 Cushion, Oil Cooler Tube(Atm)[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
32926-30030 |
US $2.06 |
||
|
44754H
|
44754H
44754-37110 Bracket, Vacuum Tube[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
44754-37110 |
US $5.53 |
||
|
44763E
|
44763E
44763-37A80 Tube, Hose To Hose, No.1[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
44763-37A80 |
US $34.94 |
||
|
44771G
|
44771G
44771-37770 Hose, Vacuum Tube Connector, No.1[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
44771-37770 |
US $9.46 |
||
|
44771H
|
44771H
95446-09300 Hose, Solenoid To Vacuum Tube[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
95446-09300 |
US $11.65 |
||
|
44771M
|
44771M
96133-41500 Clamp Or Clip(For Air Hose, No.5)[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
96133-41500 |
from US $2.32 |
||
|
44771N
|
44771N
96133-41500 Clamp Or Clip(For Air Hose, No.5)[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
96133-41500 |
from US $2.32 |
||
|
44776D
|
44776D
44776-37270 Hose, Vacuum Tube Connector[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
44776-37270 |
US $7.86 |
||
|
44776F
|
44776F
96133-41500 Clamp Or Clip(For Air Hose, No.5)[05.2013 - 05.2017] XZU640..T4..5F..IV3 パワーテイクオフ−増速型 ２１．５ＫＧ |
96133-41500 |
from US $2.32 |
||
|
827112C250
|
827112C250
82711-2C250 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2C250 |
US $2.15 |
||
|
4737137040
|
4737137040
47371-37040 Clamp(For Clutch Tube) |
47371-37040 |
US $5.73 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
