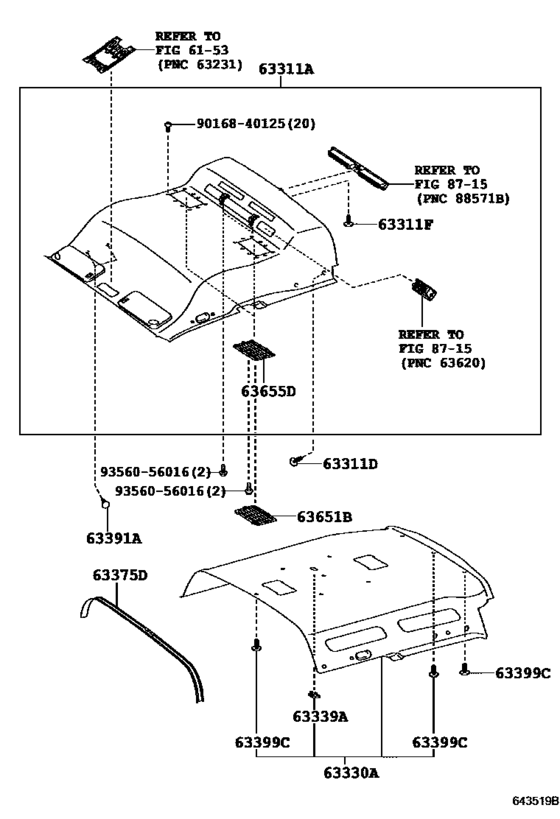

Roof Headlining & Silencer Pad ([09.2007 - ] ｱﾘ(ﾃﾞｭｱﾙ ｴｱｺﾝ) (0709- )KDH20#,TRH200..IV5) Diagram Toyota HIACE
- Year
- 2007 - 2013
- Sales region
- Japan
- Frame
- KDH206
- grade
- DX
- body
- V1
- Roof
- HRF
- ENGINE
- 1KDFTV
- Model
- HIACE/REGIUSACE
- From
- 09.2007
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 06S
- Building Condition
- IV5
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63311A
|
63311A
63310-26B20-B1 Headlining, Roof No.1[08.2004 - 08.2008] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63310-26B20-B1 |
US $1,112.38 |
||
|
63311A
|
63311A
63310-26B21-B1 Headlining, Roof No.1[08.2008 - 12.2013] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63310-26B21-B1 |
US $771.68 |
||
| replacement | |||||
|
63311A
|
63311A
63310-26B22-B1 Headlining, Roof No.1[08.2008 - 12.2013] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63310-26B22-B1 |
US $700.34 |
||
|
63311A
|
63311A
63310-26G30-B0 Headlining, Roof No.1[05.2012 - 12.2013] KDH20#,TRH200..IV5 バックモニタ（リヤテレビジョンカメラ）−有り,LIGHT GRAY,TRIM1# |
63310-26G30-B0 |
US $771.68 |
||
| replacement | |||||
|
63311A
|
63311A
63310-26G31-B0 Headlining, Roof No.1[05.2012 - 12.2013] KDH20#,TRH200..IV5 バックモニタ（リヤテレビジョンカメラ）−有り,LIGHT GRAY,TRIM1# |
63310-26G31-B0 |
US $700.34 |
||
|
63311D
|
63311D
63399-26050-B0 Clip[08.2004 - 12.2013] KDH20#,TRH200..IV5;KDH220,221,225,TRH221,226..06S LT.GRAY,TRIM1#; KDH20#,TRH200..SG..DX..CBU デュアルエアコン,LT.GRAY,TRIM1# |
63399-26050-B0 |
from US $1.15 |
||
|
63311F
|
63311F
63399-26050-B0 Clip[08.2004 - 12.2013] KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229.. HRF,SMRF,SRF LT.GRAY,TRIM1# |
63399-26050-B0 |
from US $1.15 |
||
|
63330A
|
63330A
63320-26341-B0 Headlining Assy, Roof, Rear[09.2007 - 08.2010] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63320-26341-B0 |
US $882.34 |
||
|
63330A
|
63330A
63320-26351-B0 Headlining Assy, Roof, Rear[09.2007 - 08.2010] KDH20#,TRH200..IV5 ルーフサイドウインドウ−有り,LIGHT GRAY,TRIM1# |
63320-26351-B0 |
US $882.34 |
||
|
63330A
|
63330A
63320-26470-B0 Headlining Assy, Roof, Rear[08.2010 - 09.2013] KDH20#,TRH200..IV5 ルーフサイドウインドウ−有り,LIGHT GRAY,TRIM1# |
63320-26470-B0 |
US $735.28 |
||
| replacement | |||||
|
63330A
|
63330A
63320-26470-B1 Headlining Assy, Roof, Rear[08.2010 - 09.2013] KDH20#,TRH200..IV5 ルーフサイドウインドウ−有り,LIGHT GRAY,TRIM1# |
63320-26470-B1 |
US $735.28 |
||
|
63330A
|
63330A
63320-26470-B1 Headlining Assy, Roof, Rear[09.2013 - 12.2013] KDH20#,TRH200..IV5 ルーフサイドウインドウ−有り,LIGHT GRAY,TRIM1# |
63320-26470-B1 |
US $735.28 |
||
|
63330A
|
63330A
63320-26480-B0 Headlining Assy, Roof, Rear[08.2010 - 09.2013] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63320-26480-B0 |
US $735.28 |
||
| replacement | |||||
|
63330A
|
63330A
63320-26480-B1 Headlining Assy, Roof, Rear[08.2010 - 09.2013] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63320-26480-B1 |
US $735.28 |
||
|
63330A
|
63330A
63320-26480-B1 Headlining Assy, Roof, Rear[09.2013 - 12.2013] KDH20#,TRH200..IV5 LIGHT GRAY,TRIM1# |
63320-26480-B1 |
US $735.28 |
||
|
63339A
|
63339A
63339-52020-B0 Cover, Roof Headlining Service Hole[08.2004 - 08.2010] KDH20#,TRH200..IV5 LT.GRAY,TRIM1#; KDH200,205,TRH200..IV5 ルーフサイドウインドウ−有り,LT.GRAY,TRIM1# |
63339-52020-B0 |
US $3.94 |
||
|
63375D
|
63375D
63375-26150-B0 Moulding, Roof Headlining[08.2004 - 07.2011] KDH20#,TRH200..IV5 LT.GRAY,TRIM1# |
63375-26150-B0 |
US $56.35 |
||
| replacement | |||||
|
63375D
|
63375D
63375-26180-B0 Moulding, Roof Headlining[08.2004 - 07.2011] KDH20#,TRH200..IV5 LT.GRAY,TRIM1# |
63375-26180-B0 |
US $42.52 |
||
|
63375D
|
63375D
63375-26180-B0 Moulding, Roof Headlining[08.2011 - 12.2013] KDH20#,TRH200..IV5 LT.GRAY,TRIM1# |
63375-26180-B0 |
US $42.52 |
||
|
63391A
|
63391A
90467-06177-B5 Clip(For Front Pillar Garnish)[08.2004 - 12.2013] KDH20#,22#,TRH200,22#..HRF LT.GRAY,TRIM1#; KDH20#,TRH200..SRF..5D..DX デュアルエアコン,LT.GRAY,TRIM1# |
90467-06177-B5 |
US $0.90 |
||
|
63399C
|
63399C
63399-26050-B0 Clip[10.2004 - 12.2013] KDH20#,TRH200..IV5 LT.GRAY,TRIM1# |
63399-26050-B0 |
from US $1.15 |
||
|
63651B
|
63651B
63650-26010-B0 Net, Air Intake[08.2008 - 12.2013] KDH20#,TRH200..IV5 LT.GRAY,TRIM1#; KDH20#,TRH200..HRF..CBU デュアルエアコン,LT.GRAY,TRIM1# |
63650-26010-B0 |
from US $46.05 |
||
|
63655D
|
63655D
63655-26020-B0 Cover, Air Intake[08.2004 - 08.2008] KDH200,205..SGL;KDH20#,TRH200..IV5 LT.GRAY,TRIM1#; KDH200,205..SG..DX..CBU;KDH201,206,TRH200..HRF..CBU デュアルエアコン,LT.GRAY,TRIM1# |
63655-26020-B0 |
US $37.84 |
||
|
63655D
|
63655D
63655-26090-B0 Cover, Air Intake[08.2008 - 12.2013] KDH20#,TRH200..IV5 LT.GRAY,TRIM1#,右側; KDH20#,TRH200..HRF..4D..CBU 寒冷地仕様＆デュアルエアコン,LT.GRAY,TRIM1#,右側; KDH20#,TRH200..HRF..4D..CBU デュアルエアコン,LT.GRAY,TRIM1#,右側 |
63655-26090-B0 |
US $26.64 |
||
|
63655D
|
63655D
63655-26100-B0 Cover, Air Intake[08.2008 - 12.2013] KDH20#,TRH200..IV5 LT.GRAY,TRIM1#,左側; KDH20#,TRH200..HRF..CBU 寒冷地仕様＆デュアルエアコン,LT.GRAY,TRIM1#,左側; KDH20#,TRH200..HRF..CBU デュアルエアコン,LT.GRAY,TRIM1#,左側 |
63655-26100-B0 |
US $26.64 |
||
|
9016840125
|
9016840125
90168-40125 SCREW TAPPING |
90168-40125 |
US $1.08 |
||
|
9356056016
|
9356056016
93560-56016 SCREW |
93560-56016 |
US $2.15 |
||
