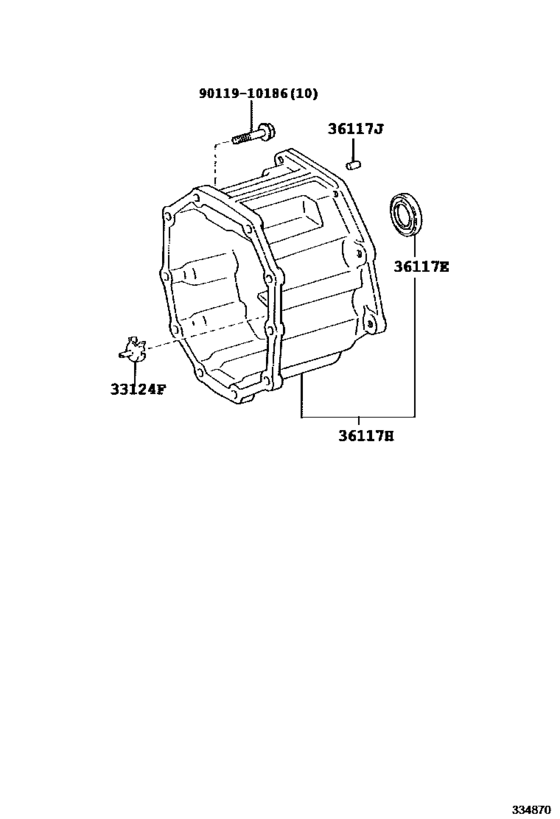

Extension Housing (Mtm) ([12.2013 - ] R351F (1312- )KDH206..5F) Diagram Toyota HIACE
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- KDH206
- grade
- DX
- body
- V1
- Roof
- SRF
- ENGINE
- 1KDFTV
- Model
- HIACE/REGIUSACE
- From
- 12.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 03S
- Building Condition
- CBU
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33124F
|
33124F
33124-35100 Pipe, Oil Receiver(For Transfer)[12.2013 -] KDH206..5F;KDH201..SRF..5F;KDH201..V2..HRF..5F |
33124-35100 |
from US $5.91 |
||
|
36117E
|
36117E
90310-40004 Seal, Oil(For Transfer Adapter)[12.2013 -] KDH206..5F |
90310-40004 |
US $4.84 |
||
|
36117H
|
36117H
36107-26031 Adapter Sub-Assy, Transfer[12.2013 -] KDH206..5F |
36107-26031 |
US $185.86 |
||
|
36117J
|
36117J
90250-10214 Pin, Straight(For End Plate)[12.2013 -] KDH206..5F |
90250-10214 |
from US $1.38 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
