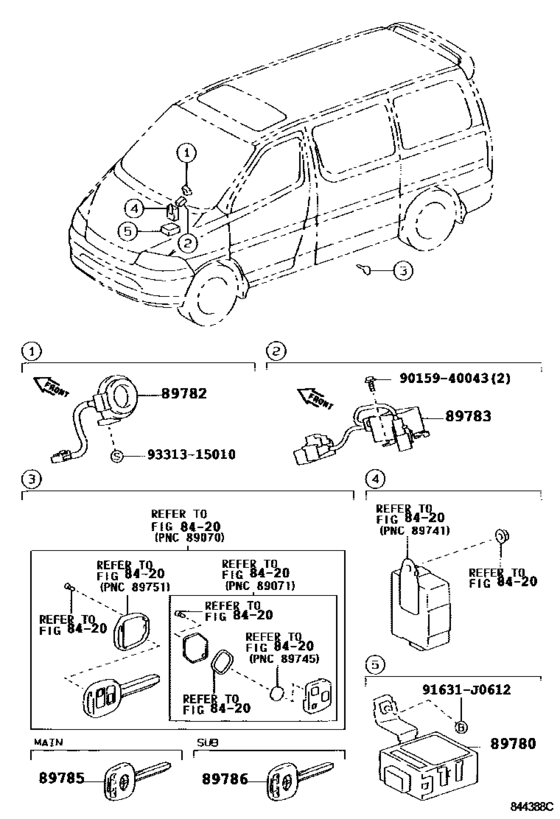

Anti-Theft Device ([08.2001 - ] (0108- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89780
|
89780
89780-26090
Computer Assy, Transponder Key
[08.2001 - 08.2006] KLH12,22..RHD |
89780-26090 |
— | ||
|
89780
|
89780
89780-26130
Computer Assy, Transponder Key
[08.2006 - 08.2008] KLH12,22..RHD |
89780-26130 |
— | ||
| replacement | |||||
|
89780
|
89780
89780-26131
Computer Assy, Transponder Key
[08.2006 - 08.2008] KLH12,22..RHD |
89780-26131 |
— | ||
|
89780
|
89780
89780-26131
Computer Assy, Transponder Key
[08.2008 -] KLH12,22..RHD |
89780-26131 |
— | ||
|
89782
|
89782
89782-26010
Coil, Transponder Key
[07.1999 - 08.2006] KLH1#,2# |
89782-26010 |
— | ||
|
89783
|
89783
89783-26010
Amplifier, Transponder Key
[07.1999 - 08.2006] KLH1#,2# |
89783-26010 |
— | ||
|
89785
|
89785
89785-26020 Transmitter, Transponder Key MasterЧИП [07.1999 - 08.2006] KLH1#,2# |
89785-26020 |
from US $43.82 |
||
|
89786
|
89786
89786-60050 Transmitter, Transponder Key Sub[08.2001 - 08.2006] KLH1#,2# |
89786-60050 |
from US $43.74 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9015940043
|
9015940043
90159-40043 New Genuine Part |
90159-40043 |
US $2.62 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
