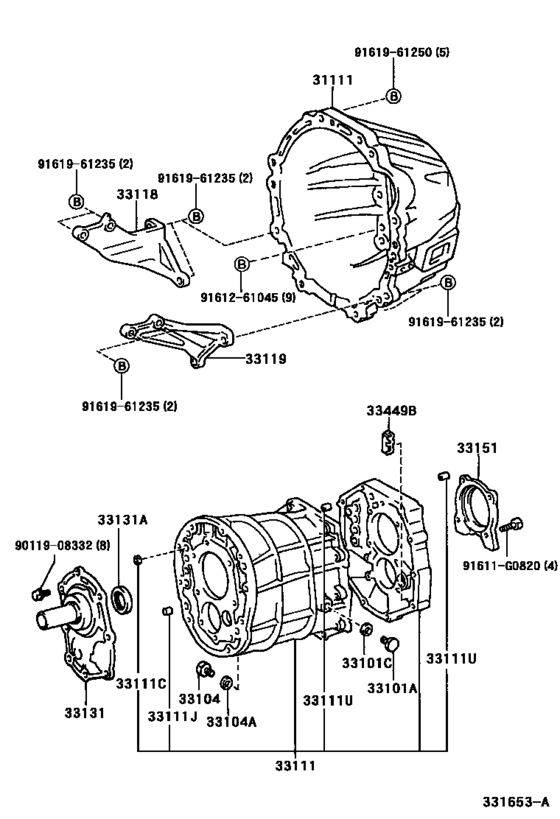

Clutch Housing & Transmission Case (Mtm) ([08.2006 - ] R151 (0108-0608)KLH12,22..MTM..HDCR ; (0608- )KLH1 2,22) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-35101
Housing, Clutch
[08.2001 - 08.2006] KLH12,22..MTM..HDCR |
31111-35101 |
— | ||
| replacement | |||||
|
31111
|
31111
31111-35102 Housing, Clutch[08.2001 - 08.2006] KLH12,22..MTM..HDCR |
31111-35102 |
US $288.29 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[07.1999 - 08.2006] KLH1#,2#..MTM |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[07.1999 - 08.2006] KLH1#,2#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.1999 - 08.2006] KLH1#,2#..MTM |
90430-T0021 |
US $1.01 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[07.1999 - 08.2006] KLH1#,2#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.1999 - 08.2006] KLH1#,2#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-35100 Case, Manual Transmission[07.1999 - 02.2002] KLH1#,2#,RCH19,29..MTM..(EFI,HDCR) |
33101-35100 |
US $678.50 |
||
| replacement | |||||
|
33111
|
33111
33101-60041 Case, Manual TransmissionMANUAL TRANSMISSION [07.1999 - 02.2002] KLH1#,2#,RCH19,29..MTM..(EFI,HDCR) |
33101-60041 |
from US $470.29 |
||
|
33111
|
33111
33101-60040
Case, Manual Transmission
[02.2002 - 08.2006] KLH1#,2#..MTM..HDCR |
33101-60040 |
— | ||
| replacement | |||||
|
33111
|
33111
33101-60041 Case, Manual TransmissionMANUAL TRANSMISSION [02.2002 - 08.2006] KLH1#,2#..MTM..HDCR |
33101-60041 |
from US $470.29 |
||
|
33111
|
33111
33101-60041 Case, Manual TransmissionMANUAL TRANSMISSION [09.2011 - 11.2011] KLH1#,2# |
33101-60041 |
from US $470.29 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR OD=14 |
90331-14004 |
US $4.68 |
||
|
33111C
|
33111C
96411-41800 Plug, Tight, No.1[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR OD=18 |
96411-41800 |
from US $1.66 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR L=16,OD=12 |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR L=14,OD=15 |
90253-15001 |
from US $1.07 |
||
|
33118
|
33118
33118-35070 Plate, Stiffener, Rh(Mtm)[08.2001 - 08.2006] KLH12,22..MTM |
33118-35070 |
US $63.92 |
||
|
33119
|
33119
33119-25070 Plate, Stiffener, Lh(Mtm)[08.2001 - 08.2006] KLH12,22..MTM |
33119-25070 |
US $55.18 |
||
|
33131
|
33131
33131-35031
Retainer, Bearing, Front(Mtm)
[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
33131-35031 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-35032 RETAINER BEARING[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
33131-35032 |
from US $55.27 |
||
|
33131A
|
33131A
90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
90311-32012 |
from US $6.27 |
||
|
33131A
|
33131A
90311-32022 Seal, Oil(For Transmission Front Bearing Retainer)[06.2007 -] KLH1#,2# |
90311-32022 |
from US $6.27 |
||
|
33151
|
33151
33151-35020 Retainer, Output Shaft Rear Bearing(Mtm)[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
33151-35020 |
from US $23.52 |
||
|
33449B
|
33449B
33449-35030 Magnet, Transmission[07.1999 - 08.2006] KLH1#,2#..MTM..HDCR |
33449-35030 |
US $2.97 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.20 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
