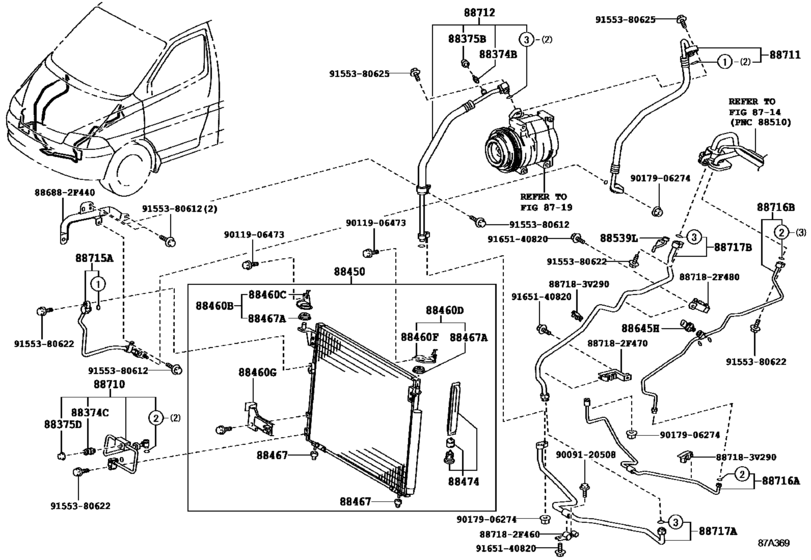

Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )RHD) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[08.2008 -] KLH1#,2# |
88374-30010 |
from US $3.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[08.2008 -] KLH1#,2# |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[07.1999 - 08.2006] KLH1#,2# |
88375-30290 |
from US $0.88 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.2008 -] KLH1#,2# |
88375-30280 |
from US $0.98 |
||
|
88450
|
88450
88450-26140
Condenser Assy, W/receiver
[08.2008 -] KLH1#,2# |
88450-26140 |
— | ||
|
88460B
|
88460B
88688-26470
Bracket, Cooler Condenser, No.1
[07.1999 - 08.2006] KLH1#,2# |
88688-26470 |
— | ||
|
88460B
|
88460B
88688-2F470
Bracket, Cooler Condenser, No.1
[08.2008 -] KLH1#,2# |
88688-2F470 |
— | ||
|
88460C
|
88460C
88688-26480
Bracket, Cooler Condenser, No.2
[07.1999 - 08.2006] KLH1#,2# |
88688-26480 |
— | ||
|
88460C
|
88460C
88688-2F500
Bracket, Cooler Condenser, No.2
[08.2008 -] KLH1#,2# |
88688-2F500 |
— | ||
|
88460D
|
88460D
88688-26490
Bracket, Cooler Condenser, No.3
[07.1999 - 08.2006] KLH1#,2# |
88688-26490 |
— | ||
|
88460D
|
88460D
88688-2F480
Bracket, Cooler Condenser, No.3
[08.2008 -] KLH1#,2# |
88688-2F480 |
— | ||
|
88460F
|
88460F
88688-2F490
Bracket, Cooler Condenser, No.4
[08.2008 -] KLH1#,2# |
88688-2F490 |
— | ||
|
88460G
|
88460G
88688-2F510
Bracket, Cooler Condenser, No.5
[08.2008 -] KLH1#,2# |
88688-2F510 |
— | ||
|
88467
|
88467
88467-28040 Cushion, Cooler Condenser, No.1[08.2008 -] KLH1#,2# |
88467-28040 |
from US $3.32 |
||
|
88467
|
88467
88467-95704 Cushion, Cooler Condenser, No.1[07.1999 - 08.2006] KLH1#,2# |
88467-95704 |
US $3.72 |
||
|
88467A
|
88467A
88467-28040 Cushion, Cooler Condenser, No.1[08.2001 - 08.2006] KLH1#,2# |
88467-28040 |
from US $3.32 |
||
|
88467A
|
88467A
88467-33030
Cushion, Cooler Condenser, No.1
[08.2008 -] KLH1#,2# |
88467-33030 |
— | ||
|
88474
|
88474
88474-17010 Dryer, Cooler[08.2008 -] KLH1#,2# |
88474-17010 |
from US $65.40 |
||
|
88539L
|
88539L
88539-26310
Hose, Drain Cooler
[07.1999 - 08.2006] KLH12,22..RHD |
88539-26310 |
— | ||
|
88645H
|
88645H
88645-34010 Switch, Pressure[07.1999 - 08.2006] KLH1#,2# |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[07.1999 - 08.2006] KLH1#,2# |
88645-04040 |
US $120.41 |
||
|
88710
|
88710
88710-26470
Tube Assy, Air Conditioner
[08.2006 - 08.2008] KLH12,22..RHD |
88710-26470 |
— | ||
|
88710
|
88710
88710-2N180
Tube Assy, Air Conditioner
[08.2008 -] KLH1#,2# |
88710-2N180 |
— | ||
|
88711
|
88711
88711-2F110 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [08.2001 - 08.2006] KLH1#,2# |
88711-2F110 |
from US $123.76 |
||
|
88711
|
88711
88711-2F290
Hose, Cooler Refrigerant Discharge, No.1
[08.2006 - 08.2008] KLH1#,2# |
88711-2F290 |
— | ||
|
88711
|
88711
88711-2F300
Hose, Cooler Refrigerant Discharge, No.1
[08.2008 -] KLH1#,2# |
88711-2F300 |
— | ||
|
88712
|
88712
88712-2F100 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.2001 - 08.2006] KLH12,22..RHD |
88712-2F100 |
US $221.31 |
||
|
88712
|
88712
88712-2F310
Hose, Cooler Refrigerant Suction, No.1
[08.2006 - 08.2008] KLH12,22..RHD |
88712-2F310 |
— | ||
|
88712
|
88712
88712-2F330
Hose, Cooler Refrigerant Suction, No.1
[08.2008 -] KLH12,22..RHD |
88712-2F330 |
— | ||
|
88715A
|
88715A
88715-26480
Pipe, Cooler Refrigerant Discharge, A
[08.2008 -] KLH1#,2# |
88715-26480 |
— | ||
|
88716A
|
88716A
88716-26670
Pipe, Cooler Refrigerant Liquid, A
[07.1999 - 08.2006] KLH12,22..RHD |
88716-26670 |
— | ||
|
88716A
|
88716A
88716-2N270
Pipe, Cooler Refrigerant Liquid, A
[08.2008 -] KLH12,22..RHD |
88716-2N270 |
— | ||
|
88716B
|
88716B
88716-2F100 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [07.1999 - 08.2006] KLH12,22..RHD |
88716-2F100 |
US $74.26 |
||
|
88716B
|
88716B
88716-2N280
Pipe, Cooler Refrigerant Liquid, B
[08.2008 -] KLH12,22..RHD |
88716-2N280 |
— | ||
|
88717A
|
88717A
88717-26490
Pipe, Cooler Refrigerant Suction, B
[08.2001 - 08.2006] KLH12,22..RHD |
88717-26490 |
— | ||
|
88717A
|
88717A
88717-2F780
Pipe, Cooler Refrigerant Suction, A
[08.2006 - 08.2008] KLH12,22..RHD |
88717-2F780 |
— | ||
|
88717A
|
88717A
88717-2F790
Pipe, Cooler Refrigerant Suction, A
[08.2008 -] KLH12,22..RHD |
88717-2F790 |
— | ||
|
88717B
|
88717B
88717-2F800
Pipe, Cooler Refrigerant Suction, B
[08.2008 -] KLH12,22..RHD |
88717-2F800 |
— | ||
|
886882F440
|
886882F440
88688-2F440
Bracket, Cooler Diaphragm
|
88688-2F440 |
— | ||
|
887182F460
|
887182F460
88718-2F460
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2F460 |
— | ||
|
887182F470
|
887182F470
88718-2F470
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2F470 |
— | ||
|
887182F480
|
887182F480
88718-2F480
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2F480 |
— | ||
|
887183V290
|
887183V290
88718-3V290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-3V290 |
— | ||
|
9009120508
|
9009120508
90091-20508
New Genuine Part
|
90091-20508 |
— | ||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
from US $0.68 |
||
|
9155380625
|
9155380625
91553-80625 New Genuine Part |
91553-80625 |
US $1.08 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
