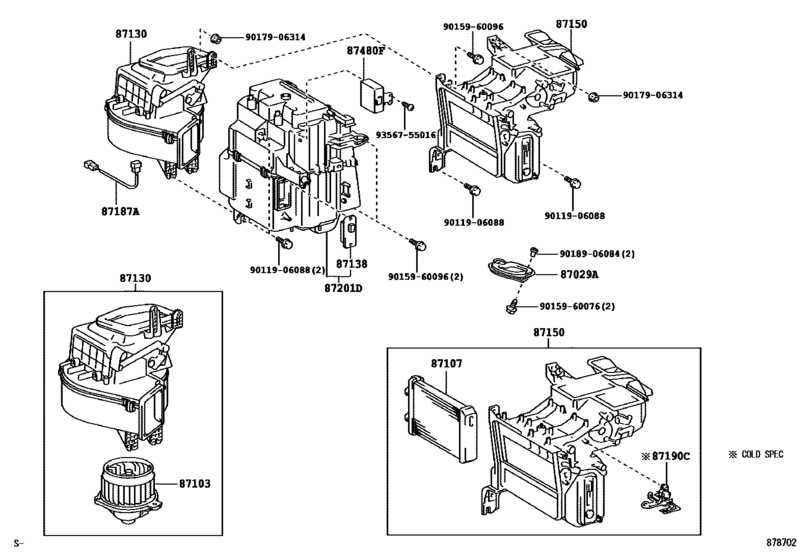

Heating & Air Conditioning - Heater Unit & Blower ([08.2006 - ] FRONT (0608- )RHD) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87029A
|
87029A
87029-26050 Cover Sub-Assy, Heater Inlet Hole[07.1999 - 08.2006] KLH1#,2# |
87029-26050 |
US $19.22 |
||
|
87103
|
87103
87103-33031
Motor Sub-Assy, Heater Blower, W/fan
[07.1999 - 08.2006] KLH12,22..RHD |
87103-33031 |
— | ||
|
87107
|
87107
87107-26010 Unit Sub-Assy, Heater Radiator[07.1999 - 08.2006] KLH1#,2# |
87107-26010 |
US $276.06 |
||
|
87130
|
87130
87130-26030
Blower Assy, Heater, Front
[07.1999 - 08.2006] KLH12,22..RHD |
87130-26030 |
— | ||
|
87138
|
87138
87138-26050
Resistor, Heater Blower
[07.1999 - 08.2006] KLH12,22..RHD |
87138-26050 |
— | ||
|
87150
|
87150
87150-26111
Radiator Assy, Heater
[07.1999 - 08.2006] KLH12,22..RHD |
87150-26111 |
— | ||
|
87150
|
87150
87150-26380
Radiator Assy, Heater
[08.2001 - 08.2006] KLH12,22..RHD COLD SPEC |
87150-26380 |
— | ||
|
87187A
|
87187A
87187-26060
Wire, Blower Motor Lead
[07.1999 - 08.2006] KLH1#,2# |
87187-26060 |
— | ||
|
87190C
|
87190C
87190-26011
Switch Assy, Temperature Control
[08.2001 - 08.2006] KLH12,22..RHD |
87190-26011 |
— | ||
|
87201D
|
87201D
87201-26010
Duct Sub-Assy, Air
[07.1999 - 08.2006] KLH12,22..RHD |
87201-26010 |
— | ||
|
87201D
|
87201D
87201-26011
Duct Sub-Assy, Air
[08.2008 -] KLH12,22..RHD |
87201-26011 |
— | ||
|
87480F
|
87480F
87480-26010
Amplifier Assy, Heater
[08.2006 -] KLH1#,2# |
87480-26010 |
— | ||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9015960076
|
9015960076
90159-60076 SCREW, W/WASHER TAPP |
90159-60076 |
US $3.94 |
||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $1.51 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.97 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
